Engine Undershield - 2.0L EcoBoost (184kW/250PS) - MI4
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
-

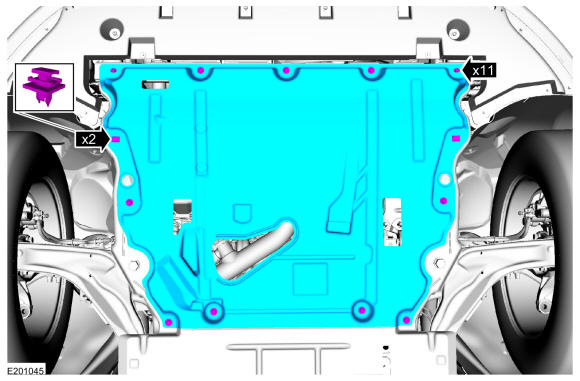

NOTE: FWD shown, AWD similar.
Remove the bolts, grommets and the engine undershield.
Torque
: 13 lb.in (1.5 Nm)
