Halfshaft Seal RH - AWD: Installation
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- Install a new halfshaft seal on the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-718 Installer, Axle Seal.

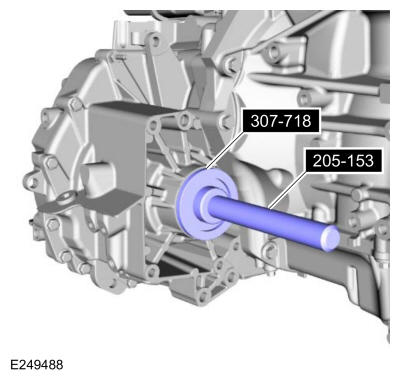

- Using the special tools, install the RH halfshaft seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-718 Installer, Axle Seal.
- Install the transfer case assembly. Refer to: Halfshaft Seal RH - AWD .
- Check the transmission fluid level. Refer to: Transmission Fluid Level Check .
