Rear Halfshaft: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The halfshaft seal has to be replaced whenever the halfshaft is removed.

Replace the rear halfshaft seal. Refer to: Rear Halfshaft Seal .
Install the new rear halfshaft retaining circlip.

Courtesy of FORD MOTOR COMPANY
If equipped, replace the rear halfshaft slinger if damaged.

Courtesy of FORD MOTOR COMPANY
NOTE: When seated correctly, the halfshaft retainer circlip can be felt as it snaps into the differential side gear groove.

NOTE: After insertion, pull the halfshaft inner end to make sure the circlip is locked.

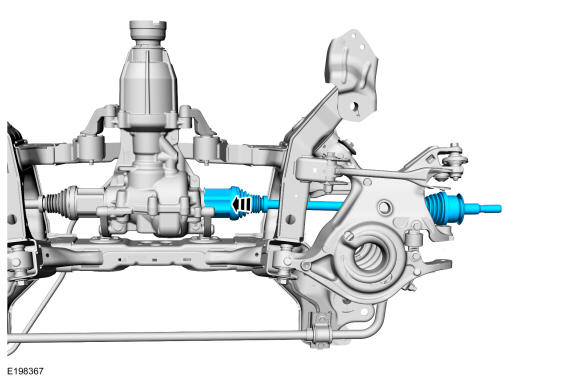

Install the rear halfshaft.

Courtesy of FORD MOTOR COMPANY
Check and top off the differential fluid. Refer to: Differential Fluid Level Check .
Install the wheel knuckle. Refer to: Wheel Knuckle - AWD .
