Differential Fluid Level Check
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
Materials
| Name | Specification |
|---|---|
| Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant XY-80W90-QL | WSP-M2C197-A |
Check
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

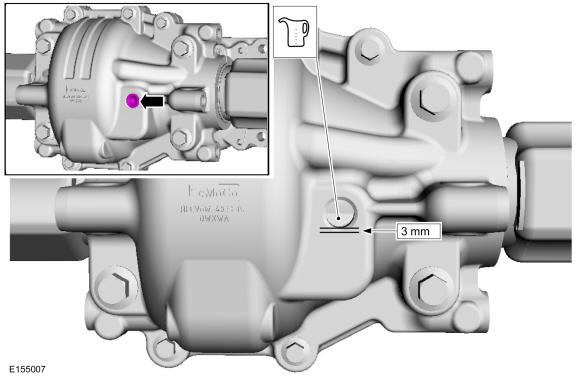

- Remove the filler plug. If empty, fill the rear axle with 0.55L (1.15 pt) of rear axle lubricant. If fluid level is low, fill to 3-5 mm (0.118-0.196 in) below the bottom of the filler hole and install the filler plug.
Material: Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant / XY-80W90-QL (WSP-M2C197-A)
Torque: 21 lb.ft (29 Nm)
