Rear Halfshaft Seal: Installation
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

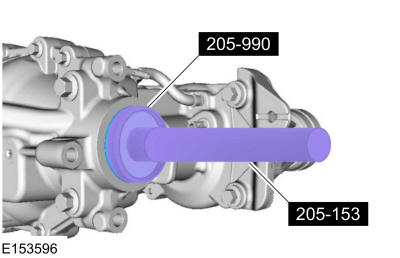

- Using the special tools, install the rear halfshaft seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-990 Installer, Axle Seal.
- Install the rear halfshaft. Refer to: Rear Halfshaft .
- Check the differential fluid level. Refer to: Differential Fluid Level Check .
