Wheel Knuckle - AWD: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

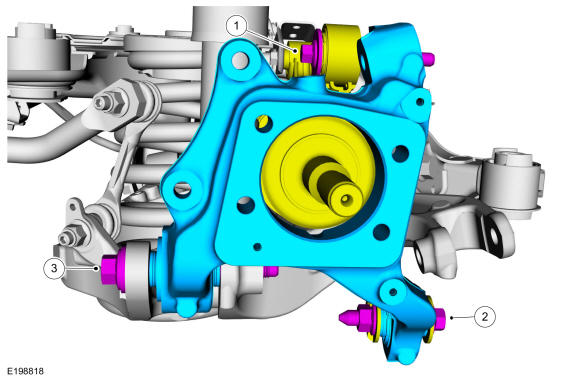

1. Position the wheel knuckle and install the new upper arm-to-wheel knuckle bolt and nut.
  Torque: 76 lb.ft (103 Nm)
2. Install the new toe link-to-wheel knuckle bolt.
  Torque: 129 lb.ft (175 Nm)
3. Install the new lower arm-to-wheel knuckle bolt.
  Torque: 203 lb.ft (275 Nm)
Courtesy of FORD MOTOR COMPANY
Install the lower arm vertical link. Refer to: Lower Arm Vertical Link .

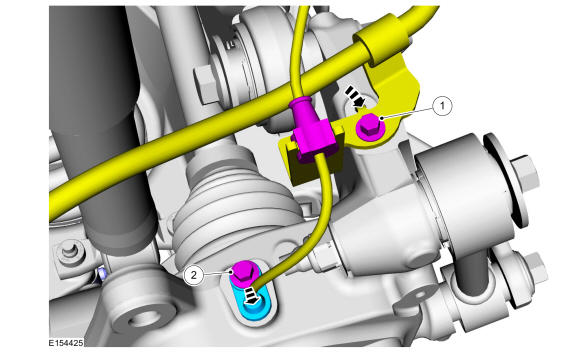

1. Position the brake hose bracket and install the bolt.
  Torque: 124 lb.in (14 Nm)
2. Install the wheel speed sensor and the wheel speed sensor bolt.
  Torque: 80 lb.in (9 Nm)
Courtesy of FORD MOTOR COMPANY
Install the wheel bearing and wheel hub. Refer to: Wheel Bearing and Wheel Hub - AWD .
Check and if necessary adjust rear toe. Refer to: Rear Toe Adjustment .
