Rear Toe Adjustment

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Special Tool(s) / General Equipment

Wheel Alignment System

Adjustment

NOTE: Do not use any tools or equipment to move the wheel and tire assembly or suspension components while checking for relative movement. Suspension damage may occur. The use of tools or equipment will also create relative movement that may not exist when using hand force. Relative movement must be measured using hand force only.

Using alignment equipment and the manufacturer's instructions, check the rear toe setting on both sides. Use the General Equipment: Wheel Alignment System

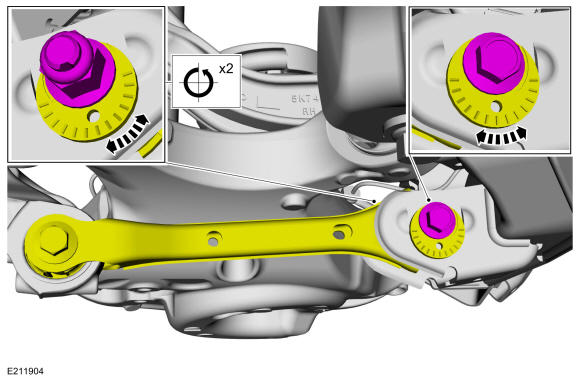

Loosen the cam bolt nut counterclockwise (CCW) through 2 complete turns and turn the cam bolt to adjust the rear toe as necessary.
Torque: 129 lb.ft (175 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped with Lane Departure Warning (LDW) System, camera alignment is required for the lane keeping alert and lane keeping aid to function correctly.

Connect the scan tool and perform the IPMA camera alignment procedure. Follow the scan tool directions.
