Toe Link: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

NOTE: Align reference marks made during removal.

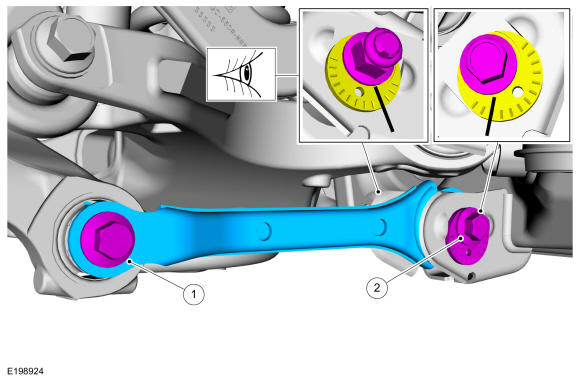

1. Install the toe link and install the new outboard toe link bolt.
  Torque: 129 lb.ft (175 Nm)
2. Install the new toe link inboard cam bolt and nut.
  Torque: 129 lb.ft (175 Nm)
Courtesy of FORD MOTOR COMPANY
Install the wheel and tire. Refer to: Wheel and Tire .
Check and if necessary adjust rear toe. Refer to: Rear Toe Adjustment .
