Oil Pan: Installation

2WD/4WD

1. NOTE: If the oil pan is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned with metal surface prep. Allow to dry until there is no sign of wetness, or 10 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

   Apply a 3 mm bead of silicone sealant.

   Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

   Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

   Courtesy of FORD MOTOR COMPANY

2. Install the oil pan and the bolts finger-tight.

   Courtesy of FORD MOTOR COMPANY

3. NOTE: The engine front cover-to-oil pan fasteners must be tightened first to align the front surface of the oil pan flush with the front surface of the engine block.

   Install the engine front cover-to-oil pan bolts.

   Torque: 89 lb.in (10 Nm)

   Courtesy of FORD MOTOR COMPANY

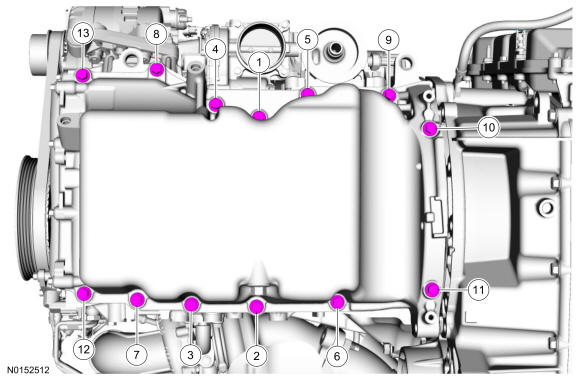

4. Tighten the bolts in sequence shown.

   Torque: 18 lb.ft (25 Nm)

   Fig 1: Oil Pan Tightening Sequence

   Courtesy of FORD MOTOR COMPANY
5. Alternate tightening the LH bellhousing-to-engine and RH engine-to-bellhousing lower bolts to draw the transaxle and engine together.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

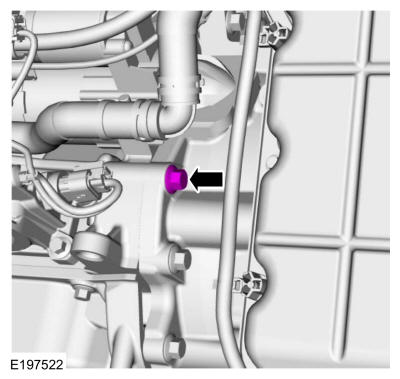

6. Tighten the engine-to-transmission bolt.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

7. Install the oil pan-to-transmission bolt.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

8. Install the oil pan bolts.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

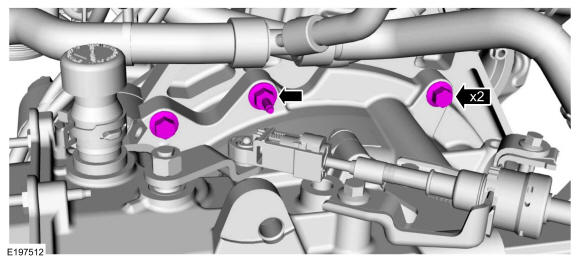

9. Tighten the transmission-to-engine bolts.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

   4WD

10. Install the transfer case. Refer to: Transfer Case .

    2WD/4WD

11. Lubricate the oil filter seal with clean engine oil and install.

    Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 180 deg.

    Courtesy of FORD MOTOR COMPANY

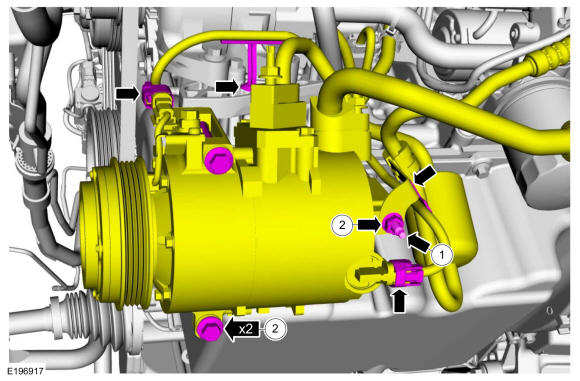

12. 1. Position the A/C compressor and install the stud.

       Torque: 80 lb.in (9 Nm)

    2. Install the A/C compressor bolts and nut.

       Torque: 18 lb.ft (25 Nm)

    • Connect the electrical connectors and wiring retainer.

    Courtesy of FORD MOTOR COMPANY

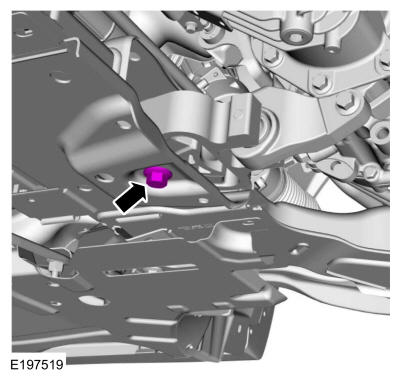

13. Install the new engine roll restrictor bolt.

    Torque: 111 lb.ft (150 Nm)

    Courtesy of FORD MOTOR COMPANY

14. 1. Install the catalytic converter support bracket bolts.

       Torque: 18 lb.ft (25 Nm)

    2. Tighten the catalytic converter support bracket bolt.

       Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

15. 1. Install the CAC inlet tube and the nuts.

       Torque: 97 lb.in (11 Nm)

    2. Tighten the clamp.

       Torque: 44 lb.in (5 Nm)

    Courtesy of FORD MOTOR COMPANY

16. Tighten the CAC inlet tube clamp.

    Torque: 44 lb.in (5 Nm)

    Courtesy of FORD MOTOR COMPANY

17. Install the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .

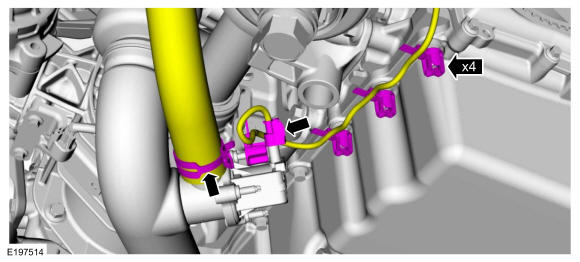

18. Connect the CAC hose, electrical connector and the wire retainers. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

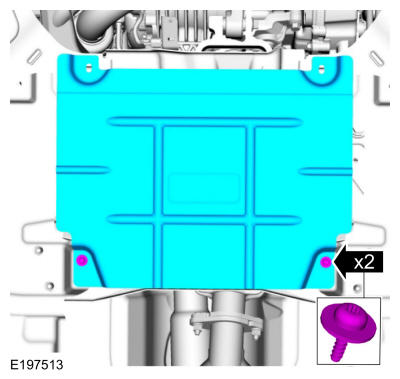

19. Install the underbody shield and the retainers.

    Courtesy of FORD MOTOR COMPANY

20. Install the underbody shield and the retainers.

    Courtesy of FORD MOTOR COMPANY

21. Tighten the transmission-to-engine bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

22. Attach the wiring harness retainer to the transmission-to-engine stud bolt.

    Courtesy of FORD MOTOR COMPANY

23. Install the following items:
    1. Refer to: Air Cleaner .
    2. Refer to: Air Cleaner Outlet Pipe .

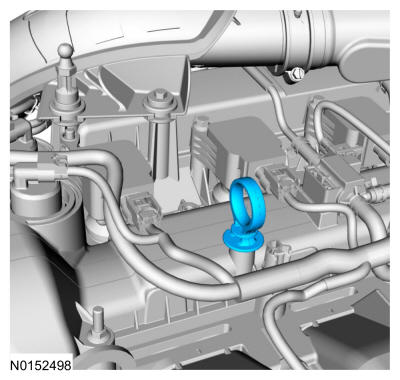

24. Install the oil indicator.

    Courtesy of FORD MOTOR COMPANY

25. 1. NOTE: Lubricating the grommets with silicone grease will aid in the installation of the engine appearance cover, and any future removal and installation of the cover.

       Lubricate each grommet with silicone grease.

       Material: Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

    2. Position the engine appearance cover onto engine with the grommets aligned with the studs.
    3. Press down on the engine appearance cover at each grommet location to attach the grommets onto the studs.

    Courtesy of FORD MOTOR COMPANY

26. Fill the engine with clean engine oil. Refer to: Specifications .

    Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

Courtesy of FORD MOTOR COMPANY
