Section 131 (ENGINE - 2.0L ECOBOOST (184kW/250PS) - MI4): Installation: Engine

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	300-OTC1819E2, 200# Floor Crane, Fold Away
Courtesy of FORD MOTOR COMPANY	303-050 (T70P-6000) Lifting Bracket, Engine
Courtesy of FORD MOTOR COMPANY	307-566 Retainer, Torque Converter TKIT-2006C-FFMFLM TKIT-2006C-LM TKIT-2006C-ROW
Magnetic Socket
Adjustable Mounting Arm
Hose Clamp Remover/Installer

Materials

2WD/4WD

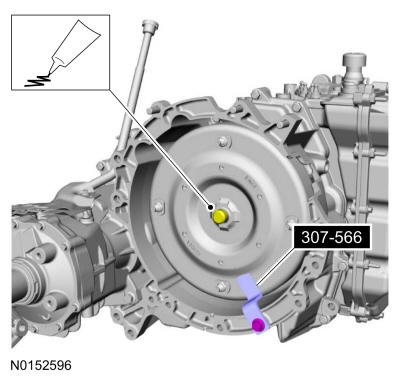

1. Lubricate the torque converter hub with multi-purpose grease. Use Special Service Tool: 307-566 Retainer, Torque Converter.

   Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

   Courtesy of FORD MOTOR COMPANY

2. Inspect the engine block dowels. If the dowels are damaged or missing, install new engine block dowels.

   Courtesy of FORD MOTOR COMPANY

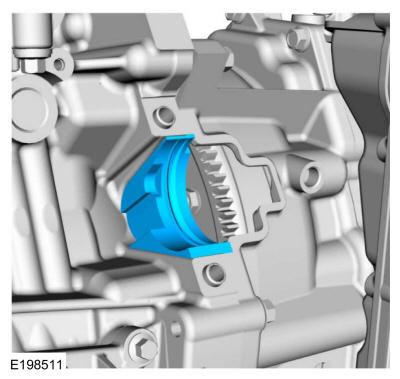

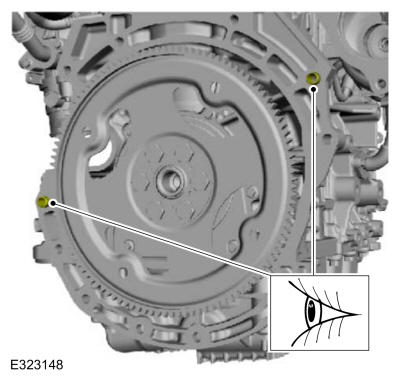

3. Align the torque converter stud marked during removal with the flexplate.

   Courtesy of FORD MOTOR COMPANY

4. Install the bolts.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

5. Install. Use the General Equipment: Adjustable Mounting Arm

   Courtesy of FORD MOTOR COMPANY

6. Remove the engine lift equipment. Use Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.

   Courtesy of FORD MOTOR COMPANY

7. If necessary. Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

   Courtesy of FORD MOTOR COMPANY

8. If necessary. Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

   Courtesy of FORD MOTOR COMPANY

9. NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.
   1. Install the turbocharger inlet pipe, engine appearance cover stud and tighten clamp and stud.

      Torque: 44 lb.in (5 Nm)

   2. Install the turbocharger inlet pipe bolt.

      Torque: 97 lb.in (11 Nm)

   Courtesy of FORD MOTOR COMPANY

   2WD

10. Install the engine-to-transmission bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

11. Install the halfshaft support bracket bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

    4WD

12. Install the engine-to-transmission bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

13. Install the new transfer case to transmission compression seal.

    Courtesy of FORD MOTOR COMPANY

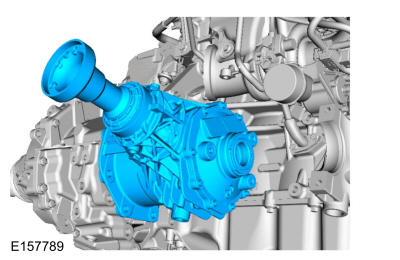

14. Install the transfer case.

    Courtesy of FORD MOTOR COMPANY

15. Install new transfer case bolts.

    Torque: 59 lb.ft (80 Nm)

    Courtesy of FORD MOTOR COMPANY

16. 1. Install the transfer case support bracket and the bolts.

       Torque: 18 lb.ft (25 Nm)

    2. Install the transfer case support bracket-to-engine bolt.

       Torque: 46 lb.ft (63 Nm)

    Courtesy of FORD MOTOR COMPANY

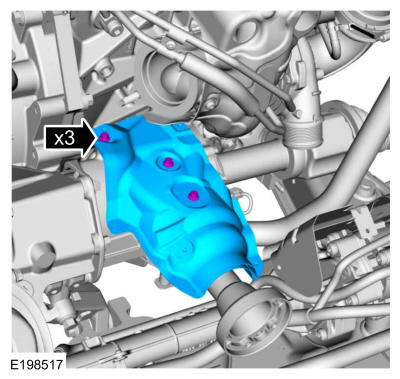

17. Install the transfer case heat shield and the bolts.

    Torque: 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

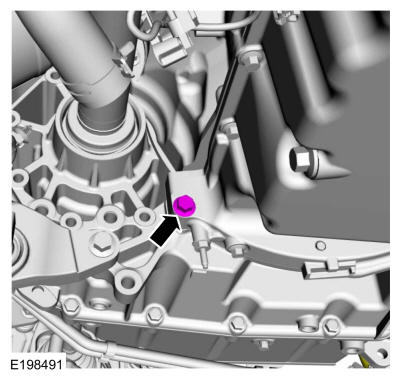

18. Attach transfer case vent hose retainer to the engine block.

    Courtesy of FORD MOTOR COMPANY

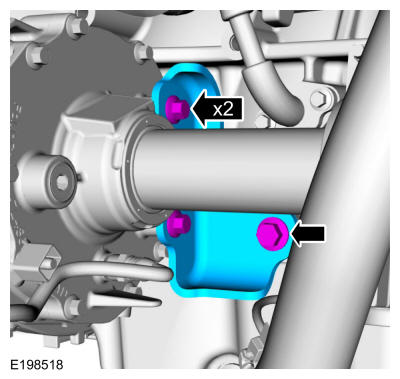

19. Install the halfshaft support bracket and the bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

    2WD/4WD

20. Position the harness and attach the generator wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

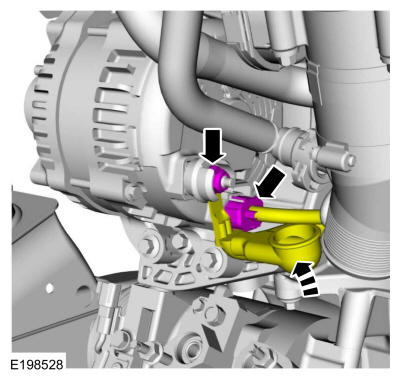

21. • Connect the generator electrical connector.
    • Install the B+ cable, nut and position the cover.

      Torque: 150 lb.in (17 Nm)

    Courtesy of FORD MOTOR COMPANY

22. Attach the wiring harness retainer to the transmission stud bolt.

    Courtesy of FORD MOTOR COMPANY

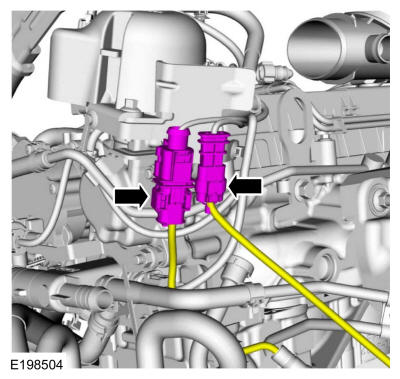

23. Connect the electrical connectors and wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

24. NOTE: Only rotate the crankshaft in a clockwise direction.

    Install the torque converter nuts. Use the General Equipment: Magnetic Socket

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

25. Install the stater motor isolator.

    Courtesy of FORD MOTOR COMPANY

26. 1. Install the battery cable and install the nut.

       Torque: 106 lb.in (12 Nm)

    2. Install the nut.

       Torque: 53 lb.in (6 Nm)

    Courtesy of FORD MOTOR COMPANY

27. Install the starter and the stud bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

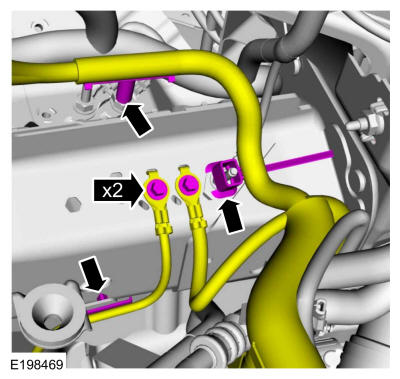

28. • Install ground wire and nut.

      Torque: 159 lb.in (18 Nm)

    • Attach the coolant hose retainer.

    Courtesy of FORD MOTOR COMPANY

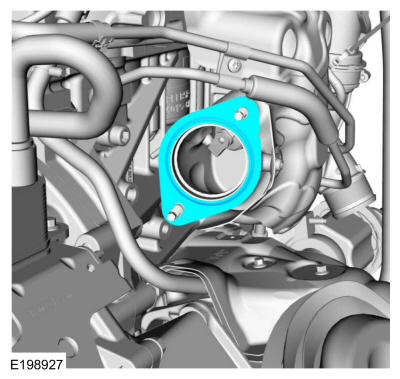

29. Install a new catalytic converter gasket.

    Courtesy of FORD MOTOR COMPANY

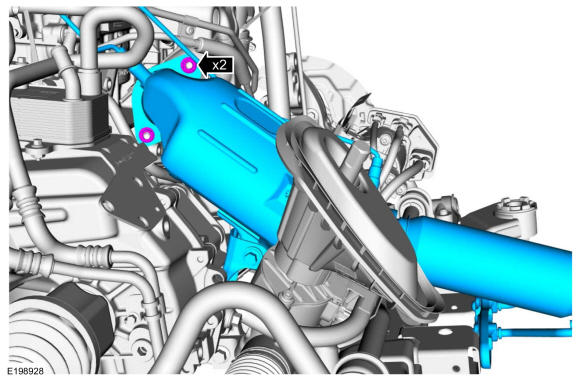

30. NOTE: Do not tighten the new catalytic converter-to-turbocharger nuts at this time.

    Install the catalytic converter and the new nuts finger-tight.

    Courtesy of FORD MOTOR COMPANY

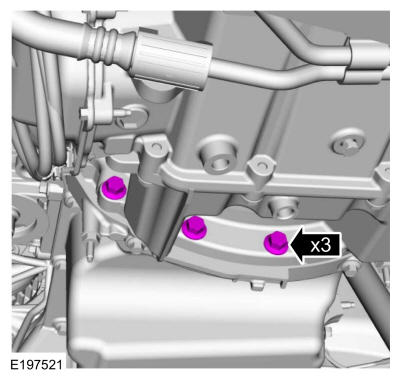

31. NOTE: Do not tighten the catalytic converter support bracket-to-transmission bolts at this time.

    Install the catalytic converter support bracket-to-transmission bolts.

    Courtesy of FORD MOTOR COMPANY

32. Tighten.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

33. Tighten.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

34. Install the catalytic converter support bracket-to-subframe bolts.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

35. Connect the HO2S and catalyst monitor sensor electrical connectors.

    Courtesy of FORD MOTOR COMPANY

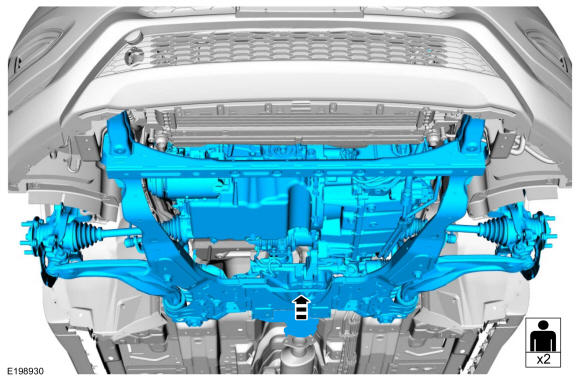

36. Using the powertrain jack, raise the powertrain and subframe as an assembly.

    Courtesy of FORD MOTOR COMPANY

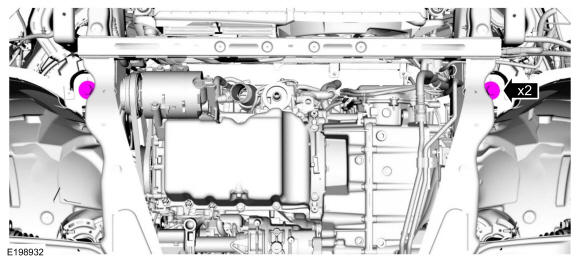

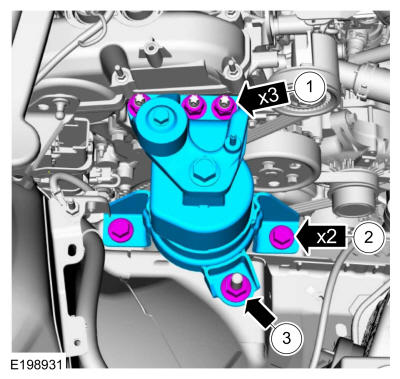

37. 1. Install the engine mount and the nuts.

       Torque: 85 lb.ft (115 Nm)

    2. Install the bolts.

       Torque: 81 lb.ft (110 Nm)

    3. Install the nut.

       Torque: 66 lb.ft (90 Nm)

    Courtesy of FORD MOTOR COMPANY

38. Install the transmission mount nut.

    Torque: 98 lb.ft (133 Nm)

    Courtesy of FORD MOTOR COMPANY

39. NOTE: Align the reference marks made during removal.
    NOTE: Only tighten the bolts finger tight at this stage.

    Install the new forward subframe bolts.

    Courtesy of FORD MOTOR COMPANY

40. NOTE: Align the reference marks made during removal.
    NOTE: Only tighten the bolts finger tight at this stage.
    1. Install the subframe brackets and the new rearward subframe bolts.
    2. Install the subframe bracket bolts.

    Courtesy of FORD MOTOR COMPANY

41. NOTE: While tightening the subframe bolts, make sure the front subframe does not move.

    Tighten the forward subframe bolts.

    Torque: 173 lb.ft (235 Nm)

    Courtesy of FORD MOTOR COMPANY

42. 1. Tighten.

       Torque: Stage 1: 76 lb.ft (103 Nm) Stage 2: 270 deg.

    2. Tighten.

       Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

43. Install the cooling module support panel and the bolts.

    Torque: 177 lb.in (20 Nm)

    Courtesy of FORD MOTOR COMPANY

44. Install the bolts and nuts.

    Torque: 173 lb.ft (235 Nm)

    Courtesy of FORD MOTOR COMPANY

45. Install the bolts and nuts.

    Torque: 173 lb.ft (235 Nm)

    Courtesy of FORD MOTOR COMPANY

46. Remove.

    Courtesy of FORD MOTOR COMPANY

47. Install both front brake disc. Refer to: Brake Disc .
48. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

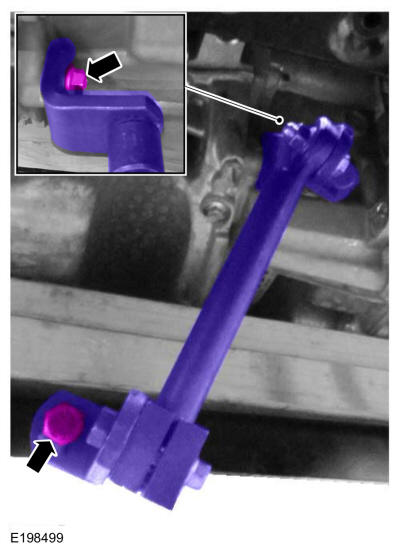

    Position the RH sway bar link and install the new nut.

    Torque: 85 lb.ft (115 Nm)

    Courtesy of FORD MOTOR COMPANY

49. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Position the LH sway bar link and install the new nut.

    Torque: 85 lb.ft (115 Nm)

    Courtesy of FORD MOTOR COMPANY

50. Install the RH anti-lock sensor and the bolt.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

51. Install the LH anti-lock sensor and the bolt.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

52. Install the transmission-to-engine bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

53. Install the engine-to-transmission bolt.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

54. Lubricate the oil filter sealing surface and install.

    Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 180 deg.

    Courtesy of FORD MOTOR COMPANY

55. Install the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
56. 1. NOTE: Use new O-ring seals and gasket seals.

       Connect the A/C lines and install the nuts.

       Torque: 133 lb.in (15 Nm)

    2. Install the support bracket nut.

       Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

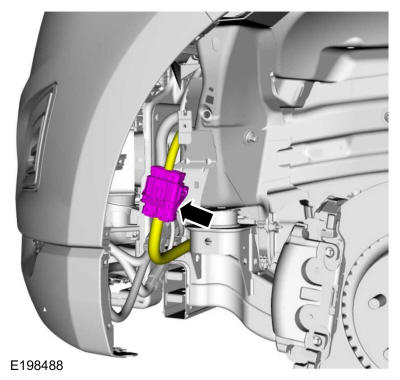

57. Connect the A/C compressor electrical connectors and wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

58. Connect and attach the engine harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

59. NOTE: RH side shown, LH side similar.

    Position the splash shield and install the fasteners on both sides.

    Courtesy of FORD MOTOR COMPANY

    4WD

60. Install the new lower transfer case bolts.

    Torque: 59 lb.ft (80 Nm)

    Courtesy of FORD MOTOR COMPANY

61. Install the rear driveshaft. Refer to: Rear Driveshaft .
62. Install the RH front halfshaft. Refer to: Front Halfshaft RH - 2.0L EcoBoost (184kW/250PS) - MI4, All-Wheel Drive (AWD) .

    2WD/4WD

63. Install a new exhaust gasket.

    Courtesy of FORD MOTOR COMPANY

64. Position the exhaust and install the new nuts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

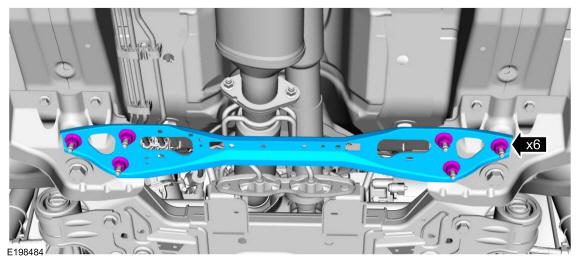

65. Install the subframe support bracket and the nuts.

    Torque: 33 lb.ft (45 Nm)

    Courtesy of FORD MOTOR COMPANY

66. NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.

    Install the CAC tube and tighten the clamps.

    Torque: 44 lb.in (5 Nm)

    Courtesy of FORD MOTOR COMPANY

67. NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.
    1. Install the CAC tube and the nuts.

       Torque: 97 lb.in (11 Nm)

    2. Tighten the clamp.

       Torque: 44 lb.in (5 Nm)

    Courtesy of FORD MOTOR COMPANY

68. Connect the CAC hose, electrical connector and the wire retainer. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

69. NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.

    Position the CAC tube and tighten the clamp.

    Torque: 44 lb.in (5 Nm)

    Courtesy of FORD MOTOR COMPANY

70. Install the underbody shields and the retainers.

    Courtesy of FORD MOTOR COMPANY

71. Install the front underbody shield and the retainers.

    Courtesy of FORD MOTOR COMPANY

72. Install the underbody shields and the retainers.

    Courtesy of FORD MOTOR COMPANY

73. Install the underbody shields and the retainers.

    Courtesy of FORD MOTOR COMPANY

74. Install the front wheels and tires. Refer to: Wheel and Tire .
75. 1. Remove.
    2. Install.

    Courtesy of FORD MOTOR COMPANY

76. Install the upper air deflector and the retainers.

    Courtesy of FORD MOTOR COMPANY

77. Connect the fuel tube and EVAP canister purge valve quick release couplings. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

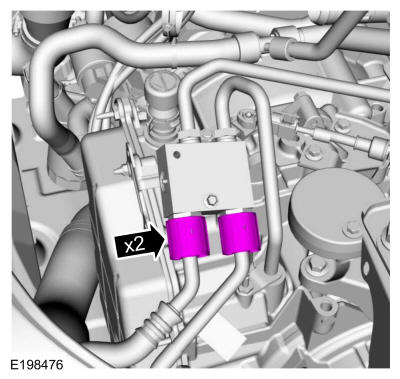

78. Connect the transmission fluid cooler tubes to the transmission fluid cooler thermal bypass valve.

    Courtesy of FORD MOTOR COMPANY

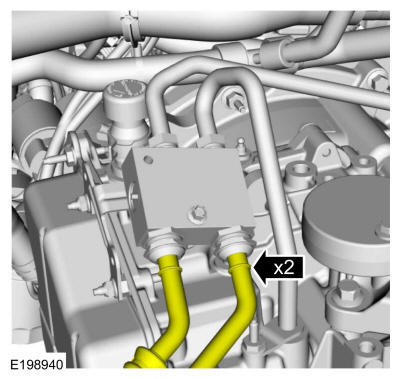

79. Install the transmission fluid cooler tube secondary latches.

    Courtesy of FORD MOTOR COMPANY

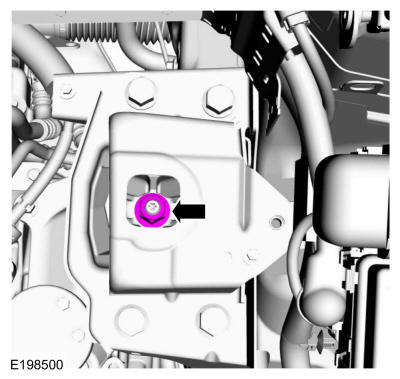

80. Connect the shift cable, install the bolts.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

81. NOTE: Vehicles with auxiliary heater.

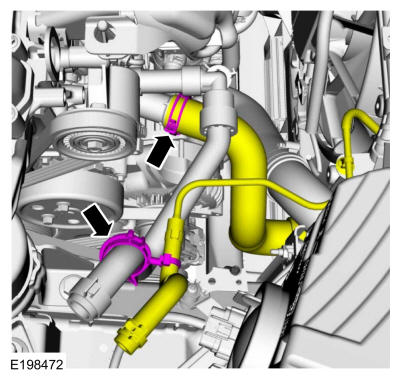

    • Vehicles with auxiliary heater, connect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
    • Attach the upper radiator hose retainer.

    Courtesy of FORD MOTOR COMPANY

82. NOTE: Vehicles without auxiliary heater.
    • Vehicles without auxiliary heater, connect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
    • Connect the coolant hose quick connect coupling.

    Courtesy of FORD MOTOR COMPANY

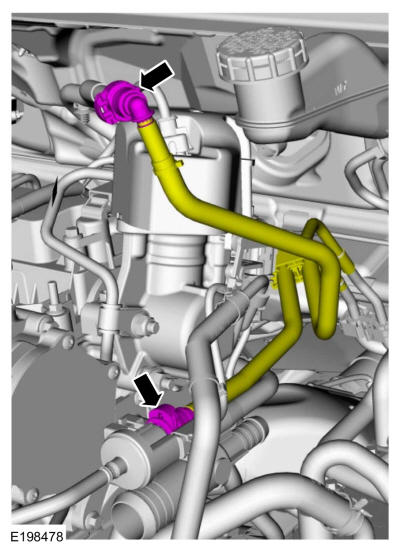

83. Connect the vacuum tube at the brake vacuum pump and retainer.

    Courtesy of FORD MOTOR COMPANY

84. Push the intake manifold retainer in and install the brake vacuum tube.

    Courtesy of FORD MOTOR COMPANY

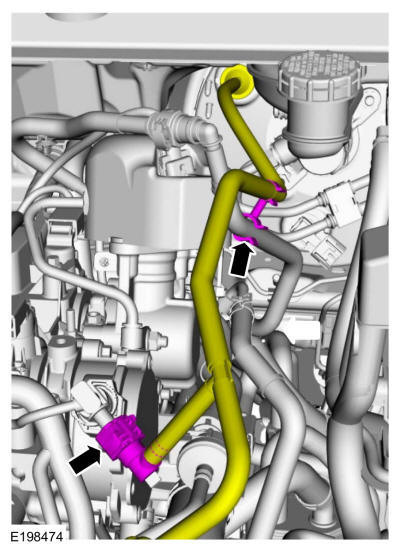

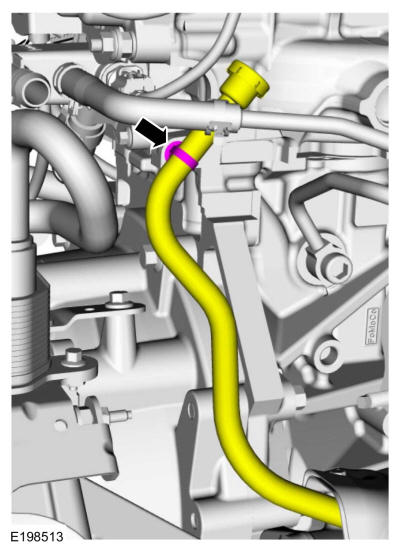

85. Install the crankcase vent tube, connect the electrical connector and wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

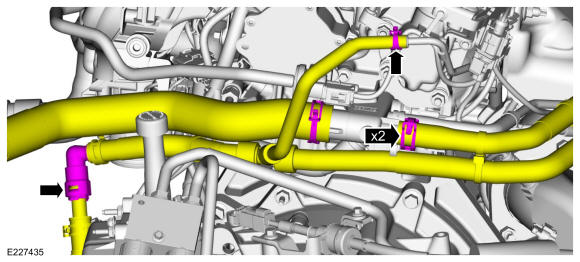

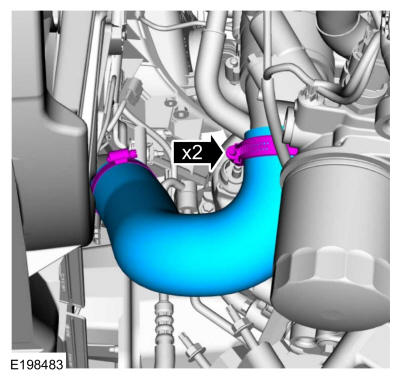

86. • Connect the lower radiator hose to the thermostat housing. Use the General Equipment: Hose Clamp Remover/Installer
    • Attach the coolant tube return hose retainer.

    Courtesy of FORD MOTOR COMPANY

87. • Connect the PCM electrical connector.
    • Connect the engine harness electrical connector and retainer.

    Courtesy of FORD MOTOR COMPANY

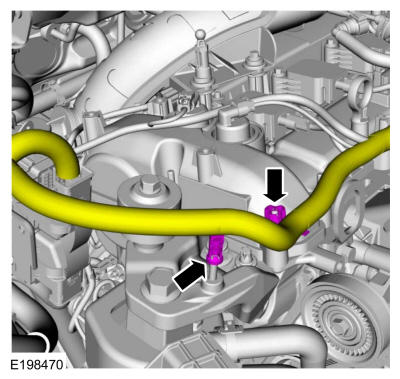

88. Attach wire harness retainers to the engine mount and valve cover stud bolt.

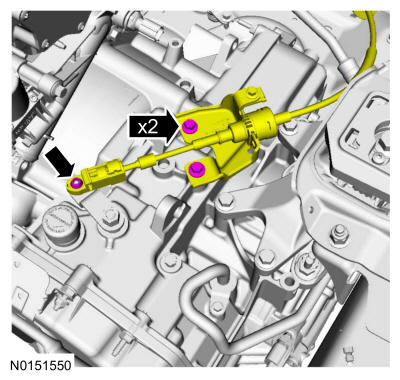

    Courtesy of FORD MOTOR COMPANY

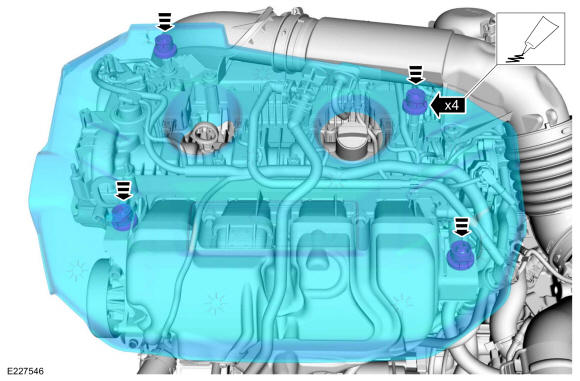

89. Install the bolts and attach the wiring harness retainers.

    Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

90. Position the electrical wiring harness cables and install the nuts.
    1. Torque: 71 lb.in (8 Nm)
    2. Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

91. Close the cover.

    Courtesy of FORD MOTOR COMPANY

92. • Position the top part of junction box.
    • Latch the tabs.

    Courtesy of FORD MOTOR COMPANY

93. Connect the junction box electrical connector.

    Courtesy of FORD MOTOR COMPANY

94. Install the ground cable and stud bolt.

    Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

95. Install the following items:
    1. Refer to: Battery Tray .
    2. Refer to: Air Cleaner .
    3. Refer to: Air Cleaner Outlet Pipe .
    4. Refer to: Degas Bottle .

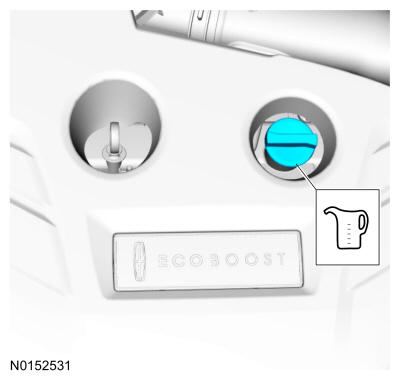

96. Fill the engine with clean engine oil. Refer to: Specifications .

    Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    Courtesy of FORD MOTOR COMPANY

97. Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
98. 1. NOTE: Lubricating the grommets with silicone grease will aid in the installation of the engine appearance cover, and any future removal and installation of the cover.

       Lubricate each grommet with silicone grease.

       Material: Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

    2. Position the engine appearance cover onto engine with the grommets aligned with the studs.
    3. Press down on the engine appearance cover at each grommet location to attach the grommets onto the studs.

    Courtesy of FORD MOTOR COMPANY

99. Position steering column shaft and install a new bolt.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

100. Remove the holding device.

     Courtesy of FORD MOTOR COMPANY

101. Charge the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .
102. Check the transmission fluid level. Refer to: Transmission Fluid Level Check .
103. Check the transfer case fluid level. Refer to: Transfer Case Fluid Level Check .
104. Start and check the exhaust system for leaks.
105. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
