Liftgate Alignment

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Inspection

NOTE: Removal steps in this procedure may contain installation details.

Check liftgate-to-body dimensions. Refer to: Body and Frame .

Adjustment

All alignments

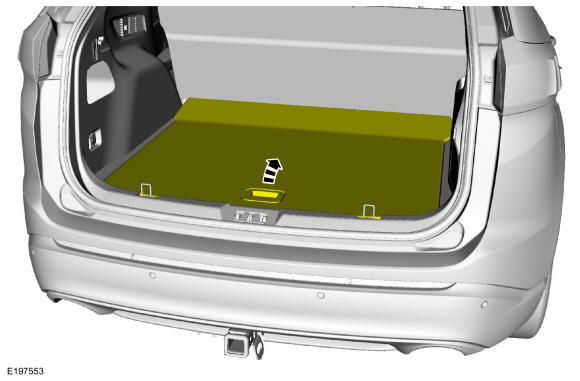

Position aside the load compartment luggage cover.

Courtesy of FORD MOTOR COMPANY

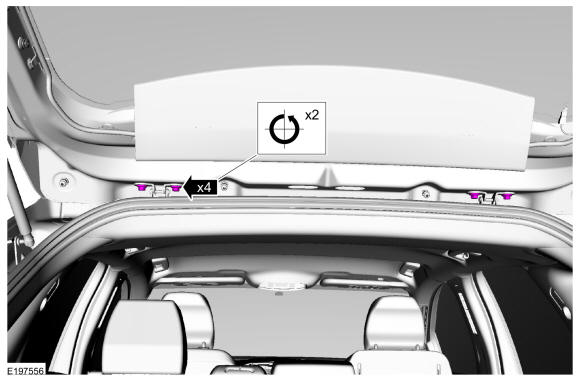

1. Remove the bolts.
  Torque

  : 80 lb.in (9 Nm)

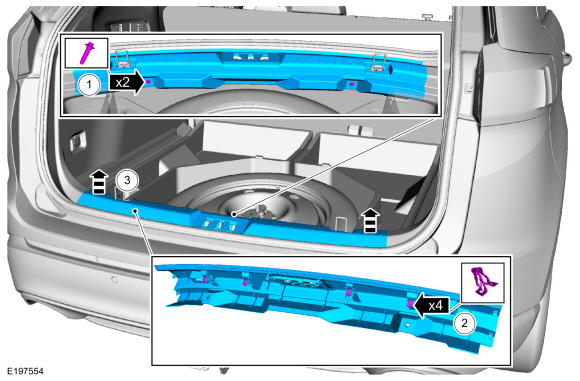

2. Remove the retainers.
3. Remove the liftgate opening trim panel.

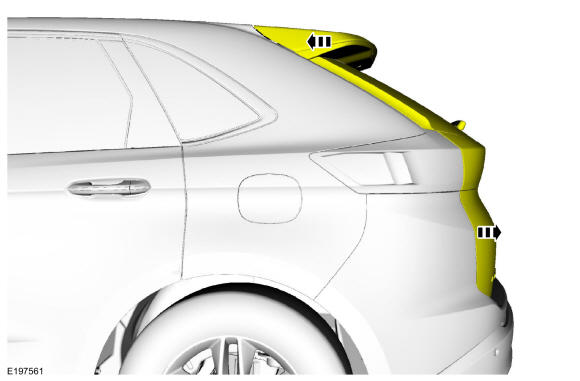

Courtesy of FORD MOTOR COMPANY

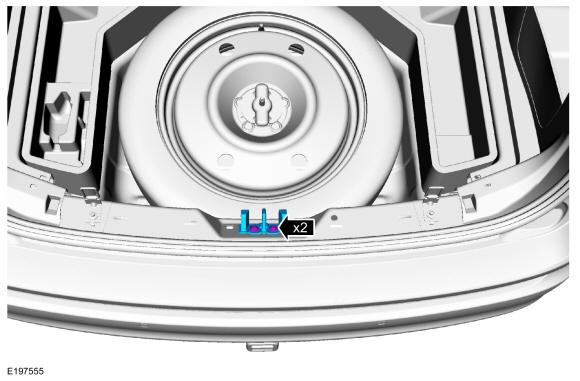

Remove the liftgate striker.
Torque

: 177 lb.in (20 Nm)

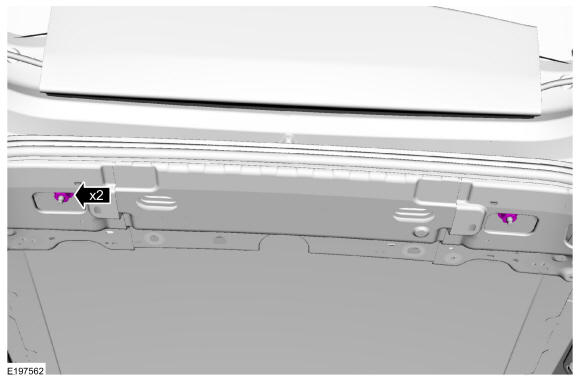

Courtesy of FORD MOTOR COMPANY

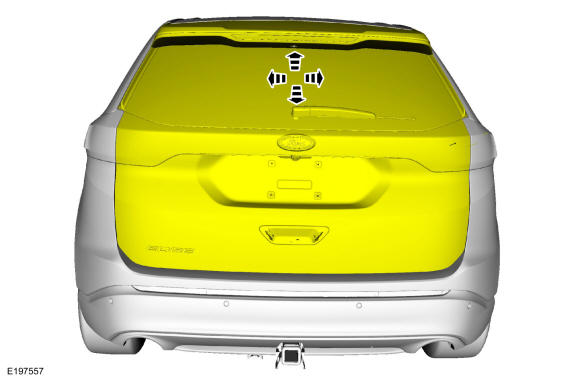

Liftgate left and right, up and down alignment

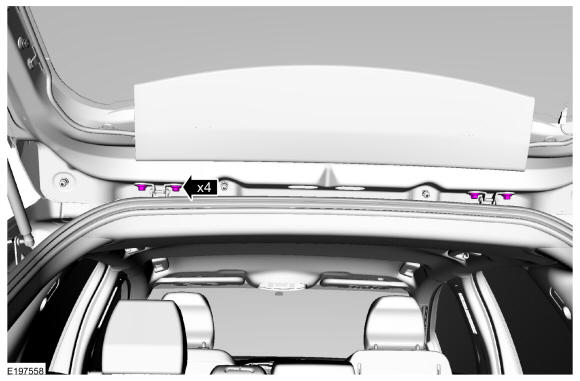

Loosen the bolts. Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY

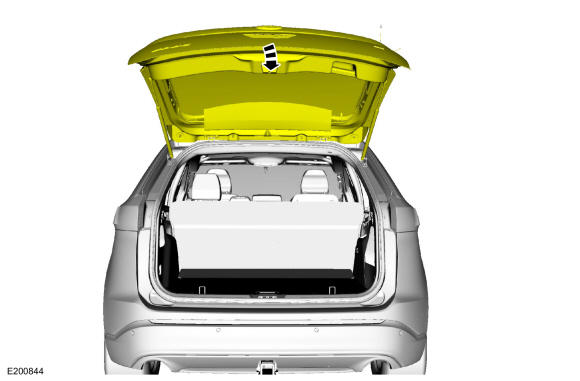

Carefully close the liftgate.

Courtesy of FORD MOTOR COMPANY
Adjust the liftgate to specification. Refer to: Body and Frame .

Courtesy of FORD MOTOR COMPANY
Carefully open the liftgate.

Courtesy of FORD MOTOR COMPANY
Tighten the bolts.
Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

Liftgate in and out alignment
Lower the headliner. Refer to: Headliner - Lowering .

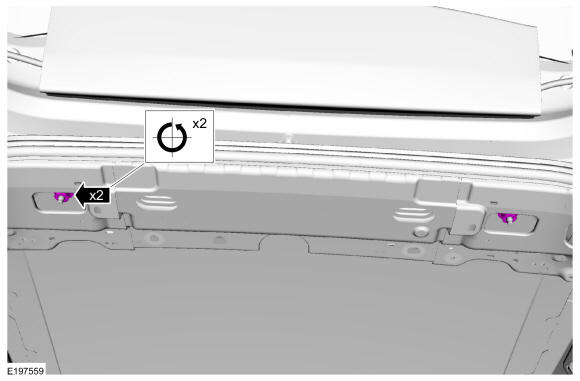

Loosen the nuts. Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY
NOTE: Nominal overslam bumpers have a small lip and should be adjusted flush with the sheet metal surface.

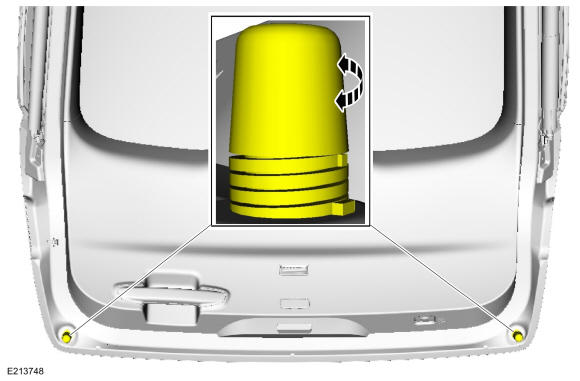

Adjust the nominal overslam bumpers.

Courtesy of FORD MOTOR COMPANY
Carefully close the liftgate.

Courtesy of FORD MOTOR COMPANY
Adjust the liftgate to specification. Refer to: Body and Frame .

Courtesy of FORD MOTOR COMPANY
Carefully open the liftgate.

Courtesy of FORD MOTOR COMPANY
Tighten the nuts.
Torque

: 46 lb.ft (62.5 Nm)

Courtesy of FORD MOTOR COMPANY

All alignments

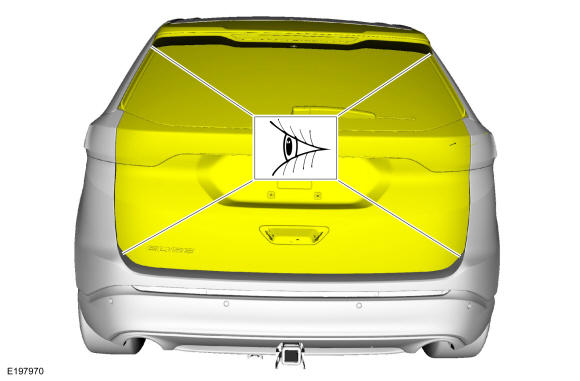

Inspect the body-to-liftgate door dimensions. Refer to: Body and Frame .

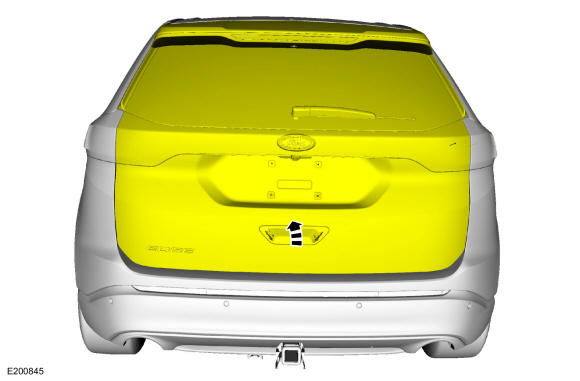

Courtesy of FORD MOTOR COMPANY
Install the removed components.
If equipped, carry out the power liftgate initialization. Refer to: Power Liftgate Initialization .
