Headliner - Lowering
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
- Remove the following items:
- On both sides, remove the A-pillar trim panels. Refer to: A-Pillar Trim Panel .
- On both sides, remove the B-pillar trim panels. Refer to: B-Pillar Trim Panel .
- On both sides, remove the C-pillar trim panels. Refer to: C-Pillar Trim Panel .
- If equipped.

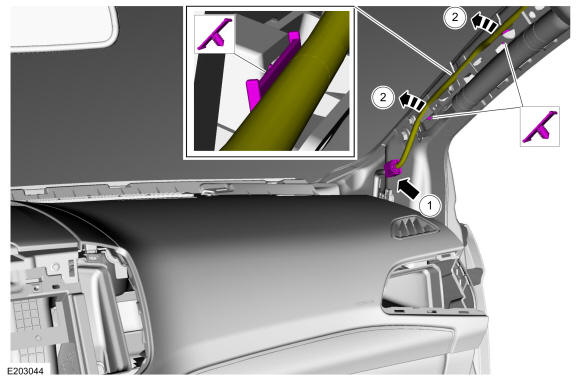

- Disconnect the RH headliner wire harness.
- Release the clips and position the RH headliner wire harness aside.
- Position aside the LH headliner wire harness.

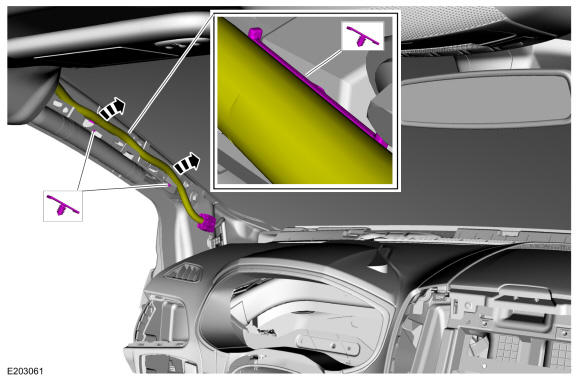

- Disconnect the LH headliner wire harness.
- Release the clips and position the LH headliner wire harness aside.

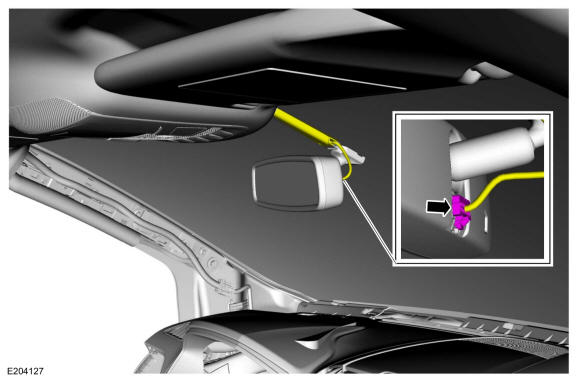

- If equipped. Disconnect the mirror electrical connector.

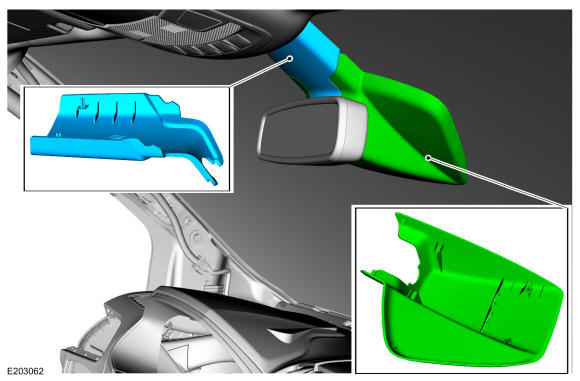

- If equipped. Release the clips and remove the rear view mirror covers.

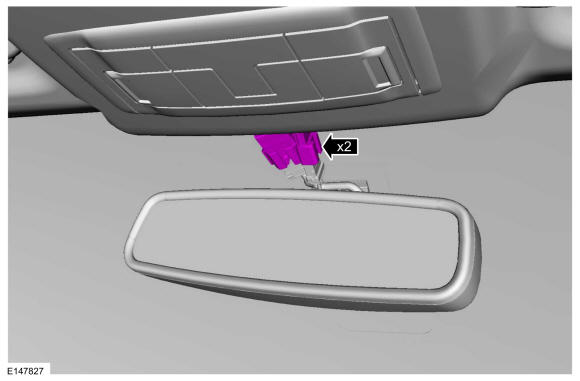

- If equipped. Disconnect the mirror and the rain sensor electrical connectors.
-

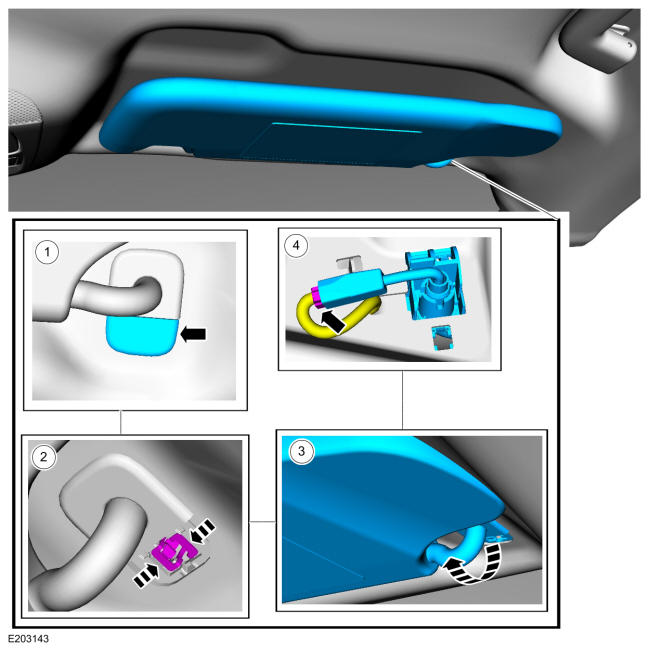

NOTE: RH side shown, LH side similar.
On both sides. Remove both sun visors.
- Remove the sun visor retainer cover.
- Remove the sun visor retainer.
- Remove sun visor.
- If equipped. Disconnect the sun visor electrical connector and remove the sun visor.
-
NOTE: RH side shown, LH side similar.

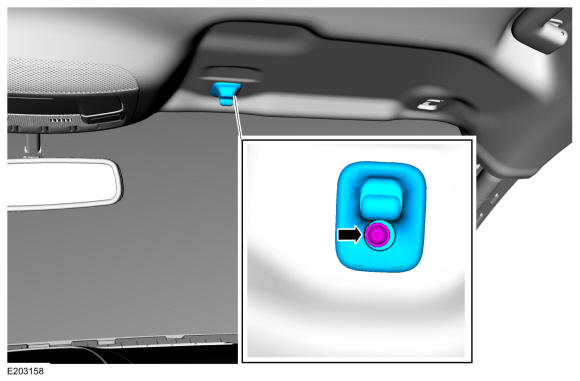

On both sides. Remove the retainer and the sun visor clip.
-
NOTE: RH side shown, LH side similar.

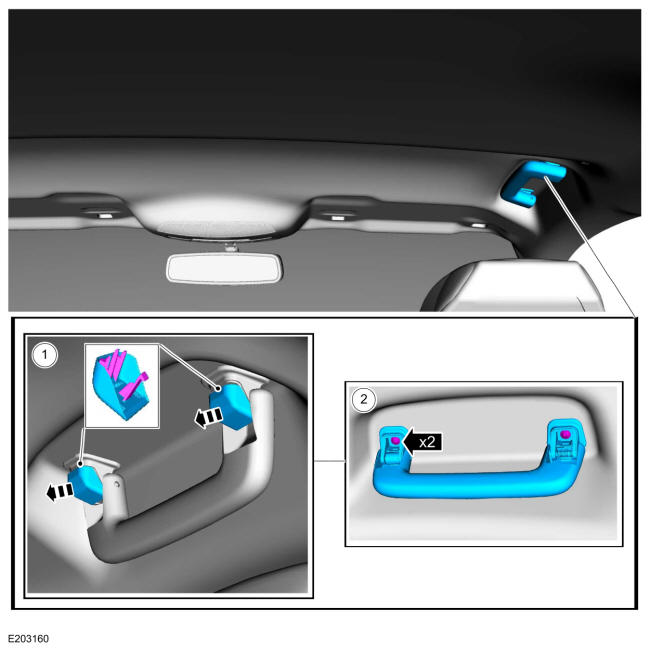

On both sides. Remove the front grab handles.
- Remove the bolt covers.
- Remove the retainers and the grab handle.
-
NOTE: RH side shown, LH side similar.
On both sides. Remove the rear grab handles.
- Remove the bolt covers.
- Remove the retainers and the rear grab handle.
-

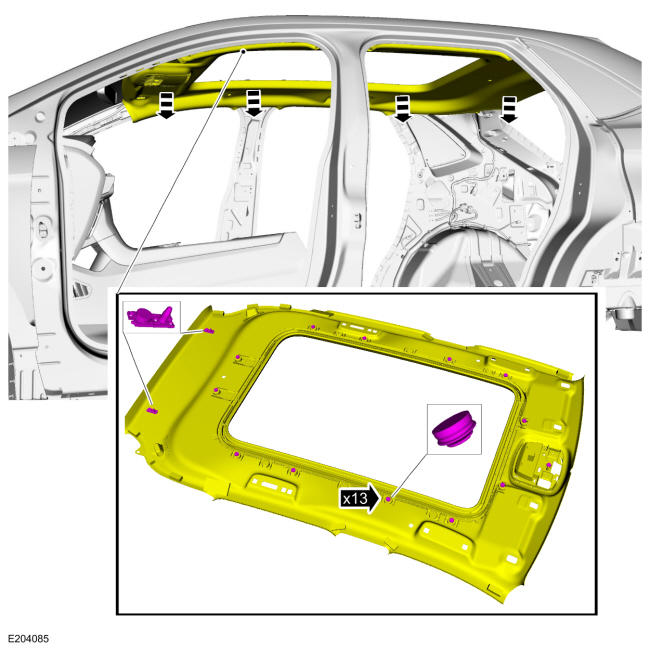

NOTE: Headliner with roof opening panel shown, others similar.
Release the magnets and lower the headliner down.
