Door Window Glass Adjustment - Coupe

For information on Ford Color Coded Illustrations refer toOEM COLOR CODING

Adjustment

NOTE: LH side shown, RH side similar.
NOTE: Removal steps in this procedure may contain installation details.

All adjustments

  1. NOTE: This step is only necessary when the door has been removed or replaced.
    NOTE: The front door must be aligned correctly before adjusting the front door window glass.

    Check the front door alignment. Refer to: Front Door Alignment .

  2. Open the door.
    GFD289698Courtesy of FORD MOTOR COMPANY
  3. Remove the front door speaker. Refer to: Front Door Speaker RH . Refer to: Front Door Speaker LH .
  4. Remove the bolts and position aside the DDM.
    GFD289699Courtesy of FORD MOTOR COMPANY

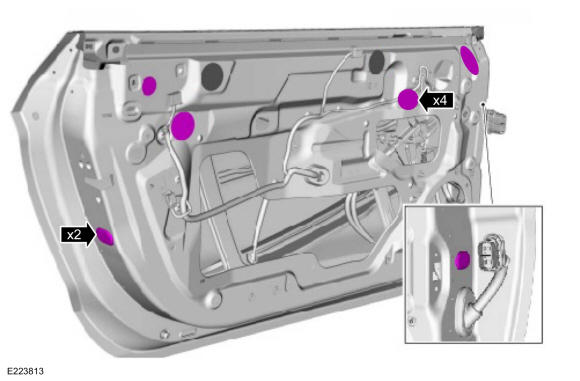

  5. Remove the grommets and the adhesive tapes.
    GFD289700Courtesy of FORD MOTOR COMPANY

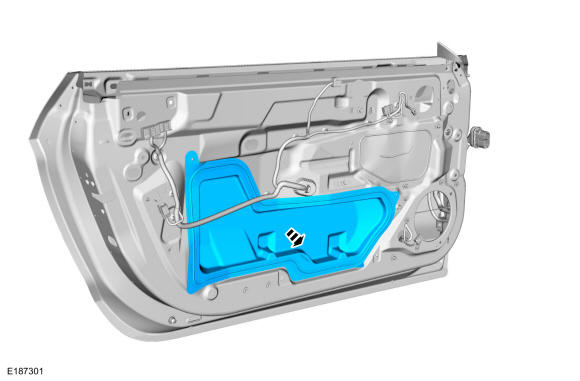

  6. Remove the front door lower watershield.
    GFD289701Courtesy of FORD MOTOR COMPANY

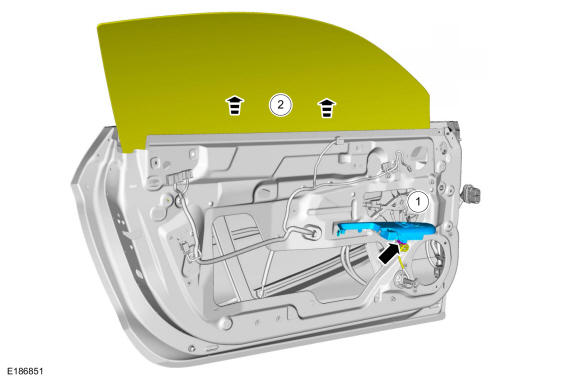

  7. Raise the front door window glass to the full up position.

    1. Install the front door window control switch.
    2. Raise the front door window glass to the full up position.

    GFD289702Courtesy of FORD MOTOR COMPANY

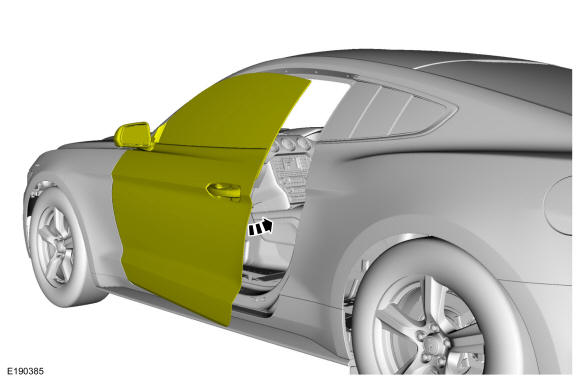

  8. Close the door.
    GFD289703Courtesy of FORD MOTOR COMPANY

    Up/Down, Fore/Aft adjustment

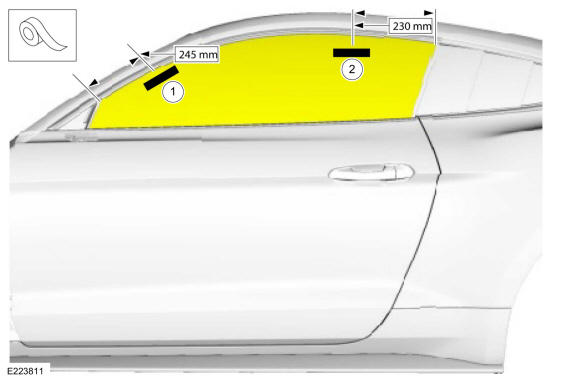

  9. Apply tape to top of the front door glass at the specified locations.

    1. Apply tape on front door window glass at the A-pillar 245mm from the base of the outer belt moulding.
    2. Apply tape on front door window glass from the rear of front door window glass near the roof line 230mm forward.

    GFD289704Courtesy of FORD MOTOR COMPANY
  10. Open the door.
    GFD289698Courtesy of FORD MOTOR COMPANY

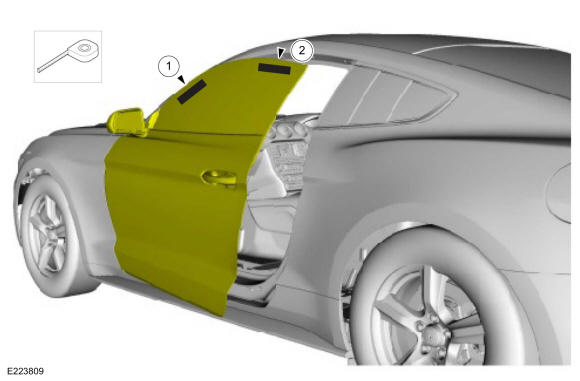

  11. Measure the distance of the tape at both locations to the top edge of the front door glass at the specified locations.

    1. Measure front door window glass at the A-pillar 245mm from the base of the outer belt moulding and record.
    2. Measure at the rear of front door window glass near the roof line 230mm forward and record.

    GFD289705Courtesy of FORD MOTOR COMPANY
  12. Close the door.
    GFD289703Courtesy of FORD MOTOR COMPANY

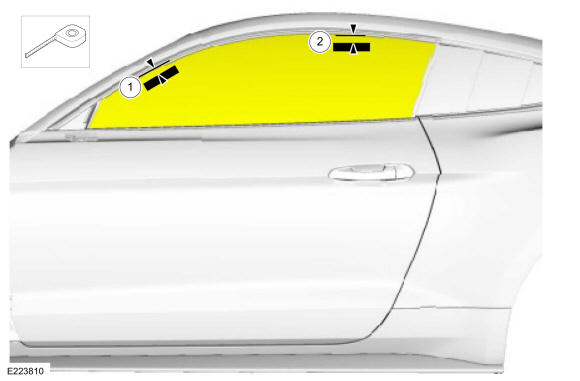

  13. Measure the distance of the tape at both locations to the outer bottom edge of the seal retainer at the specified locations.

    1. Measure front door window glass at the A-pillar 245mm from the base of the outer belt moulding and record.
    2. Measure front door window glass at the rear of front door glass near the roof line 230mm forward and record.

    GFD289706Courtesy of FORD MOTOR COMPANY
  14. Subtract the distance of the tape at both locations from the previously recorded measurements.

    1. Front door window glass engagement measurement range at the A-pillar 245mm from the base of the outer belt moulding range is 4mm +/-2mm.
    2. Front door window glass engagement measurement range at rear of front door glass near the roof line 230mm forward range is 8mm +/-2.5mm.

  15. Open the door.
    GFD289698Courtesy of FORD MOTOR COMPANY

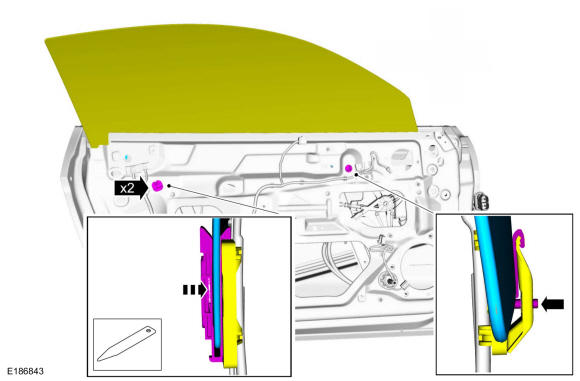

  16. Loosen both glass clamps, adjust the front door window glass as necessary and tighten the glass clamps.

    Torque

    : 80 lb.in (9 Nm)

    GFD289707Courtesy of FORD MOTOR COMPANY
  17. Close the door.
    GFD289703Courtesy of FORD MOTOR COMPANY
  18. Measure the distance of the tape at both locations to the outer bottom edge of the seal retainer at the specified locations.

    1. Measure at A-pillar 245mm from the base of the outer belt moulding and record.
    2. Measure at rear of front door glass near the roof line 230mm forward and record.

    GFD289706Courtesy of FORD MOTOR COMPANY
  19. NOTE: Repeat steps 15 through 19 until the front door window glass within specification.

    Subtract the distance of the tape at both locations from the previously recorded measurements.

    1. Measurement range at A-pillar 245mm from the base of the outer belt moulding range is 4mm +/-2mm.
    2. Measurement range at rear of front door glass near the roof line 230mm forward range is 8mm +/-2.5mm.

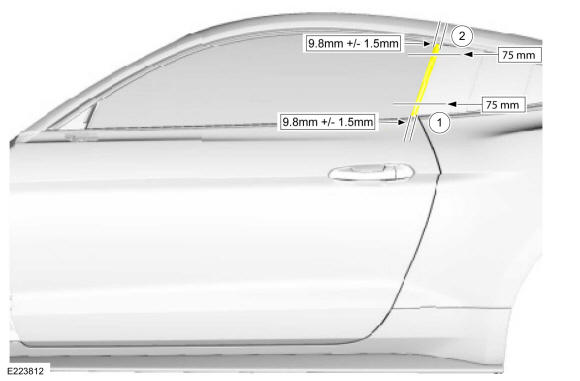

  20. Measure the gap between the front door window glass edge and the rear quarter window glass edge should be 9.8mm +/- 1.5mm.

    1. Measure at the rear of front door glass 75mm from the base of the outer belt moulding. Record the measurement. The gap between the front door window glass edge and the rear quarter window glass edge should be 9.8mm +/- 1.5mm.
    2. Measure at the rear of front door glass 75mm from the top of the front door window glass. Record the measurement. The gap between the front door window glass edge and the rear quarter window glass edge should be 9.8mm +/- 1.5mm.

    GFD289708Courtesy of FORD MOTOR COMPANY
  21. NOTE: Repeat steps 15 through 20 until the front door window glass within specification.

    Subtract the measurements recorded in the previous step. The variance between top to bottom of the front door window glass edge to the rear quarter window glass edge should be +/- 1.0mm.

    1. If the measurements are not within range or the variance between top to bottom of the front door window glass edge to the rear quarter window glass edge is greater than +/- 1.0mm the front door window glass needs to be adjusted.

    In/Out adjustment

  22. Close the door.
    GFD289703Courtesy of FORD MOTOR COMPANY

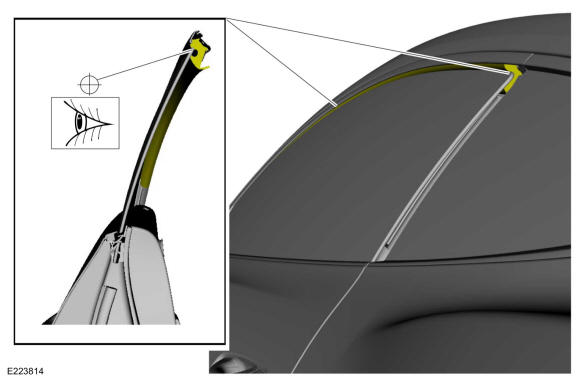

  23. Lower and raise the front door window glass and check the glass engagement into the weatherstrip at the specified locations.
    GFD289709Courtesy of FORD MOTOR COMPANY
  24. Open the door.
    GFD289698Courtesy of FORD MOTOR COMPANY

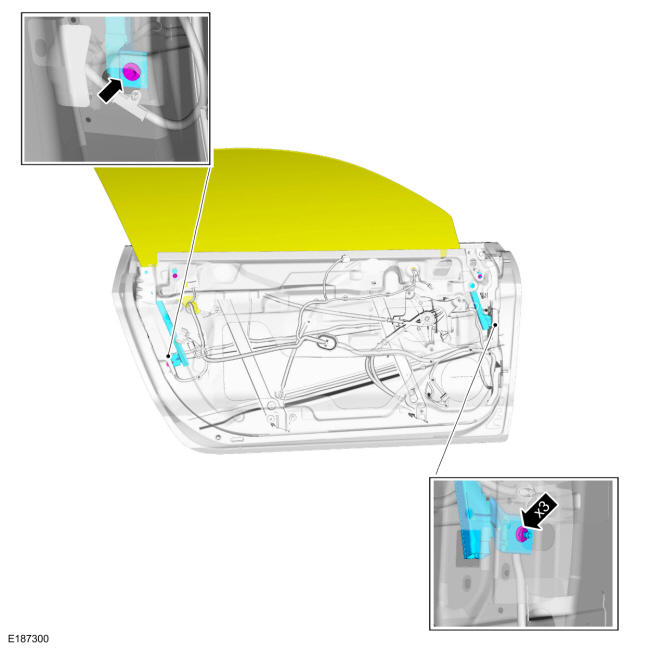

  25. Loosen the nuts on the fore and aft front door glass runs.
    GFD289710Courtesy of FORD MOTOR COMPANY

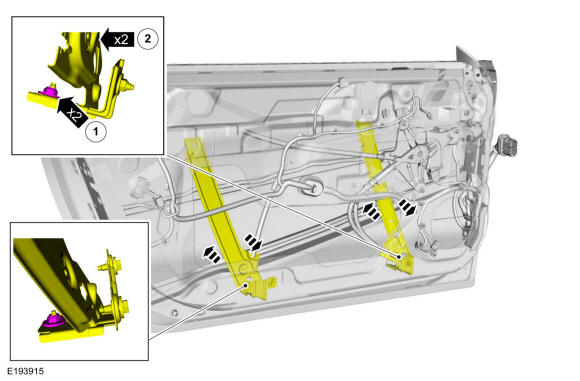

  26. Adjust the regulator rails equally in and out to avoid binding.

    1. Loosen the lower window regulator nuts.
    2. Adjust the front and rear regulator rails equally in and out to avoid binding.

    GFD289711Courtesy of FORD MOTOR COMPANY
  27. Close the door.
    GFD289703Courtesy of FORD MOTOR COMPANY
  28. NOTE: Repeat steps 24 through 28 until the front door window glass within specification.

    Lower and raise the front door window glass and check the glass engagement into the weatherstrip at the specified locations.

    GFD289709Courtesy of FORD MOTOR COMPANY
  29. Open the door.
    GFD289698Courtesy of FORD MOTOR COMPANY

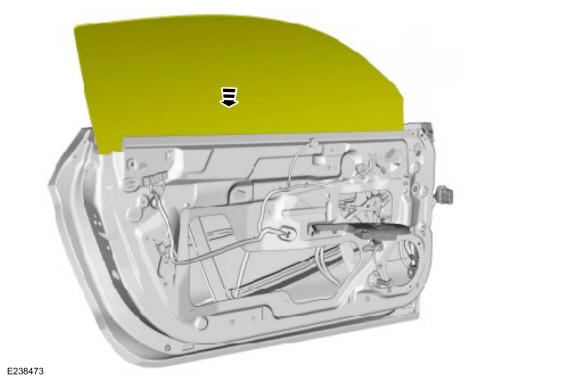

  30. Lower the front door window glass.
    GFD289712Courtesy of FORD MOTOR COMPANY

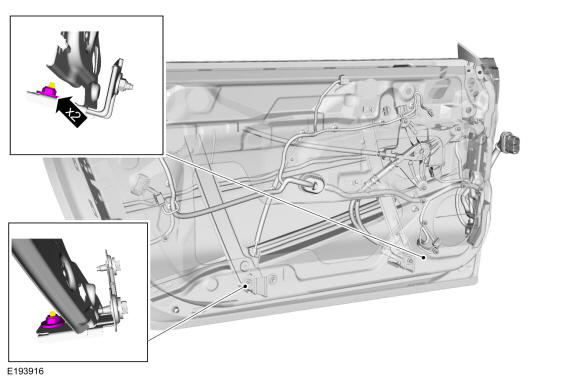

  31. NOTE: Take care not to influence the position of the front door glass runs when tightening the nuts.

    Tighten the front door glass regulator rail nuts.

    Torque

    : 97 lb.in (11 Nm)

    GFD289713Courtesy of FORD MOTOR COMPANY
  32. NOTE: Take care not to influence the position of the front door glass runs when tightening the nuts.

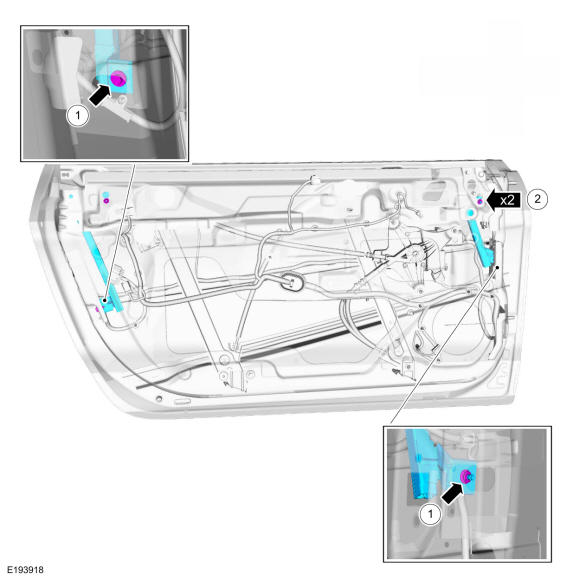

    Tighten the nuts on the fore and aft front door glass runs.

    1. Tighten the lower bolt and nuts on the fore and aft front door glass runs.

      Torque

      : 97 lb.in (11 Nm)

    2. Tighten the upper nuts on the fore and aft front door glass runs.

      Torque

      : 97 lb.in (11 Nm)

    GFD289714Courtesy of FORD MOTOR COMPANY
  33. Raise the front door window glass to the full up position.
    GFD289715Courtesy of FORD MOTOR COMPANY
  34. Close the door.
    GFD289703Courtesy of FORD MOTOR COMPANY

    All adjustments

  35. Open the door.
    GFD289698Courtesy of FORD MOTOR COMPANY
  36. Recheck the front door window glass up/down, fore/aft to body dimensions at the specified locations. Measure the distance of the tape at both locations to the top edge of the front door glass at the specified locations.

    1. Measure front door window glass at the A-pillar 245mm from the base of the outer belt moulding and record.
    2. Measure at the rear of front door window glass near the roof line 230mm forward and record.

    GFD289705Courtesy of FORD MOTOR COMPANY
  37. Close the door.
    GFD289703Courtesy of FORD MOTOR COMPANY
  38. Measure the distance of the tape at both locations to the outer bottom edge of the seal retainer at the specified locations.

    1. Measure front door window glass at the A-pillar 245mm from the base of the outer belt moulding and record.
    2. Measure front door window glass at the rear of front door glass near the roof line 230mm forward and record.

    GFD289706Courtesy of FORD MOTOR COMPANY
  39. NOTE: Repeat steps 10 through 21 until the front door window glass within specification.

    Subtract the distance of the tape at both locations from the previously recorded measurements.

    1. Front door window glass engagement measurement range at the A-pillar 245mm from the base of the outer belt moulding range is 4mm +/-2mm.
    2. Front door window glass engagement measurement range at rear of front door glass near the roof line 230mm forward range is 8mm +/-2.5mm.

  40. NOTE: Repeat steps 24 through 33 until the front door window glass within specification.

    Lower and raise the front door window glass and check the glass engagement into the weatherstrip at the specified locations.

    GFD289709Courtesy of FORD MOTOR COMPANY

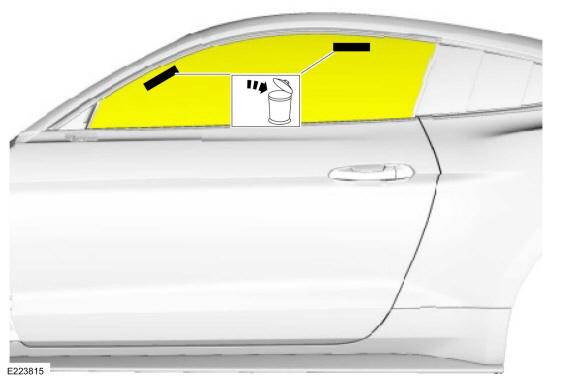

  41. Remove the tape from the front door window glass.
    GFD289716Courtesy of FORD MOTOR COMPANY
  42. Install the removed components.
  43. Carry out the power door window initialization. Refer to: Power Door Window Initialization .
