Front Door Alignment

For information on Ford Color Coded Illustrations refer toOEM COLOR CODING

Inspection

1. Check front door to body dimensions. Refer to: Body and Frame .

Adjustment

All alignments

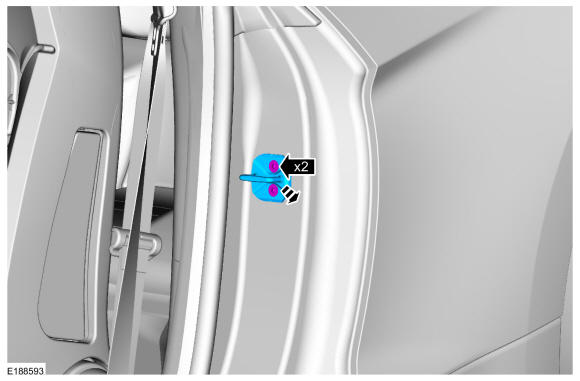

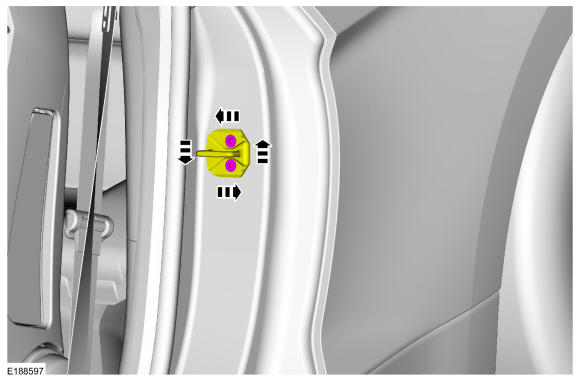

1. Remove the bolts and the striker assembly.

   Torque

   : 18 lb.ft (25 Nm)

   Courtesy of FORD MOTOR COMPANY

   Front door in and out, up and down alignment

2. Open the door.

   Courtesy of FORD MOTOR COMPANY

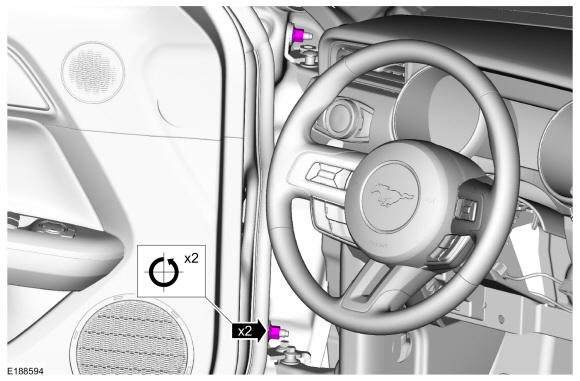

3. Loosen the nuts to permit movement of the door. Loosen: : 2 turn(s)

   Courtesy of FORD MOTOR COMPANY

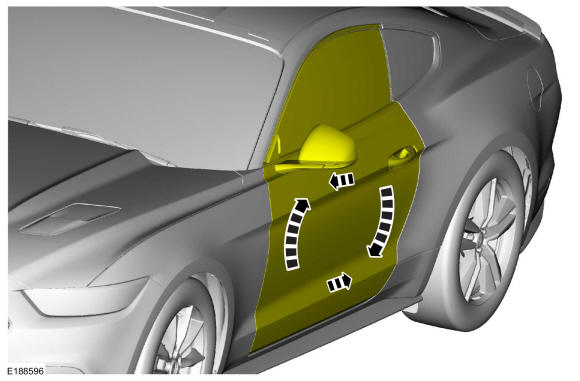

4. Adjust the door to specification. Refer to: Body and Frame .

   Courtesy of FORD MOTOR COMPANY

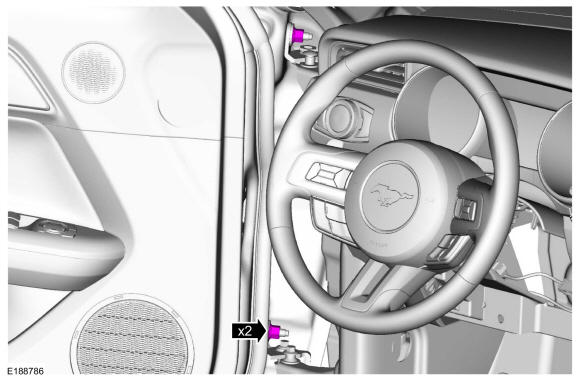

5. Tighten the nuts.

   Torque

   : 22 lb.ft (30 Nm)

   Courtesy of FORD MOTOR COMPANY

   Front door fore, aft and tilt alignment

6. Open the door.

   Courtesy of FORD MOTOR COMPANY

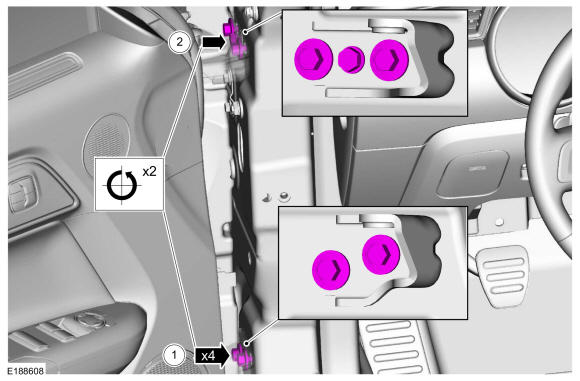

7. Loosen the bolts to permit movement of the door. Loosen: : 2 turn(s)

   Courtesy of FORD MOTOR COMPANY

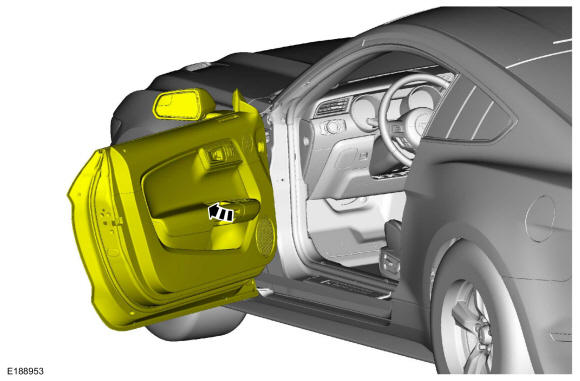

8. Carefully close the door.

   Courtesy of FORD MOTOR COMPANY

9. Adjust the door to specification. Refer to: Body and Frame .

   Courtesy of FORD MOTOR COMPANY

10. Carefully open the door.

    Courtesy of FORD MOTOR COMPANY

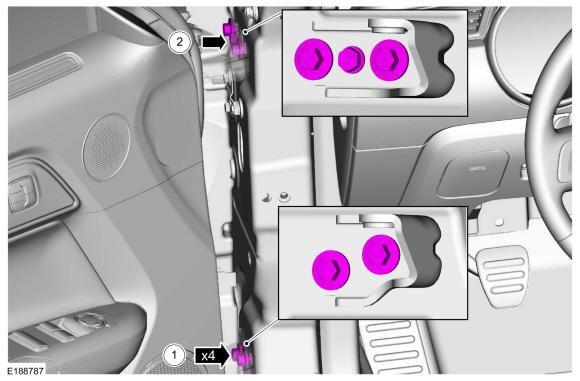

11. Tighten the bolts.

    Torque

    : 1.: 22 lb.ft (30 Nm) 2.: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

    All alignments

12. Loosen the bolts to permit movement of the striker assembly. Loosen: : 2 turn(s)

    Courtesy of FORD MOTOR COMPANY

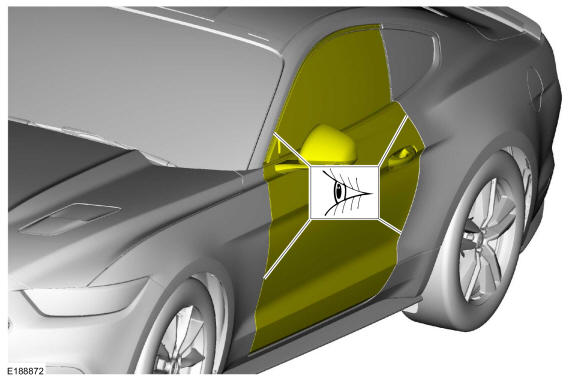

13. Check body to front door dimensions. Refer to: Body and Frame .

    Courtesy of FORD MOTOR COMPANY

14. Check the front door glass alignment. Refer to: Door Window Glass Adjustment - Convertible . Refer to: Door Window Glass Adjustment - Coupe .
15. Install the removed components.
