Starter Motor: Removal

WARNING: Always disconnect the battery ground cable at the battery before disconnecting the starter motor battery terminal lead. If a tool is shorted at the starter motor battery terminal, the tool can quickly heat enough to cause a skin burn. Failure to follow this instruction may result in serious personal injury.

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Disconnect the battery. Refer to: Battery Disconnect and Connect .

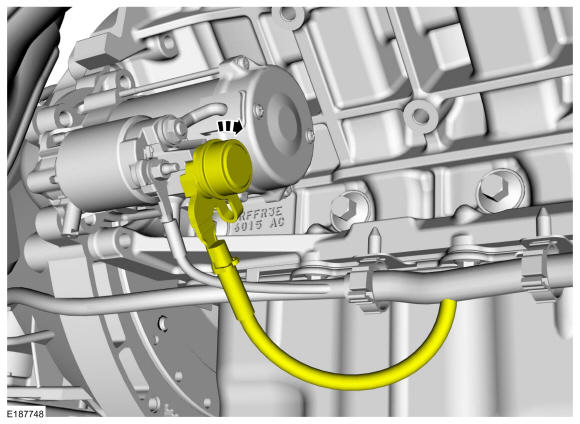

Open the starter motor solenoid battery cable cover.

Courtesy of FORD MOTOR COMPANY

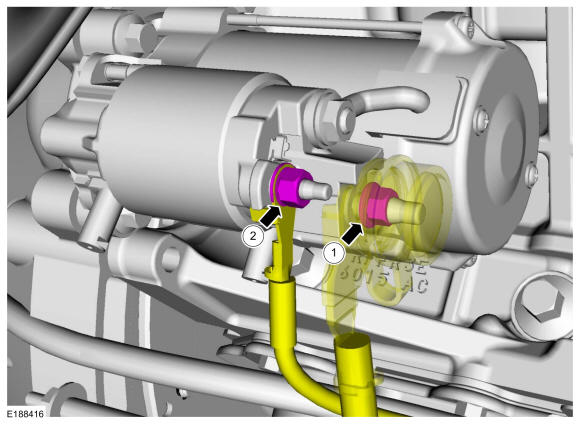

1. Remove the starter motor solenoid battery cable nut and then disconnect the starter motor solenoid battery cable.
  Torque: 106 lb.in (12 Nm)
2. Remove the starter motor solenoid wire nut and then disconnect the starter motor solenoid wire.
  Torque: 53 lb.in (6 Nm)
Courtesy of FORD MOTOR COMPANY

10-Speed Automatic Transmission - 10R80

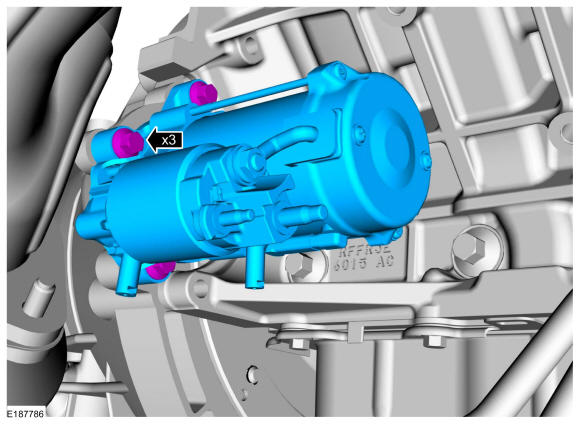

Remove the starter motor mounting bolts and then remove the starter motor.
Torque: 35 lb.ft (47.5 Nm)

Courtesy of FORD MOTOR COMPANY

6-Speed Manual Transmission - MT82

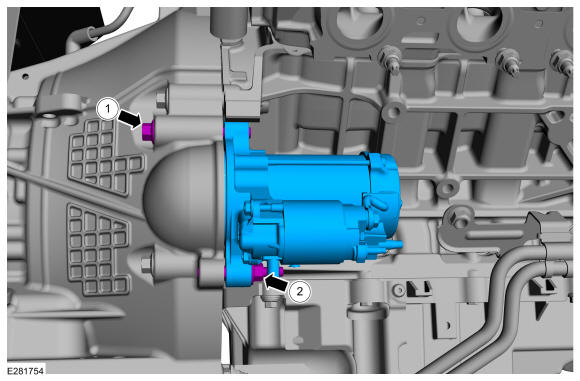

Remove the starter motor mounting bolts and then remove the starter motor.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles
Inspect the starter motor drive gear and flywheel ring gear. Refer to: Starter Motor Drive Gear and Flywheel Ring Gear Inspection .
