Fuel Rail: Removal

WARNING: This page is about a different variant/trim than selected.
WARNING: Before working on or disconnecting any of the fuel tubes or fuel system components, relieve the fuel system pressure to prevent accidental spraying of fuel. Fuel in the fuel system remains under high pressure, even when the engine is not running. Failure to follow this instruction may result in serious personal injury.
WARNING: Clean all fuel residue from the engine compartment. If not removed, fuel residue may ignite when the engine is returned to operation. Failure to follow this instruction may result in serious personal injury.
WARNING: Always disconnect the battery ground cable at the battery when working on an evaporative emission (EVAP) system or fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Fuel System Pressure Release .
  2. Refer to: Battery Disconnect and Connect .
  3. Refer to: Air Cleaner Outlet Pipe .
  4. Refer to: Air Cleaner .
  5. Refer to: Air Cleaner Intake Pipe .
    1. Refer to: Spring Lock Couplings .

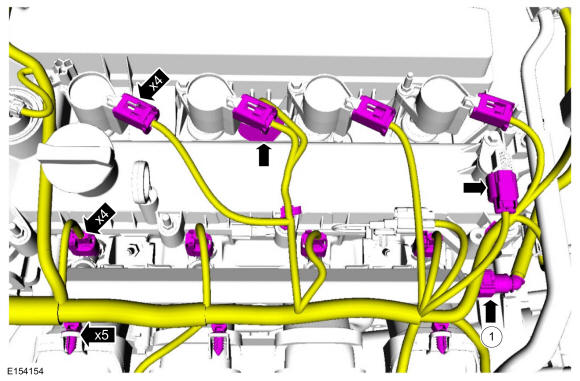

    GFD198118Courtesy of FORD MOTOR COMPANY
  7. Torque: 89 lb.in (10 Nm)

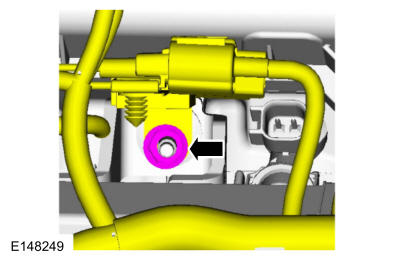

    GFD198119Courtesy of FORD MOTOR COMPANY
  8. Torque: 17 lb.ft (23 Nm)
    GFD197800Courtesy of FORD MOTOR COMPANY
  9. GFD197801Courtesy of FORD MOTOR COMPANY

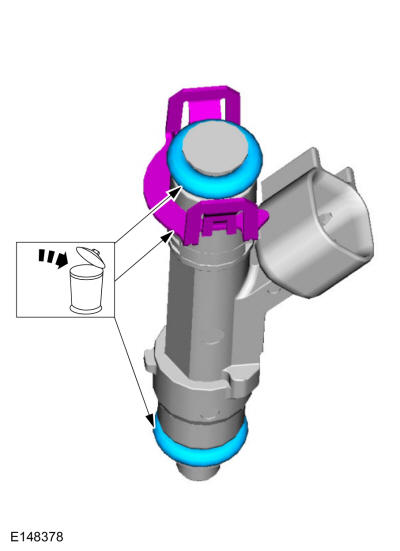

  10. GFD197802Courtesy of FORD MOTOR COMPANY
