Camshaft RH: Removal

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
NOTE: If the RH camshafts are being serviced at the same time as the LH camshafts, remove the RH camshafts first
NOTE: If the components are to be reinstalled, they must be installed in their original locations.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Release the fuel pressure. Refer to: Fuel System Pressure Release .
  3. Evacuate the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R1234YF Refrigerant .
  4. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
  5. NOTE: Use a steering wheel holding device (such as Hunter ® 28-75-1 or equivalent).

    Using a suitable holding tool, hold the steering wheel in the straight-ahead position.

    GFD192353Courtesy of FORD MOTOR COMPANY
  6. NOTE: Do not allow the intermediate shaft to rotate while it is disconnected from the gear or damage to the clockspring can occur. If there is evidence that the intermediate shaft has rotated, the clockspring must be removed and recentered. Refer to Supplemental Restraint System .

    • Remove and discard the steering intermediate shaft bolt.

    • Separate the steering intermediate shaft from the steering gear.

    GFD192354Courtesy of FORD MOTOR COMPANY
  7. Remove and discard the engine oil filter and drain the engine oil. Refer to: Engine Oil Draining and Filling .
  8. Support the cooling module.
    GFD192355Courtesy of FORD MOTOR COMPANY
  9. Drain the engine cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
  10. Remove the front fender splash shields. Refer to: Fender Splash Shield .
  11. Remove the retainers and the underbody shield.
    GFD192356Courtesy of FORD MOTOR COMPANY
  12. If equipped, remove the retainers and the front underbody straps.
    GFD192357Courtesy of FORD MOTOR COMPANY
  13. Remove the retainers and the underbody shields.
    GFD192358Courtesy of FORD MOTOR COMPANY
    • Remove the nut.

    • Remove the bolt.

    • Remove the engine appearance cover.

    • If the engine appearance cover stud bolt is loosened or removed, it must be installed/tightened into the intake manifold.

      Torque: 62 lb. in (7 Nm)

    GFD192359Courtesy of FORD MOTOR COMPANY
  15. Remove the oil level indicator.
    GFD192360Courtesy of FORD MOTOR COMPANY
  16. If equipped, remove the retainer and the wiring harness cover.
    GFD192361Courtesy of FORD MOTOR COMPANY
  17. Disconnect the engine wiring harness electrical connectors and detach the wiring harness retainer.
    GFD192362Courtesy of FORD MOTOR COMPANY
  18. Detach the wiring harness retainer from the engine mount.
    GFD192363Courtesy of FORD MOTOR COMPANY
  19. Remove the following items:

    1. NOTE: It is not necessary to clamp off the degas bottle hose with the cooling system drained.

      Refer to: Degas Bottle .

    2. Refer to: Air Cleaner .
    3. Refer to: Air Cleaner Outlet Pipe LH .
    4. Refer to: Air Cleaner Outlet Pipe RH .
    5. Refer to: Charge Air Cooler (CAC) Intake Pipe .

  20. Loosen the clamps and remove the upper CAC outlet pipe.
    GFD192364Courtesy of FORD MOTOR COMPANY
  21. Remove the following items:

    1. Refer to: Accessory Drive Belt .
    2. Refer to: Air Conditioning (A/C) .
    3. Refer to: Battery Tray .

  22. Remove the stud bolt and position aside the ground cable.
    GFD192365Courtesy of FORD MOTOR COMPANY
    1. Release the tabs.
    2. Lift and position top part of junction box aside.
    GFD192366Courtesy of FORD MOTOR COMPANY
  24. Release the tabs and open the battery cable terminal cover.
    GFD192367Courtesy of FORD MOTOR COMPANY
  25. Remove the nuts and position the wiring harness aside.
    GFD192368Courtesy of FORD MOTOR COMPANY
  26. Remove the ground wire bolt and detach the wiring harness retainers.
    GFD192369Courtesy of FORD MOTOR COMPANY
  27. Disconnect the vacuum tube quick release couplings and position the tube aside. Refer to: Quick Release Coupling .
    GFD192370Courtesy of FORD MOTOR COMPANY
    1. Detach the cable from the transmission control lever.
    2. Remove the bolt and position the cable aside.
    GFD192371Courtesy of FORD MOTOR COMPANY
  29. NOTE: Note the position of the coolant hoses for installation.

    Disconnect the coolant hoses from the heater core. Use the General Equipment: Hose Clamp Remover/Installer

    GFD192372Courtesy of FORD MOTOR COMPANY
    1. Release the clamp and disconnect the lower radiator hose. Use the General Equipment: Hose Clamp Remover/Installer
    2. Release the clamp and disconnect the heater hose. Use the General Equipment: Hose Clamp Remover/Installer
    3. Detach the heater hose retainer.
    4. Remove the bolt and position the heater hose aside.
    GFD192373Courtesy of FORD MOTOR COMPANY
  31. Disconnect the upper radiator hose. Use the General Equipment: Hose Clamp Remover/Installer
    GFD192374Courtesy of FORD MOTOR COMPANY
    1. Remove the ground wire bolt.
    2. Detach the retainers and position the ground wire aside.
    GFD192375Courtesy of FORD MOTOR COMPANY
    1. Position the high-pressure fuel pump noise insulator aside and disconnect the high-pressure fuel pump fuel feed tube quick release coupling. Refer to: Quick Release Coupling .
    2. Disconnect the EVAP tube quick release coupling. Refer to : Quick Release Coupling .
    GFD192376Courtesy of FORD MOTOR COMPANY
  34. Remove the transmission fluid warmer to transmission fluid cooler tube secondary latch.
    GFD192377Courtesy of FORD MOTOR COMPANY
  35. Using the special tool, disconnect the transmission fluid warmer to transmission fluid cooler tube. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).
    GFD192378Courtesy of FORD MOTOR COMPANY
  36. Remove the transmission fluid cooler to transmission cooler bypass valve tube secondary latch.
    GFD192379Courtesy of FORD MOTOR COMPANY
  37. Using the special tool, disconnect the transmission fluid cooler to transmission cooler bypass valve tube. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).
    GFD192380Courtesy of FORD MOTOR COMPANY
  38. Detach and disconnect the engine wiring harness electrical connector.
    GFD192381Courtesy of FORD MOTOR COMPANY
  39. Disconnect the coolant tubes and detach the retainer.
    GFD192382Courtesy of FORD MOTOR COMPANY
  40. Remove the generator nut.
    GFD192383Courtesy of FORD MOTOR COMPANY
    1. Detach the wiring harness retainer.
    2. Position the A/C line bracket from the generator stud.
    GFD192384Courtesy of FORD MOTOR COMPANY
    1. Remove the M8 x 50mm bolt.
    2. Remove the M10 x 43mm bolt.
    3. Remove the M8 x 30mm bolt and the A/C compressor mounting bracket.
    GFD192385Courtesy of FORD MOTOR COMPANY
  43. Remove the front ride height sensors. Refer to : Front Suspension Height Sensor .
  44. Remove the bolt and the LH anti-lock sensor.
    GFD192386Courtesy of FORD MOTOR COMPANY
  45. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Remove the nut and position the LH sway bar link aside.

    GFD192387Courtesy of FORD MOTOR COMPANY
  46. Remove the bolt and the RH anti-lock sensor.
    GFD192388Courtesy of FORD MOTOR COMPANY
  47. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Remove the nut and position the RH sway bar link aside.

    GFD192389Courtesy of FORD MOTOR COMPANY
  48. Remove the nuts and the subframe support bracket.
    GFD192390Courtesy of FORD MOTOR COMPANY
  49. Remove the following items:

    1. NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

      Front brake discs. Refer to : Brake Disc .

    2. Refer to: Exhaust Flexible Pipe .
    3. Refer to: Catalytic Converter LH .
    4. Refer to: Rear Driveshaft .

  50. Remove the oil pan bolts.
    GFD192391Courtesy of FORD MOTOR COMPANY
    1. Using a large flat-bladed screwdriver and the indicated pry pads, release the sealer and separate the oil pan from the bottom of the engine.
    2. NOTE: Do not re Use the oil pan.

      Remove and discard the oil pan.

    GFD192392Courtesy of FORD MOTOR COMPANY
  52. Remove and discard the oil pump seal.
    GFD192393Courtesy of FORD MOTOR COMPANY
  53. NOTE: Do not Use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.

    Make sure that the oil pan sealing surfaces of the cylinder block and engine front cover are free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    GFD192394Courtesy of FORD MOTOR COMPANY
  54. Mark the subframe location.
    GFD192395Courtesy of FORD MOTOR COMPANY
  55. Mark the subframe location.
    GFD192396Courtesy of FORD MOTOR COMPANY
  56. NOTE: Make sure the cooling module is secure.

    Remove the fasteners and the cooling module support panel.

    GFD192397Courtesy of FORD MOTOR COMPANY
  57. NOTE: The boards must be positioned to properly support the engine, transmission and subframe, and allow clearance between the powertrain jack and the exhaust components to prevent damage.

    Position lengths of 2 x 6 boards on the powertrain jack to support the powertrain and subframe. Use the General Equipment: Powertrain Jack Use the General Equipment: Wooden Block

    GFD192398Courtesy of FORD MOTOR COMPANY
  58. Remove the engine-to-transmission bolt.
    GFD192399Courtesy of FORD MOTOR COMPANY
    1. NOTE: Position a board under the cylinder block rail.

      Position the powertrain jack and boards under the powertrain and subframe. Use the General Equipment: Powertrain Jack Use the General Equipment: Wooden Block

    2. Install. Use the General Equipment: Adjustable Mounting Arm
    GFD192400Courtesy of FORD MOTOR COMPANY
  60. Remove and discard the nuts and bolts.

    • Separate the LH knuckle from the strut.

    GFD192401Courtesy of FORD MOTOR COMPANY
  61. Remove and discard the nuts and bolts.

    • Separate the RH knuckle from the strut.

    GFD192402Courtesy of FORD MOTOR COMPANY
    1. Remove and discard the engine mount-to-engine nuts.
    2. Remove and discard the engine mount-to-frame nut.
    3. Remove and discard the engine mount-to-frame bolts.
    4. Remove the engine mount.
    GFD192403Courtesy of FORD MOTOR COMPANY
  63. Remove the nuts, the bolt and the transmission support insulator bracket.
    GFD192404Courtesy of FORD MOTOR COMPANY
  64. Remove and discard the transmission mount bolts.
    GFD192405Courtesy of FORD MOTOR COMPANY
    1. Remove and discard the subframe bolts.
    2. Remove the bolts and the subframe brackets.
    GFD192406Courtesy of FORD MOTOR COMPANY
  66. Remove and discard the subframe bolts.
    GFD192407Courtesy of FORD MOTOR COMPANY
  67. Using the powertrain jack, lower the powertrain and subframe as an assembly. Use the General Equipment: Powertrain Jack
    GFD192408Courtesy of FORD MOTOR COMPANY
    • Disconnect the crankcase pressure sensor electrical connector.

    • Detach the PCV tube retainer.

    GFD192409Courtesy of FORD MOTOR COMPANY
    1. Disconnect the EVAP tube quick release coupling. Refer to: Quick Release Coupling .
    2. Disconnect the EVAP purge valve electrical connector.
    3. Lift the EVAP purge valve off of the intake manifold mounting tab.
    GFD192410Courtesy of FORD MOTOR COMPANY
  70. Disconnect the engine wiring harness electrical connectors and retainers.
    GFD192411Courtesy of FORD MOTOR COMPANY
    1. Remove the vacuum harness pressure sensor bolt.
    2. Disconnect the wiring harness electrical connectors.
    3. Detach the wiring harness and vacuum harness retainers.
    GFD192412Courtesy of FORD MOTOR COMPANY
  72. Detach the wiring harness retainers.
    GFD192413Courtesy of FORD MOTOR COMPANY

    • Disconnect the HO2S electrical connector.

    • Disconnect the CMP electrical connectors.

    • Detach the vacuum hose retainer.

    GFD192414Courtesy of FORD MOTOR COMPANY
    • Slide the insulator up to access the CHT electrical connector.

    • Disconnect the engine wiring harness electrical connectors and detach the harness and vacuum hose retainers.

    GFD192415Courtesy of FORD MOTOR COMPANY
  75. Detach the engine wiring harness and vacuum hose retainers.
    GFD192416Courtesy of FORD MOTOR COMPANY
  76. Remove the bolts and position TC boost solenoid aside.
    GFD192417Courtesy of FORD MOTOR COMPANY
  77. Disconnect the TC vacuum supply hose.
    GFD192418Courtesy of FORD MOTOR COMPANY
  78. Disconnect the oil pressure control solenoid electrical connector.
    GFD192419Courtesy of FORD MOTOR COMPANY
  79. Remove the retainer and the oil pressure control solenoid.
    GFD192420Courtesy of FORD MOTOR COMPANY

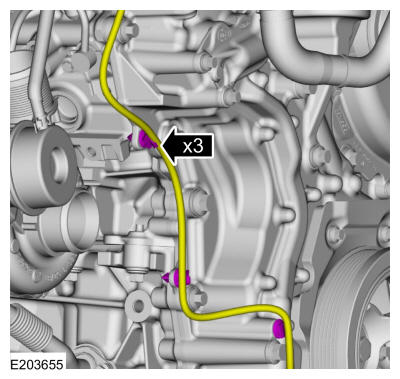

  80. Detach the wiring harness retainers.
    GFD192421Courtesy of FORD MOTOR COMPANY
    1. Disconnect the PCV tube quick release couplings and remove the tube. Refer to: Quick Release Coupling .
    2. Disconnect the throttle body electrical connector.
    GFD192422Courtesy of FORD MOTOR COMPANY
  82. Remove the bolts and the throttle body.
    GFD192423Courtesy of FORD MOTOR COMPANY
  83. Inspect the throttle body gasket and replace as needed.
    GFD192424Courtesy of FORD MOTOR COMPANY

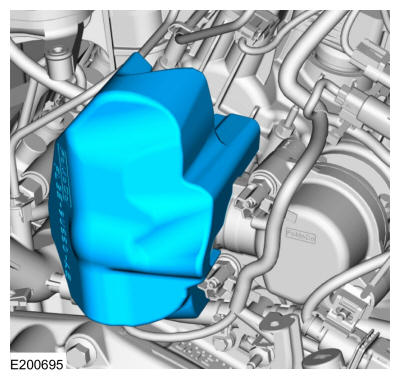

  84. NOTE: When removing or installing the high-pressure fuel pump noise insulator, spreading the openings will reduce the risk of damage.

    Remove the high-pressure fuel pump noise insulator.

    GFD192548Courtesy of FORD MOTOR COMPANY
    • Disconnect the high pressure fuel pump electrical connector.

    • Detach the wiring harness retainers.

    GFD192549Courtesy of FORD MOTOR COMPANY

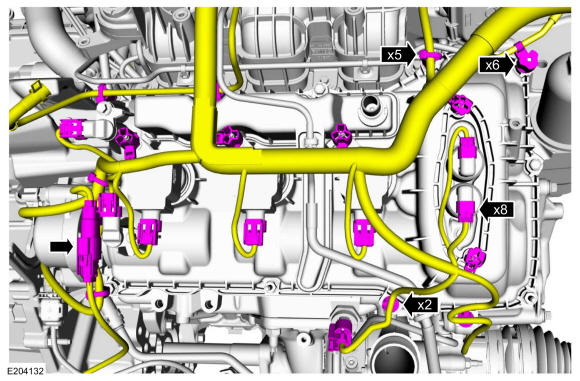

    • Disconnect the engine wiring harness electrical connector and retainers.

    • Detach the vacuum tube and coolant tube retainers.

    GFD192425Courtesy of FORD MOTOR COMPANY
    • Disconnect the TC vacuum supply tube. Use the General Equipment: Hose Clamp Remover/Installer

    • Detach the vacuum tube retainers.

    GFD192426Courtesy of FORD MOTOR COMPANY
  88. Remove the bolts and the coil-on-plug assemblies.
    GFD192427Courtesy of FORD MOTOR COMPANY
  89. Loosen the fasteners and remove the valve cover.
    GFD192428Courtesy of FORD MOTOR COMPANY
  90. Remove and discard the gasket.

    • Clean the valve cover gasket groove with soap and water or a suitable solvent.

    GFD192429Courtesy of FORD MOTOR COMPANY
  91. Inspect the spark plug seals. Remove any damaged seals using the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.
    GFD192430Courtesy of FORD MOTOR COMPANY
  92. NOTE: Do not Use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

    Clean the valve cover mating surface of the cylinder head and engine front cover. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    GFD192431Courtesy of FORD MOTOR COMPANY
  93. Loosen the fasteners and remove the valve cover.
    GFD192432Courtesy of FORD MOTOR COMPANY
  94. Remove and discard the gasket.

    • Clean the valve cover gasket groove with soap and water or a suitable solvent.

    GFD192433Courtesy of FORD MOTOR COMPANY
  95. Inspect the spark plug seals. Remove any damaged seals using the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.
    GFD192434Courtesy of FORD MOTOR COMPANY
  96. NOTE: Do not Use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

    Clean the valve cover mating surface of the cylinder head and engine front cover. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    GFD192435Courtesy of FORD MOTOR COMPANY

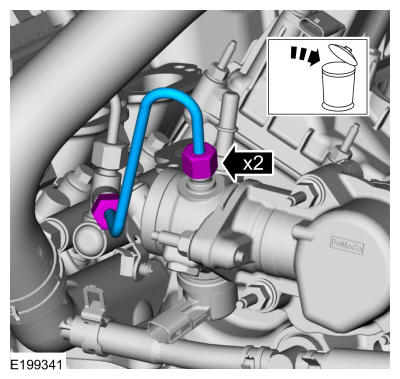

  97. NOTE: To release the fuel pressure in the high-pressure fuel tube, wrap the high-pressure fuel tube flare nuts with a shop towel to absorb any residual fuel pressure during the loosening of high-pressure fuel tube flare nuts.

    • Loosen the high-pressure fuel pump-to-fuel rail high-pressure fuel tube flare nuts.

    • Remove and discard the high-pressure fuel tube.

    GFD192550Courtesy of FORD MOTOR COMPANY
  98. NOTE: Alternately loosen the high-pressure fuel pump nuts one revolution at a time.

    Remove the nuts and the high-pressure fuel pump.

    GFD192551Courtesy of FORD MOTOR COMPANY

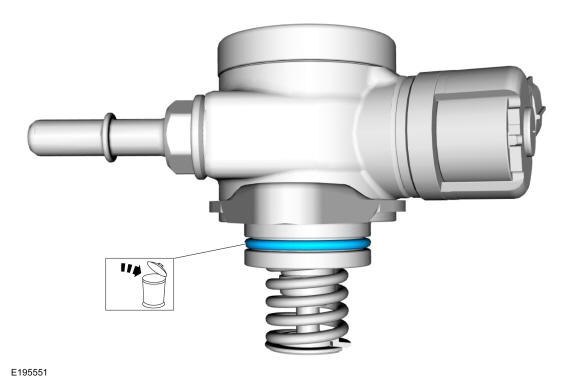

  99. Remove and discard the high-pressure fuel pump O-ring seal.
    GFD192552Courtesy of FORD MOTOR COMPANY

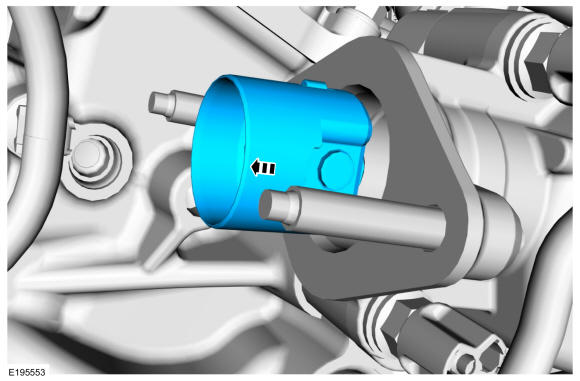

  100. Remove the high-pressure fuel pump tappet.
    GFD192553Courtesy of FORD MOTOR COMPANY
  101. Inspect the high-pressure fuel pump roller tappet. If any flat spots or scoring are found, especially in the indicated areas, then inspect the high-pressure fuel pump and the high-pressure fuel pump roller tappet drive lobe. Install new components as necessary.
    GFD192554Courtesy of FORD MOTOR COMPANY
  102. Remove the stud bolts and the high-pressure fuel pump drive unit.
    GFD192555Courtesy of FORD MOTOR COMPANY
  103. NOTE: Do not Use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

    Clean and inspect the mating surface. Refer to : RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    GFD192556Courtesy of FORD MOTOR COMPANY
  104. Remove the bolt and the idler pulley.
    GFD192436Courtesy of FORD MOTOR COMPANY
  105. Remove the bolt, the stud and position the generator aside.
    GFD192437Courtesy of FORD MOTOR COMPANY
  106. Remove the crankshaft pulley bolt.
    GFD192438Courtesy of FORD MOTOR COMPANY
  107. Using the 3 Leg Puller and a step plate, remove the crankshaft pulley. Use the General Equipment: Three Leg Puller
    GFD192439Courtesy of FORD MOTOR COMPANY
  108. NOTE: Use care not to damage the engine front cover or the crankshaft when removing the seal.

    1. Install the crankshaft pulley bolt.
    2. Using the special tool, remove and discard the crankshaft front oil seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.
    3. NOTE: Retain the original crankshaft pulley bolt for turning the crankshaft while the pulley is removed.

      Remove the crankshaft pulley bolt.

    GFD192440Courtesy of FORD MOTOR COMPANY
  109. Remove the fasteners and the insulator.
    GFD192441Courtesy of FORD MOTOR COMPANY
  110. Remove the bolts and the coolant pump pulley.
    GFD192442Courtesy of FORD MOTOR COMPANY
  111. Remove the bolts and the coolant pump.
    GFD192443Courtesy of FORD MOTOR COMPANY
  112. Remove and discard the coolant pump gasket and seal.
    GFD192444Courtesy of FORD MOTOR COMPANY
  113. NOTE: There are 4 different types of fasteners, note location of each fastener for assembly.

    Remove the engine front cover fasteners.

    GFD192447Courtesy of FORD MOTOR COMPANY
  114. Using a large flat-bladed screwdriver and the indicated pry pads, release the sealer and remove the engine front cover. Use the General Equipment: Flat-Bladed Screwdriver
    GFD192448Courtesy of FORD MOTOR COMPANY
  115. Remove and discard the engine front cover gaskets.
    GFD192449Courtesy of FORD MOTOR COMPANY
  116. Remove and discard the oil gallery seal (6G068).
    GFD192450Courtesy of FORD MOTOR COMPANY

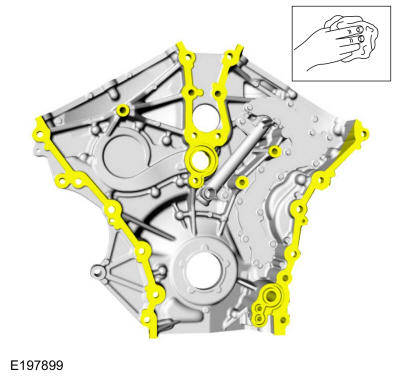

  117. NOTE: Only Use a 3M™ Roloc ® Bristle Disk (2-in white, part number 07528) to clean the engine front cover. Do not Use metal scrapers, wire brushes or any other power abrasive disk to clean front cover.

    • Clean the engine front cover using a 3M™ Roloc ® Bristle Disk (2-in white, part number 07528) in a suitable tool turning at the recommended speed of 15, 000 RPM. Refer to : RTV Sealing Surface Cleaning and Preparation .

    • Thoroughly wash the engine front cover to remove any foreign material, including any abrasive particles created during the cleaning process.

      Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

      Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

      Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    GFD192451Courtesy of FORD MOTOR COMPANY
  118. NOTE: Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages may cause engine failure.
    NOTE: Do not Use wire brushes, power abrasive discs or 3M™ Roloc ® Bristle Disk (2-in white part number 07528) to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. They also cause contamination that will cause premature engine failure. Remove all traces of the gasket.

    Make sure that the mating faces of the engine block are clean and free of foreign material. Refer to : RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    GFD192452Courtesy of FORD MOTOR COMPANY
  119. NOTE: Rotate the crankshaft utilizing only the original crankshaft pulley bolt. Failure to follow this direction may cause damage to the crankshaft and result in engine failure.

    Install the original crankshaft pulley bolt.

    GFD192453Courtesy of FORD MOTOR COMPANY
  120. NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For removal and installation of the RH side the triangle marks are used.

    1. Rotate the crankshaft clockwise.
    2. Position the crankshaft sprocket keyway at the 11 o'clock position.
    3. Verify the triangle  timing marks on the VCT units are at the 2 o'clock (intake) and 11 o'clock (exhaust) positions. If the circle  timing marks are at these positions the crankshaft must be turned clockwise one revolution (360 degrees).

    GFD192454Courtesy of FORD MOTOR COMPANY
  121. Remove the bolts and the RH timing chain tensioner.
    GFD192455Courtesy of FORD MOTOR COMPANY
  122. Remove the RH timing chain tensioner arm.
    GFD192456Courtesy of FORD MOTOR COMPANY
  123. Remove the bolts and the RH timing chain guide.
    GFD192457Courtesy of FORD MOTOR COMPANY
  124. Remove the RH timing chain.
    GFD192458Courtesy of FORD MOTOR COMPANY
    1. Install Special Service Tool: 303-1248 Camshaft holding tools.
    2. Remove and discard the VCT unit bolts.
    3. Remove the VCT units.
    GFD192557Courtesy of FORD MOTOR COMPANY
  126. NOTE: The front camshaft bearing mega cap must be removed first and then the remaining camshaft bearing caps. Failure to follow this direction may result in damage to the engine.

    Remove the bolts and the front camshaft bearing mega cap.

    GFD192558Courtesy of FORD MOTOR COMPANY

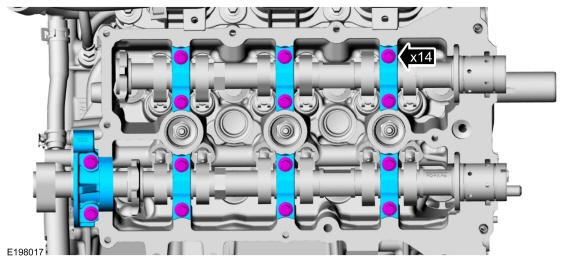

  127. Remove the bolts and the camshaft bearing caps.
    GFD192559Courtesy of FORD MOTOR COMPANY
  128. Remove the intake and exhaust camshafts.
    GFD192560Courtesy of FORD MOTOR COMPANY

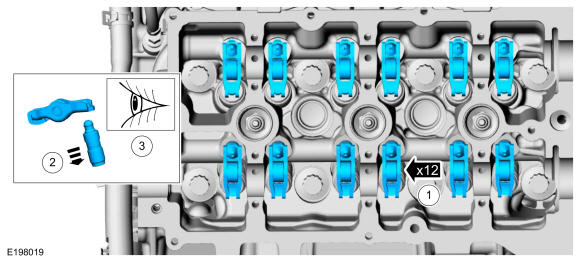

    1. Remove the camshaft roller follower and hydraulic lash adjuster assemblies.
    2. Separate the hydraulic lash adjusters from the spring clips on the camshaft roller followers.
    3. Inspect the hydraulic lash adjuster and roller follower for damage. If any damage is found, inspect the camshaft lobes and valves for damage. Replace damaged components as necessary.
    GFD192561Courtesy of FORD MOTOR COMPANY
scientia non olet · About LEMON Manuals
