Block Heater: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Engine Cooling System Health and Safety Precautions .
- Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
-
NOTE: Make sure the block heater wiring is routed and secured away from rotating or hot components.

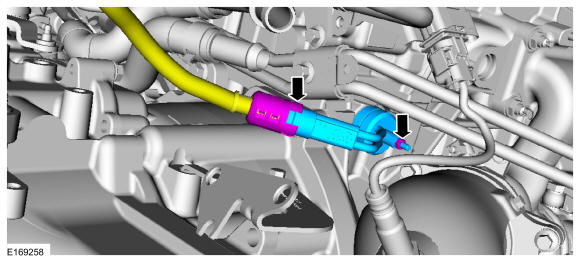

- Disconnect the block heater electrical connector.
- Remove the nut and the block heater.
Torque: 35 lb.in (4 Nm)
