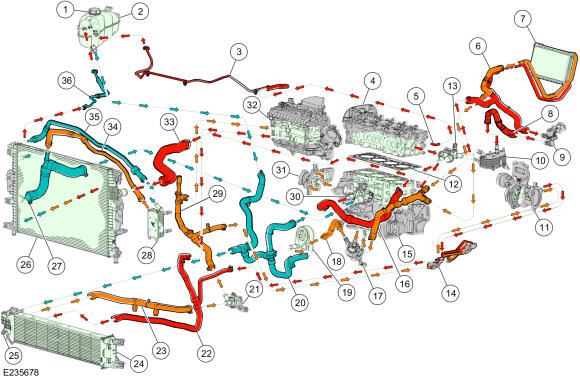

Engine Cooling - Component Location
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | 8100 | Pressure relief cap |
| 2 | 8A080 | Degas bottle |
| 3 | 8A365 | Degas bottle-to-engine hose |
| 4 | 6090 | Cylinder head |
| 5 | 7610 | Cylinder head tube |
| 6 | 18C266 | Heater hose assembly |
| 7 | 18B539 | Heater core |
| 8 | 7G071 | Transmission warmer inlet hose |
| 9 | 18495 | Transmission fluid heater coolant control valve |
| 10 | 7869 | Transmission fluid warmer |
| 11 | 6K682 | Turbocharger |
| 12 | 6051 | Cylinder head gasket |
| 13 | 8K556 | Coolant outlet adapter |
| 14 | 9V454 | Turbocharger tube assembly |
| 15 | 6010 | Cylinder block |
| 16 | 18K580 | Heater outlet hose assembly |
| 17 | 18D473 | Cabin heater coolant pump |
| 18 | 6B856 | Oil cooler inlet hose |
| 19 | 6B856 | Oil cooler |
| 20 | 8C351 | Degas bottle return hose assembly |
| 21 | 8C419 | Charge air cooler coolant pump |
| 22 | 8C481 | Charge air cooler outlet hose |
| 23 | 8B504 | Charge air cooler feed hose |
| 24 | 8D048 | Charge air cooler radiator |
| 25 | 12A648 | Charge air cooler coolant temperature sensor |
| 26 | 8005 | Radiator |
| 27 | 8B273 | Lower radiator hose |
| 28 | 7A095 | Transmission oil cooler |
| 29 | 8C480 | Charge air cooler inlet hose |
| 30 | 9K478 | Thermostat housing |
| 31 | 8501 | Coolant pump |
| 32 | 9L440 | Charge air cooler |
| 33 | 8B274 | Upper radiator hose |
| 34 | 7F120 | Transmission cooler outlet hose |
| 35 | 7G071 | Transmission cooler inlet hose |
| 36 | 8W005 | Degas bottle-to-radiator hose |
