Power Transfer Unit Rear Seal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the PTU/transfer case. Refer to: Power Transfer Unit .

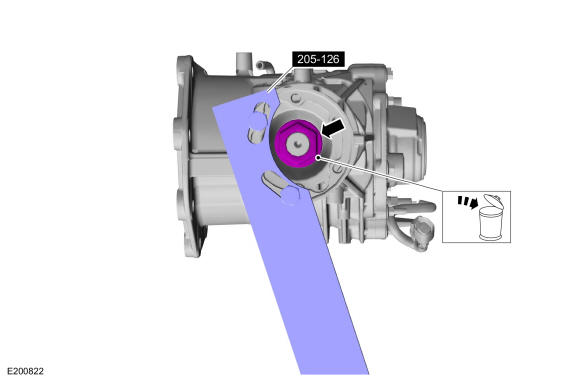

  2. Using the special tool, remove and discard the pinion flange nut.

    Use Special Service Tool: 205-126 (T78P-4851-A) Holding Fixture, Drive Pinion Flange.

    GFD195403Courtesy of FORD MOTOR COMPANY

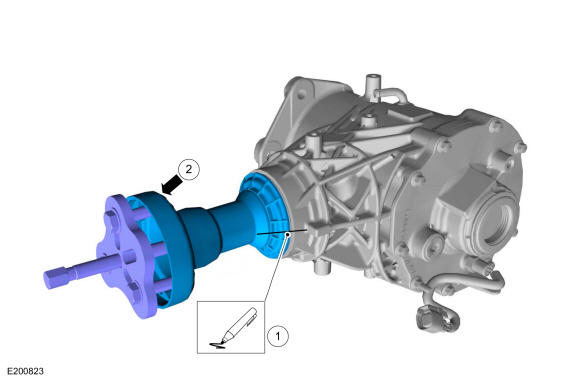

    1. Mark the pinion flange and the transfer case for reassembly.
    2. Using the puller, remove the pinion flange.

      Use the General Equipment: Puller

    GFD195404Courtesy of FORD MOTOR COMPANY

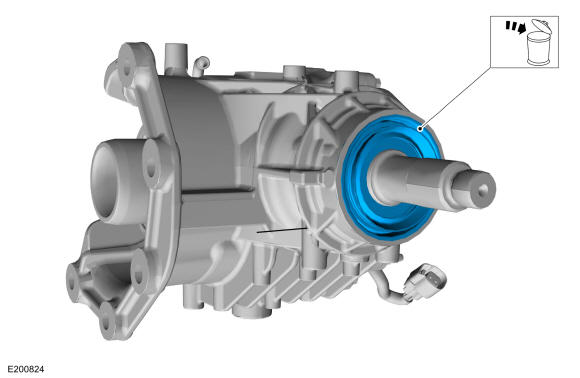

  4. Remove and discard the transfer case rear seal.
    GFD195405Courtesy of FORD MOTOR COMPANY
