Power Transfer Unit

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. If equipped. Remove the underbody shield.
    GFD190251Courtesy of FORD MOTOR COMPANY
  3. Remove the rear driveshaft. Refer to: Rear Halfshaft .

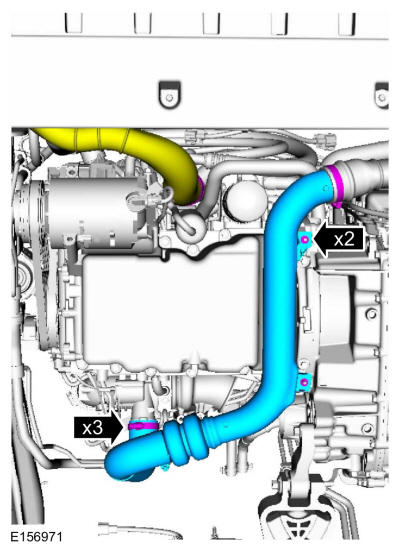

    • Loosen the clamp, remove the nuts and the CAC inlet tube.
    • Loosen the clamp and disconnect the CAC outlet tube.
    GFD195414Courtesy of FORD MOTOR COMPANY
  5. Remove the catalytic converter. Refer to: Catalytic Converter - 1.5L EcoBoost , Catalytic Converter - 2.0L EcoBoost , Catalytic Converter - 2.5L Duratec .

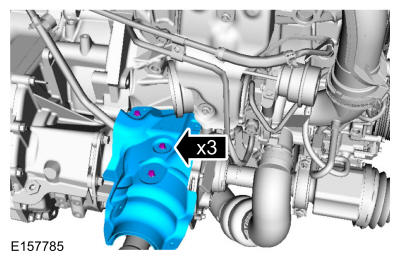

  6. Remove the PTU heat shield bolts and the heat shield.
    GFD195415Courtesy of FORD MOTOR COMPANY
  7. Remove the front halfshaft RH. Refer to: Front Halfshaft RH .

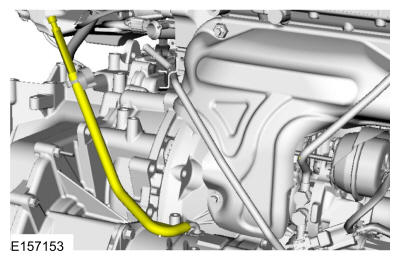

  8. Disconnect the PTU vent hose and position it aside.
    GFD195416Courtesy of FORD MOTOR COMPANY
  9. Remove the PTU drain plug.
    GFD195379Courtesy of FORD MOTOR COMPANY

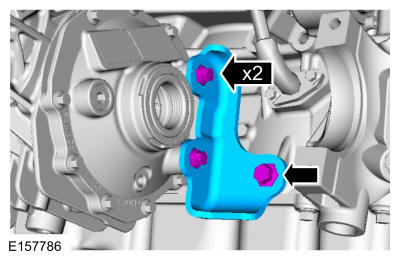

  10. Remove the PTU support bracket and bolts.
    GFD195417Courtesy of FORD MOTOR COMPANY

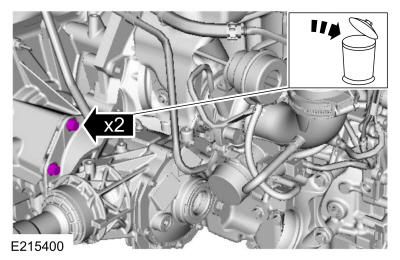

  11. Remove and discard the upper PTU bolts.
    GFD195418Courtesy of FORD MOTOR COMPANY

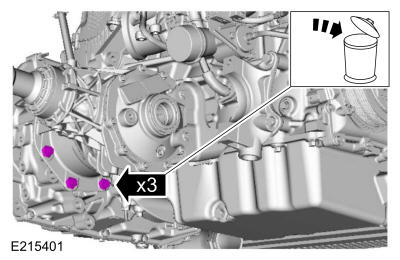

  12. Remove and discard the lower PTU bolts.
    GFD195419Courtesy of FORD MOTOR COMPANY

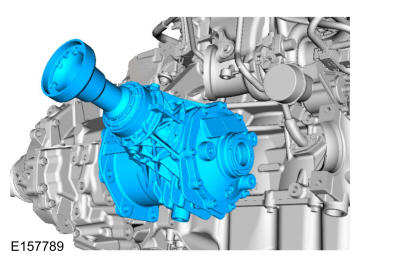

  13. Remove the PTU.
    GFD195420Courtesy of FORD MOTOR COMPANY
