Power Transfer Unit Rear Seal: Installation

WARNING: This page is about a different variant/trim than selected.

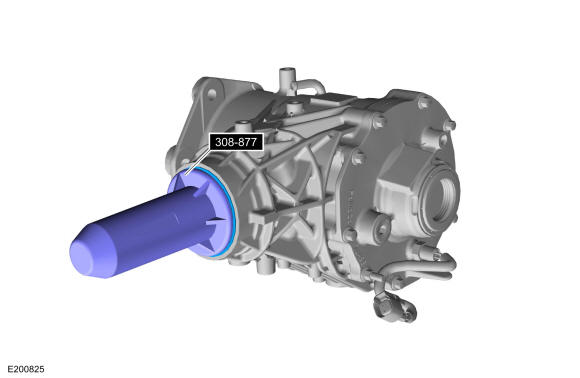

Using the special tool, install a new rear seal.
Use Special Service Tool: 308-877 Installer, Pinion Output Seal.

Courtesy of FORD MOTOR COMPANY

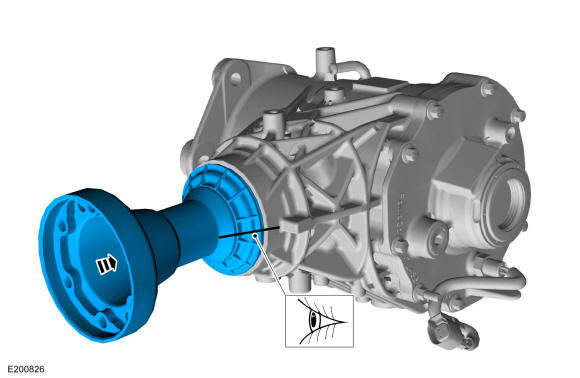

Align the marks, install the pinion flange.

Courtesy of FORD MOTOR COMPANY

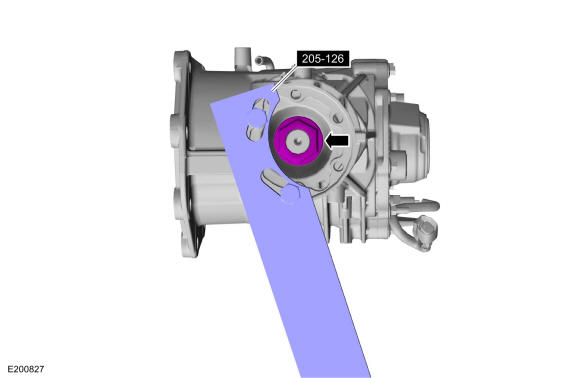

Using the special tool, install a new pinion flange nut.
Use Special Service Tool: 205-126 (T78P-4851-A) Holding Fixture, Drive Pinion Flange.

Torque: 173 lb.ft (235 Nm)

Courtesy of FORD MOTOR COMPANY
Install the PTU/transfer case. Refer to: Power Transfer Unit .
