Power Transfer Unit Input Shaft Seal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the PTU/transfer case. Refer to: Power Transfer Unit .

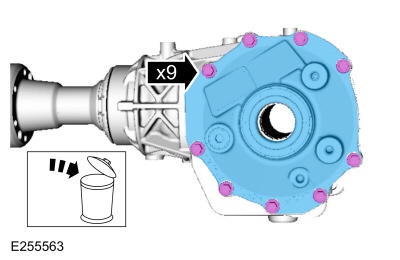

  2. Remove and discard the PTU cover bolts and remove the PTU cover.
    GFD195392Courtesy of FORD MOTOR COMPANY

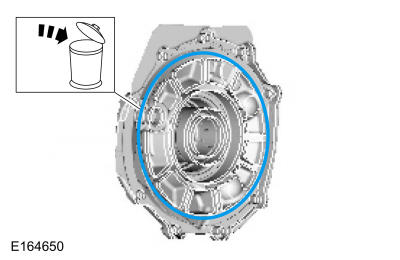

  3. Remove and discard the PTU cover O-ring seal.
    GFD195393Courtesy of FORD MOTOR COMPANY
  4. Remove and discard the RH input shaft seal.
    GFD195394Courtesy of FORD MOTOR COMPANY
  5. Remove the input shaft.
    GFD195395Courtesy of FORD MOTOR COMPANY

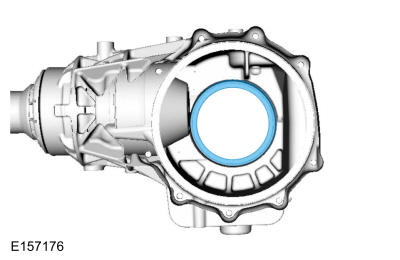

  6. Remove and discard the LH input shaft seal.
    GFD195396Courtesy of FORD MOTOR COMPANY
