Power Transfer Unit Input Shaft Seal: Installation
WARNING: This page is about a different variant/trim than selected.
- Using the special tools, install a new LH input shaft seal.

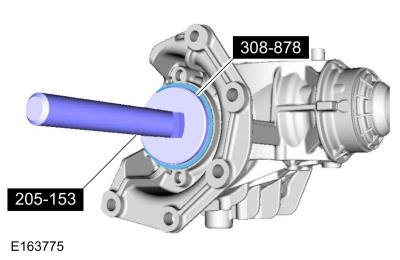

Use Special Service Tool: 308-878 Installer, Input Seal, 205-153 (T80T-4000-W) Handle.
- Install the input shaft.
-
NOTE: The seal is correctly installed if it is flush with the transfer case cover.
Using the special tools, install a new RH input shaft seal.

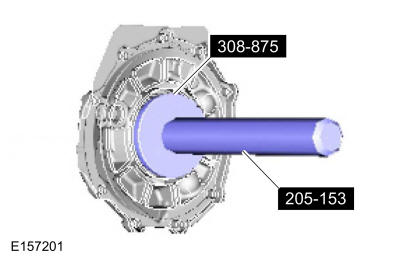

Use Special Service Tool: 308-875 Installer, Inboard Cover Seal, 205-153 (T80T-4000-W) Handle.

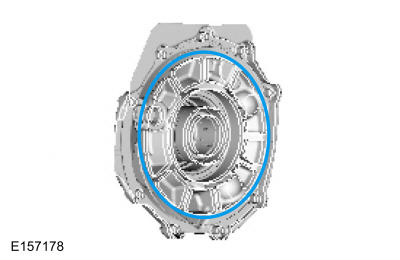

- Install a new PTU cover O-ring seal.

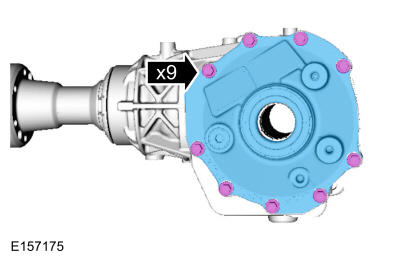

- Install the PTU cover and the new PTU cover bolts.
Torque:
- Stage 1: 115 lb.in (13 Nm)
- Stage 2: 45 °
NOTE: Hand start bolts for the first three threads to ensure cross-threading does not occur. - Install the PTU/transfer case. Refer to: Power Transfer Unit .
