Power Transfer Unit Input Shaft Seal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the PTU/transfer case. Refer to:Power Transfer Unit .

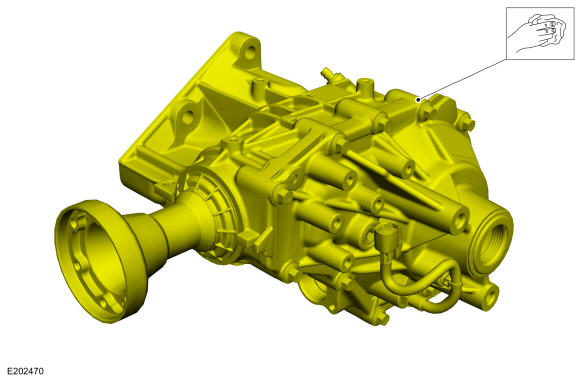

  2. Clean the PTU assembly.
    GFD195439Courtesy of FORD MOTOR COMPANY

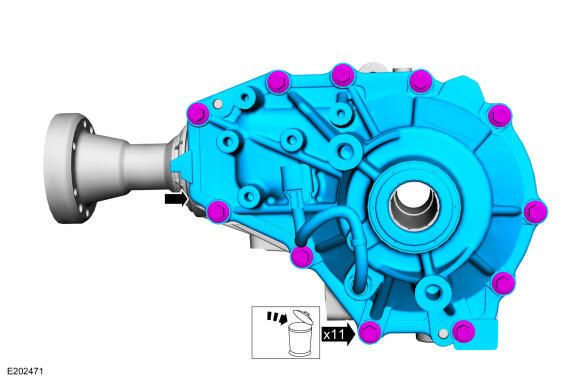

  3. Remove and discard the PTU cover bolts and remove PTU cover.
    GFD195440Courtesy of FORD MOTOR COMPANY

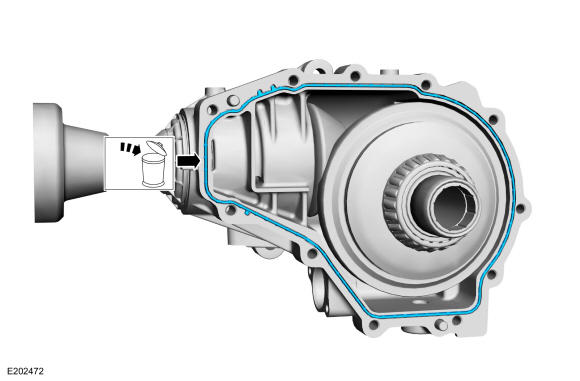

  4. Remove and discard the PTU cover O-ring seal.
    GFD195441Courtesy of FORD MOTOR COMPANY

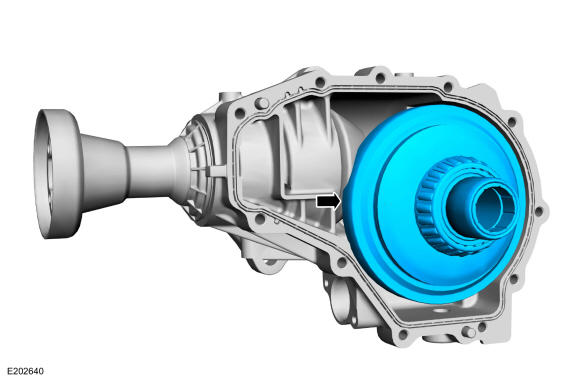

  5. Remove the input shaft assembly.
    GFD195442Courtesy of FORD MOTOR COMPANY

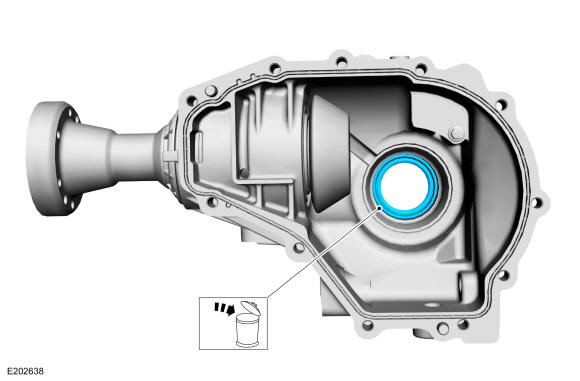

  6. Remove the LH input shaft seal.
    GFD195443Courtesy of FORD MOTOR COMPANY

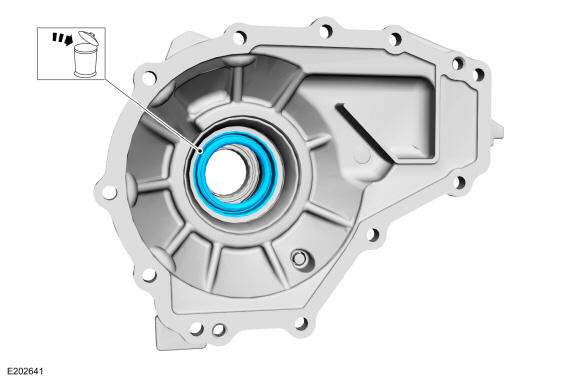

  7. Remove the RH input shaft seal.
    GFD195444Courtesy of FORD MOTOR COMPANY
