Power Transfer Unit

Special Tool(s) / General Equipment

1. Remove the RH halfshaft. Refer to: Front Halfshaft RH .
2. Remove the RH roll restrictor. Refer to: Roll Restrictor RH .
3. Remove the driveshaft. Refer to: Rear Driveshaft .
4. Remove the RH catalytic converter. Refer to: Catalytic Converter RH .
5. Remove the LH catalytic converter. Refer to: Catalytic Converter LH .

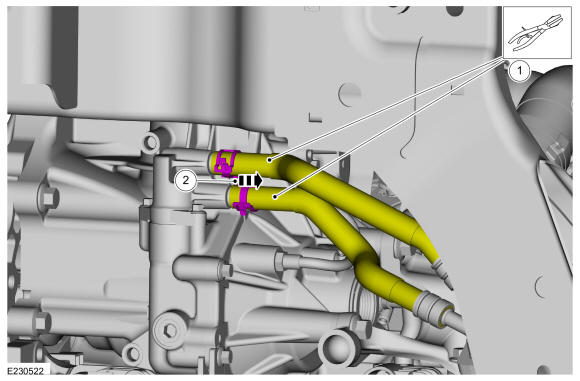

6. Disconnect the PTU cooler lines.
   • Using hose clamp pliers, pinch both PTU cooler lines.

     Use the General Equipment: Hose Clamp(s)

   • Disconnect the PTU cooler lines.

   Courtesy of FORD MOTOR COMPANY

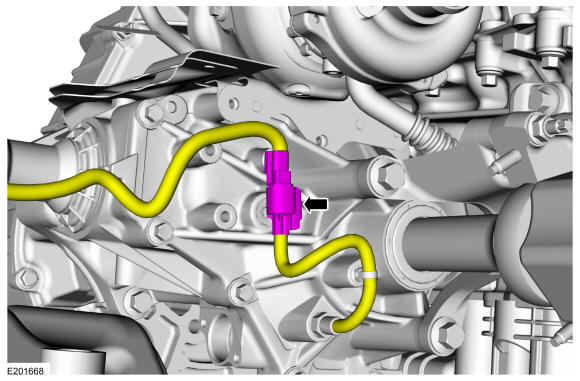

7. Disconnect the PTU temperature sensor.

   Courtesy of FORD MOTOR COMPANY

8. Remove the PTU heat shield bolts and the PTU heat shield.

   Courtesy of FORD MOTOR COMPANY

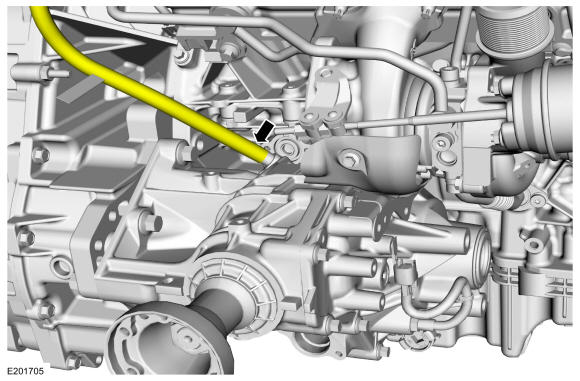

9. Disconnect and position aside the PTU vent hose.

   Courtesy of FORD MOTOR COMPANY

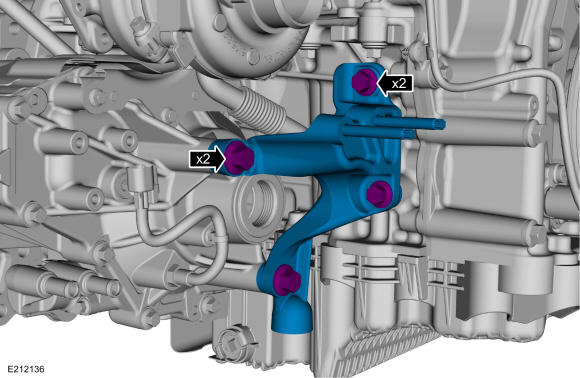

10. Remove the PTU support bracket bolts and the PTU support bracket.

    Courtesy of FORD MOTOR COMPANY

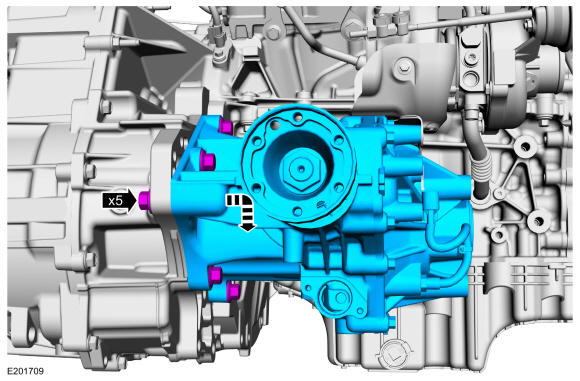

11. Remove the PTU bolts and the PTU.

    Courtesy of FORD MOTOR COMPANY

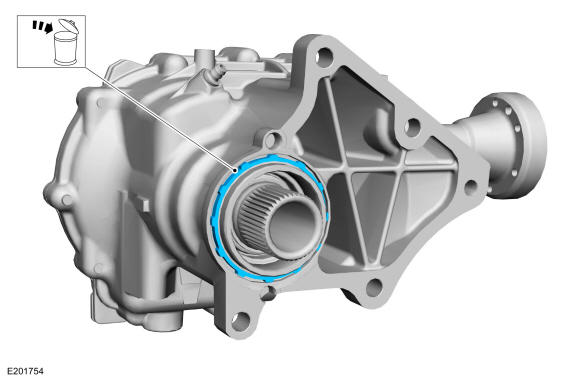

12. Remove and discard the PTU to transmission compression seal.
