Power Transfer Unit Input Shaft Seal: Installation

WARNING: This page is about a different variant/trim than selected.

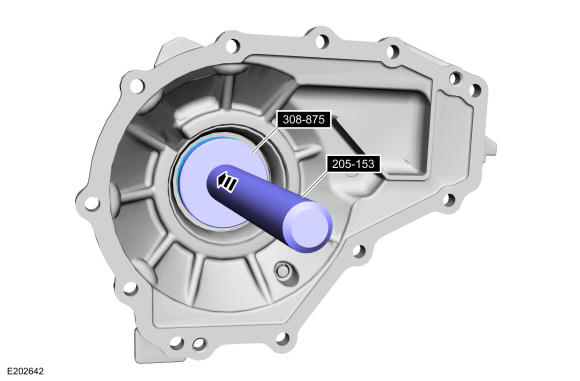

Using the special tool, install the RH input shaft seal.
Use Special Service Tool: 205-153 (T80T-4000-W) Handle.

Courtesy of FORD MOTOR COMPANY

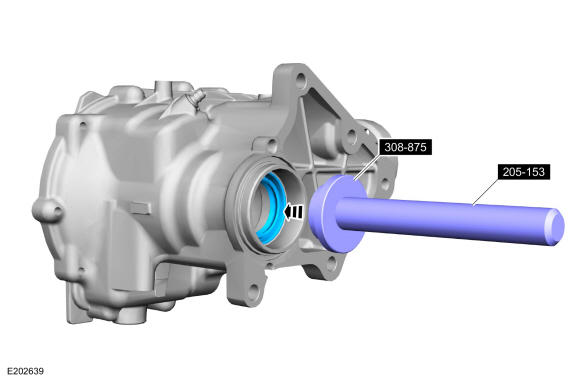

Using the special tool, install the LH input shaft seal.
Use Special Service Tool: 205-153 (T80T-4000-W) Handle.

Courtesy of FORD MOTOR COMPANY
Install the input shaft assembly.

Courtesy of FORD MOTOR COMPANY

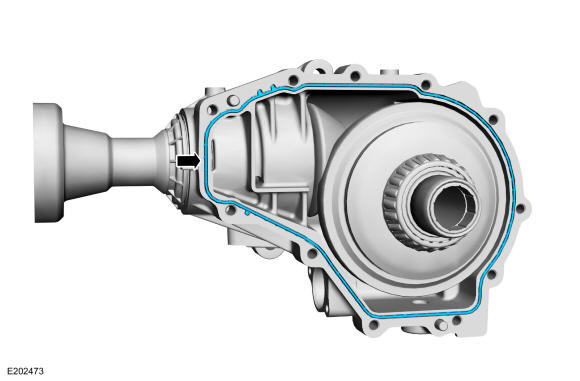

Install the new PTU cover O-ring seal.

Courtesy of FORD MOTOR COMPANY

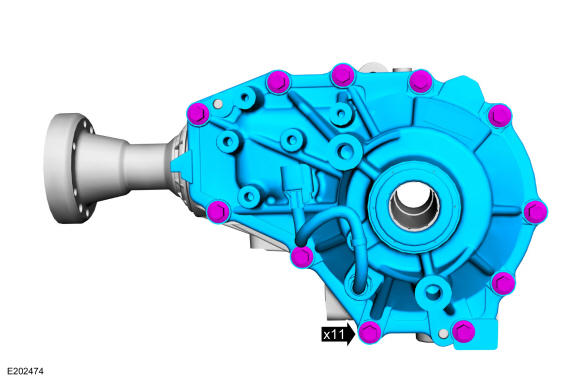

Install the PTU cover and the new PTU cover bolts.
Torque:
- Stage 1: 26 lb.ft (35 Nm)
- Stage 2: 45 °
Courtesy of FORD MOTOR COMPANY
Install the PTU/transfer case. Refer to: Power Transfer Unit .
