Power Transfer Unit
WARNING: This page is about a different variant/trim than selected.
Special Tool(s) / General Equipment
| Hose Clamp(s) |
|---|

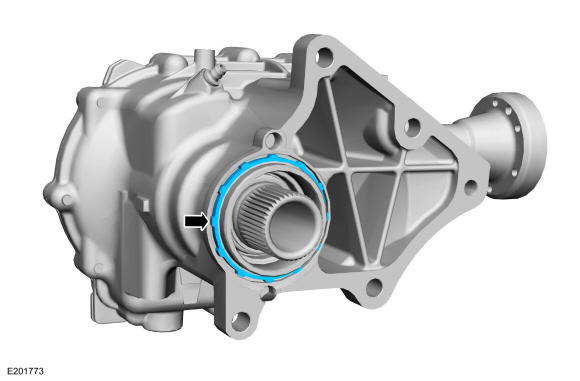

- Install the new PTU to transmission compression seal.

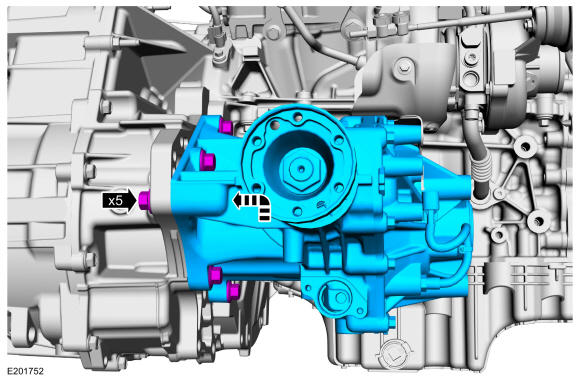

- Install the PTU and the PTU bolts.
Torque: 66 lb.ft (90 Nm)
- Install the PTU support bracket and the PTU support bracket bolts.
Torque:
- PTU support bracket to block: 35 lb.ft (48 Nm)
- PTU support bracket to PTU: 59 lb.ft (80 Nm)
- Connect the PTU vent hose.
- Install the PTU heat shield and the PTU heat shield bolts.
Torque: 97 lb.in (11 Nm)
- Connect the PTU temperature sensor.

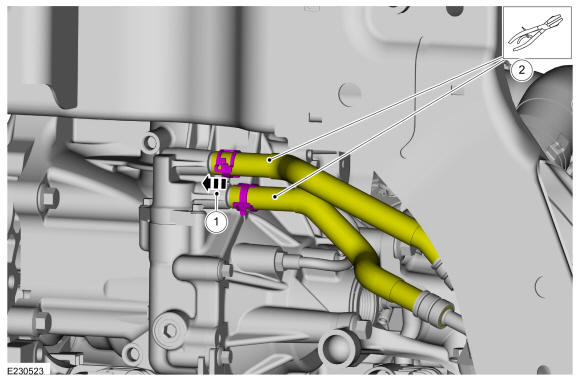

- Connect the PTU cooler lines.
- Connect the PTU cooler lines.
- Remove the hose clamp pliers form the PTU cooler lines.
Use the General Equipment: Hose Clamp(s)
- Install the LH catalytic converter. Refer to: Catalytic Converter LH .
- Install the RH catalytic converter. Refer to: Catalytic Converter RH .
- Install the driveshaft. Refer to: Rear Driveshaft .
- Install the RH roll restrictor. Refer to: Roll Restrictor RH .
- Install the RH halfshaft. Refer to: Front Halfshaft RH .
- Check the PTU fluid level. Refer to: Power Transfer Unit Fluid Level Check .
