Removal And Installation: Transmission: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the following items:

    1. Refer to: Battery Tray .
    2. Refer to: Air Cleaner Outlet Pipe LH .
    3. Refer to: Air Cleaner Outlet Pipe RH .
    4. Refer to: Charge Air Cooler (CAC) Intake Pipe .

  3. Remove the front subframe. Refer to: Front Subframe .
  4. Remove the power transfer unit. Refer to: Power Transfer Unit .

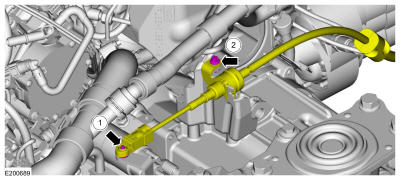

    1. Disconnect the cable from the manual control lever.
    2. Remove the bolt and position the cable aside.
    GFD194830Courtesy of FORD MOTOR COMPANY

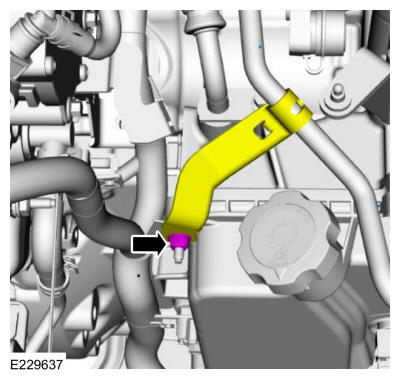

  6. Remove the nut from the transmission fluid cooler tube bracket.
    GFD194831Courtesy of FORD MOTOR COMPANY
  7. Remove the transmission fluid warmer to transmission fluid cooler tube secondary latch.
    GFD192377Courtesy of FORD MOTOR COMPANY
  8. Using the special tool, disconnect the transmission fluid warmer to transmission fluid cooler tube. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).
    GFD192378Courtesy of FORD MOTOR COMPANY

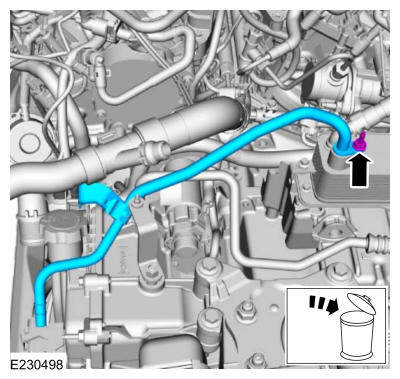

  9. Remove and discard the bolt and remove the transmission fluid warmer to transmission fluid cooler tube.
    GFD194832Courtesy of FORD MOTOR COMPANY

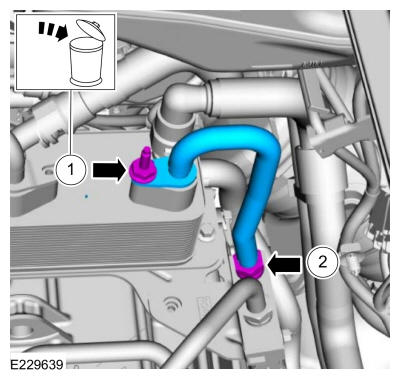

  10. Remove the transmission fluid warmer to cooler bypass cooler tube.

    1. Remove and discard the bolt.
    2. Loosen the fitting and remove the transmission fluid warmer to cooler bypass cooler tube.

    GFD194833Courtesy of FORD MOTOR COMPANY
  11. Inspect the transmission fluid warmer to be sure that the transmission fluid cooler tube seals and backing rings were removed with the transmission fluid cooler tubes and are not stuck in the transmission fluid warmer. If the transmission fluid cooler tube seals or backing rings are stuck in the transmission fluid warmer, remove the seals and backing rings.
    GFD194834Courtesy of FORD MOTOR COMPANY

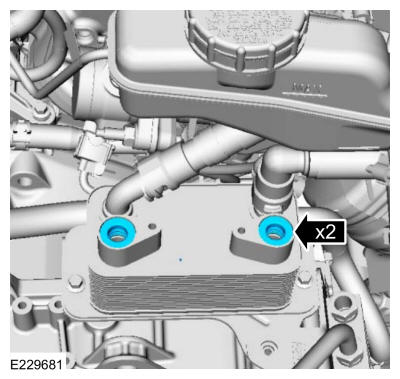

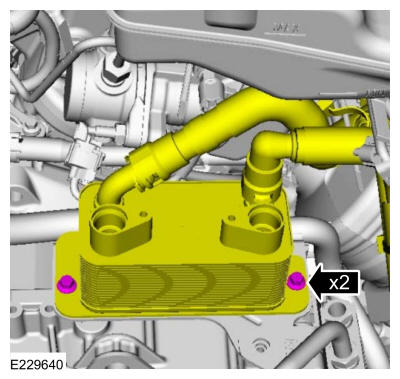

  12. Remove the bolts and position aside the transmission fluid warmer.
    GFD194835Courtesy of FORD MOTOR COMPANY
  13. Remove the starter motor. Refer to: Starter Motor .

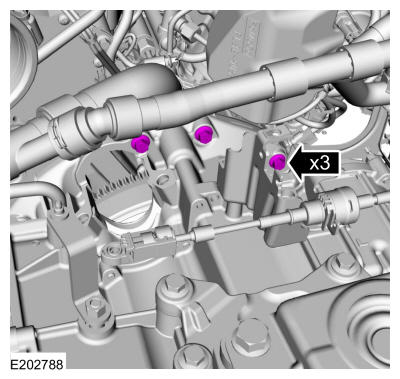

  14. Remove the upper transmission-to-engine bolts.
    GFD194836Courtesy of FORD MOTOR COMPANY

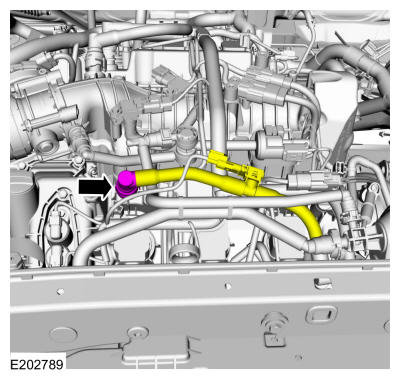

  15. Disconnect the PCV tube and position aside.
    GFD194837Courtesy of FORD MOTOR COMPANY

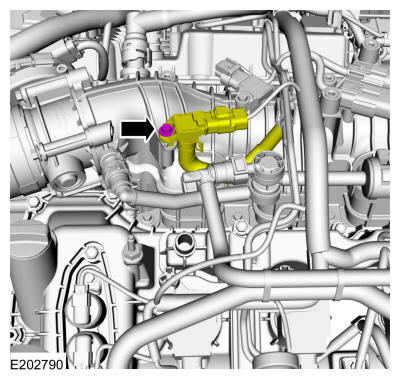

  16. Remove the bolt and position aside the vacuum harness pressure sensor.
    GFD194838Courtesy of FORD MOTOR COMPANY
    1. Remove the ground wire bolt from the RH cylinder head.
    2. Detach the retainers and position the ground wire aside.
    GFD192375Courtesy of FORD MOTOR COMPANY

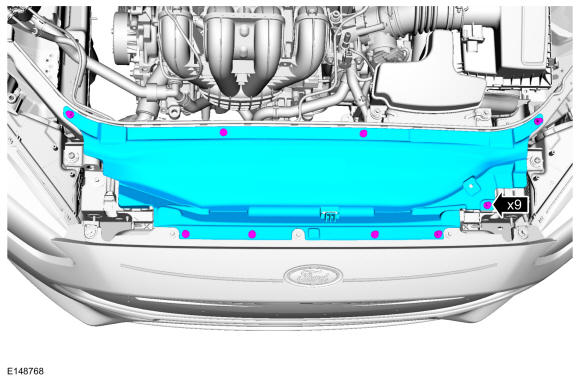

  18. Remove the pin-type retainers and the radiator sight shield.
    GFD194839Courtesy of FORD MOTOR COMPANY

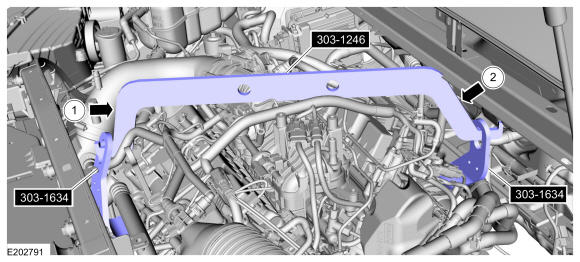

  19. Install the special tools on the engine.

    1. Straight side of the special tool.
    2. Sloped side of the special tool. Use Special Service Tool: 303-1246 Engine Spreader Bar., 303-1634 Lift Eyes (2).

    GFD194840Courtesy of FORD MOTOR COMPANY

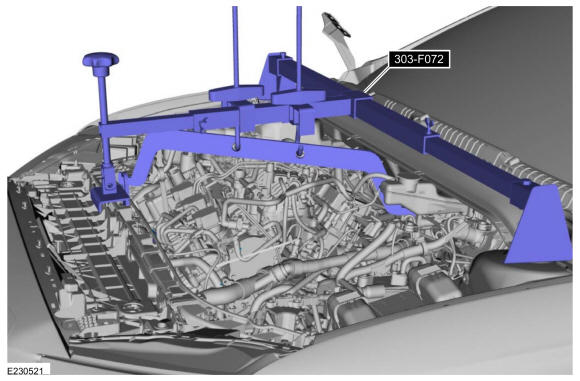

  20. Using the special tools, support the engine. Use Special Service Tool: 303-F072 Support Bar, Engine.
    GFD194841Courtesy of FORD MOTOR COMPANY
  21. Remove the nuts, the bolt and the transmission support insulator bracket.
    GFD192404Courtesy of FORD MOTOR COMPANY

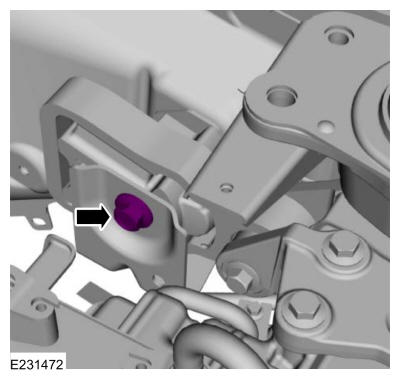

  22. Remove the rear roll restrictor bolt.
    GFD194842Courtesy of FORD MOTOR COMPANY

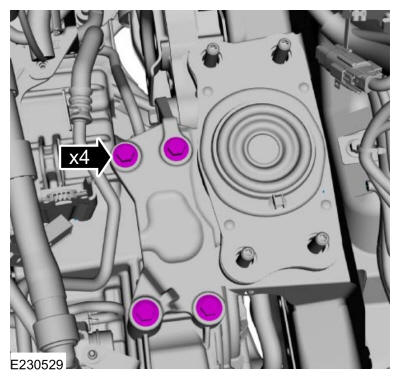

  23. Remove the transmission support insulator bolts.
    GFD194843Courtesy of FORD MOTOR COMPANY

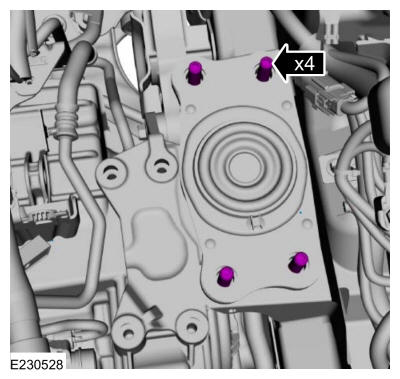

  24. Remove the transmission support insulator studs.
    GFD194844Courtesy of FORD MOTOR COMPANY

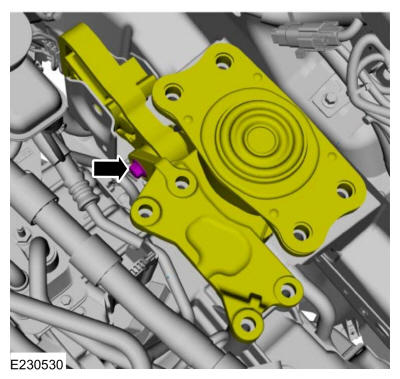

  25. Remove the roll restrictor through bolt.
    GFD194845Courtesy of FORD MOTOR COMPANY

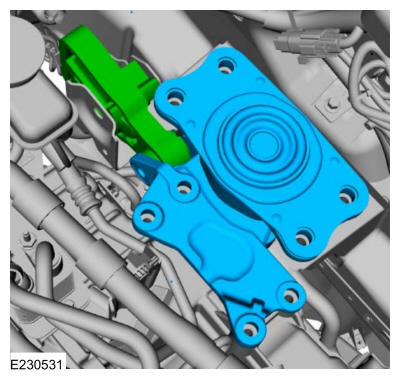

  26. Remove the roll restrictor and the transmission support insulator.
    GFD194846Courtesy of FORD MOTOR COMPANY
  27. Remove the transmission fluid cooler to transmission cooler bypass valve tube secondary latch.
    GFD192379Courtesy of FORD MOTOR COMPANY
  28. Using the special tool, disconnect the transmission fluid cooler to transmission cooler bypass valve tube. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).
    GFD192380Courtesy of FORD MOTOR COMPANY

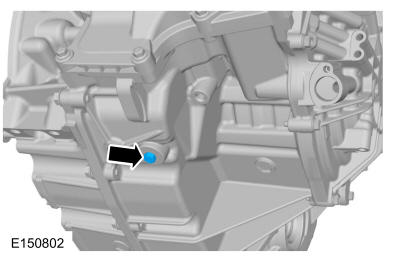

  29. NOTE: If transmission disassembly or installation of a new transmission is necessary, drain the transmission fluid.

    Remove the drain plug and drain the transmission. Install the drain plug.

    Torque: 106 lb.in (12 Nm)

    GFD194847Courtesy of FORD MOTOR COMPANY

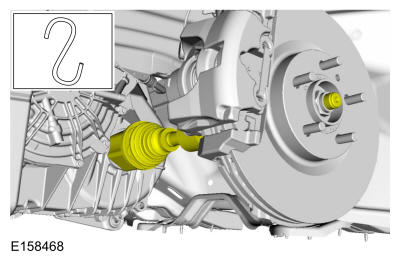

  30. Position aside and support the LH halfshaft.
    GFD194848Courtesy of FORD MOTOR COMPANY
  31. Remove and discard the halfshaft retaining circlip.
    GFD194849Courtesy of FORD MOTOR COMPANY

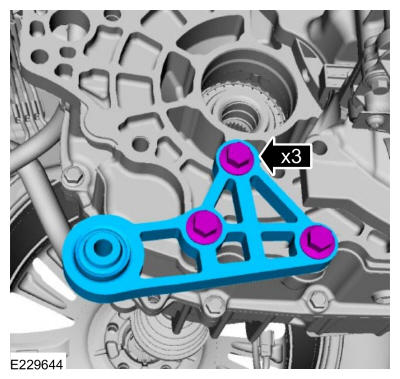

  32. Remove the bolts and remove the roll restrictor bracket.
    GFD194850Courtesy of FORD MOTOR COMPANY

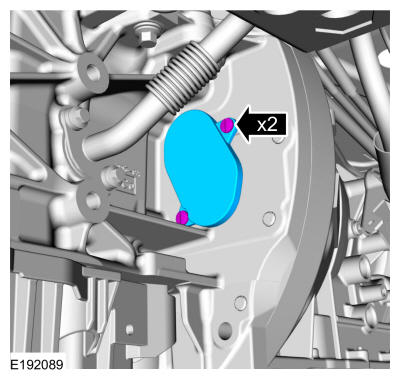

  33. Remove the retainers and the access cover.
    GFD194851Courtesy of FORD MOTOR COMPANY

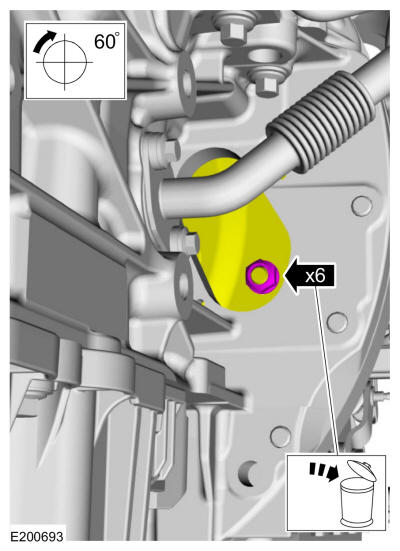

  34. NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.

    Remove and discard the torque converter nuts.

    GFD194852Courtesy of FORD MOTOR COMPANY

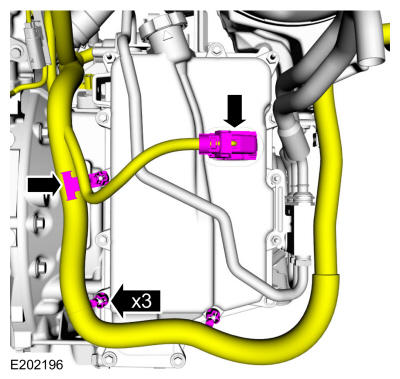

  35. Disconnect the electrical connector and wiring harness retainers.
    GFD194853Courtesy of FORD MOTOR COMPANY

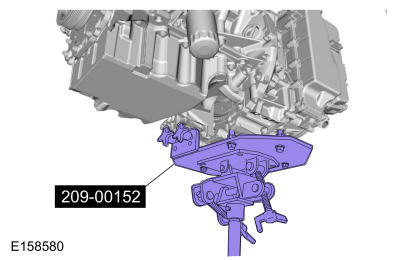

  36. NOTE: Secure the transmission to the transmission jack with a safety strap.

    Support the transmission with a transmission jack. Use the General Equipment: Transmission Jack

    GFD194854Courtesy of FORD MOTOR COMPANY

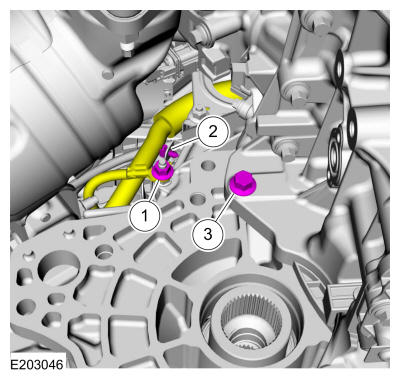

    1. Remove the ground cable nut.
    2. Disconnect the wiring harness retainer.
    3. If equipped, remove the RH transmission-to-engine bolt.
    GFD194855Courtesy of FORD MOTOR COMPANY

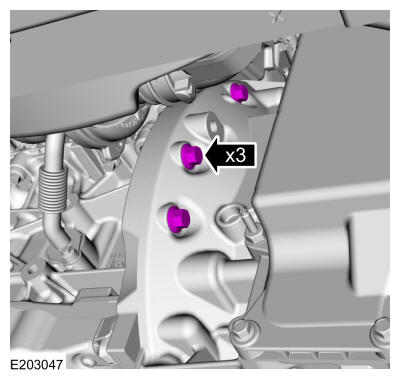

  38. Remove the LH transmission-to-engine bolts.
    GFD194856Courtesy of FORD MOTOR COMPANY

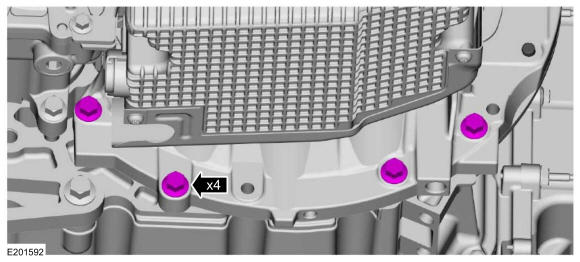

  39. Remove the lower transmission-to-engine bolts.
    GFD194857Courtesy of FORD MOTOR COMPANY

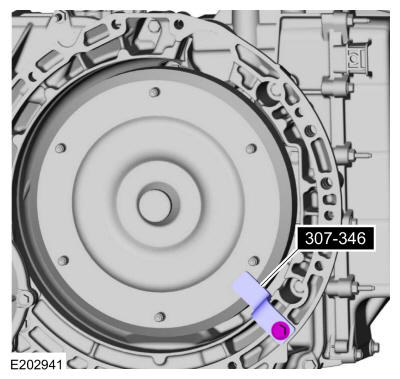

  40. Separate the transmission from the engine and install the special tool and remove the transmission. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.
    GFD194858Courtesy of FORD MOTOR COMPANY

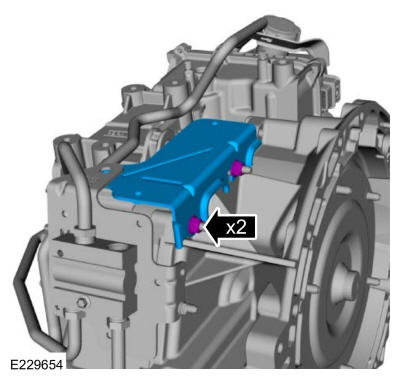

  41. Remove the transmission fluid warmer bracket.
    GFD194859Courtesy of FORD MOTOR COMPANY

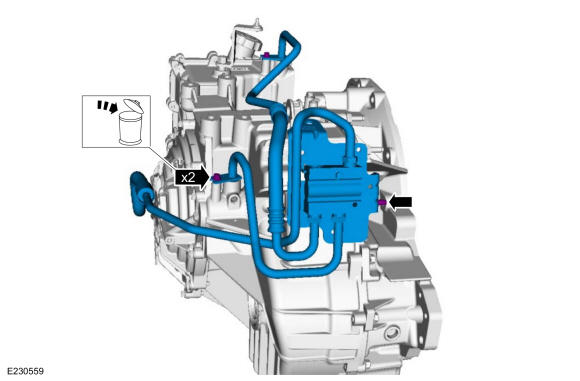

  42. NOTE: If transmission disassembly or installation of a new transmission is necessary, remove the transmission mounted transmission fluid cooler tubes.

    Remove and discard the bolts, remove the nut and the transmission mounted transmission fluid cooler tubes.

    GFD194860Courtesy of FORD MOTOR COMPANY

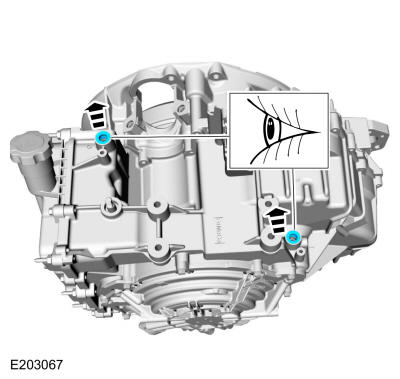

  43. Inspect the transmission case to be sure that the transmission fluid cooler tube seals and backing rings were removed with the transmission fluid cooler tubes and are not stuck in the transmission case. If the transmission fluid cooler tube seals or backing rings are stuck in the transmission case, remove the seals and backing rings.
    GFD194861Courtesy of FORD MOTOR COMPANY
  44. NOTE: Failure to clean the transmission fluid cooler tubes can result in transmission failure.

    If the transmission is to be overhauled or if installing a new or re-manufactured transmission, carryout the transmission fluid cooler backflushing and cleaning. Clean the transmission-mounted transmission fluid cooler tubes by hand. Refer to: Transmission Fluid Cooler - Backflushing And Cleaning .
