Removal And Installation: Transmission: Installation

WARNING: This page is about a different variant/trim than selected.

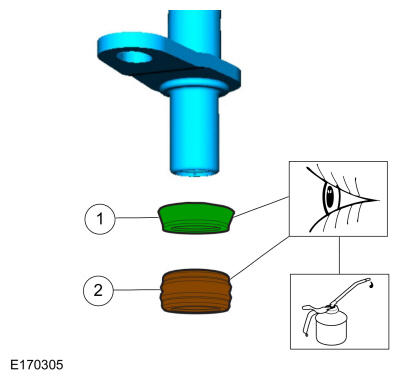

  1. NOTE: If removed, inspect the transmission mounted transmission fluid cooler tube backing rings and seals for damage and install new backing rings or seals if necessary.

    1. Install the backing ring (7J324)
    2. Lubricate and install the seal (7D258)

      Material: Motorcraft ® MERCON ® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON ® LV) (WSS-M2C938-A)

    GFD194862Courtesy of FORD MOTOR COMPANY

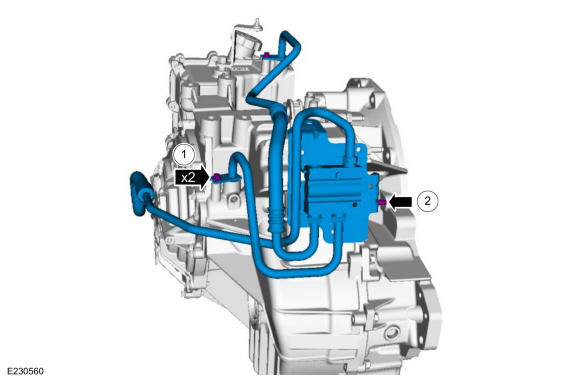

  2. Install the transmission mounted transmission fluid cooler tubes, the new bolts and nut.

    1. Torque: 97 lb.in (11 Nm)
    2. Torque: 80 lb.in (9 Nm)

    GFD194863Courtesy of FORD MOTOR COMPANY
  3. Install the transmission fluid warmer bracket and nuts.

    Torque: 80 lb.in (9 Nm)

    GFD194859Courtesy of FORD MOTOR COMPANY

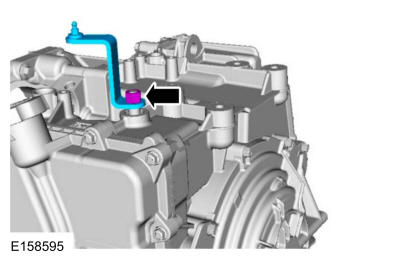

  4. NOTE: Make sure that when installing the manual control lever, it is fully seated onto the manual control lever shaft. Damage to the manual control lever shaft will occur and the manual lever will come loose.
    NOTE: Make sure to hold the manual control lever while tightening the manual control lever nut or damage to the manual control lever and park components will occur.

    Install the manual control lever and nut.

    Torque: 159 lb.in (18 Nm)

    GFD194864Courtesy of FORD MOTOR COMPANY

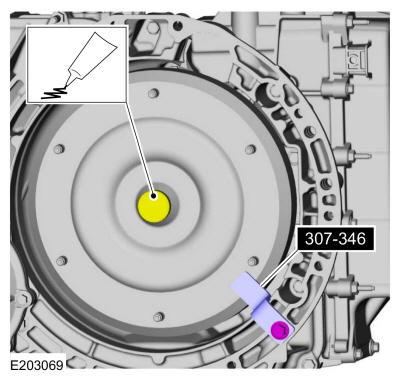

  5. Lubricate the torque converter pilot hub with Multi-Purpose Grease. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

    Material: Motorcraft ® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

    GFD194865Courtesy of FORD MOTOR COMPANY

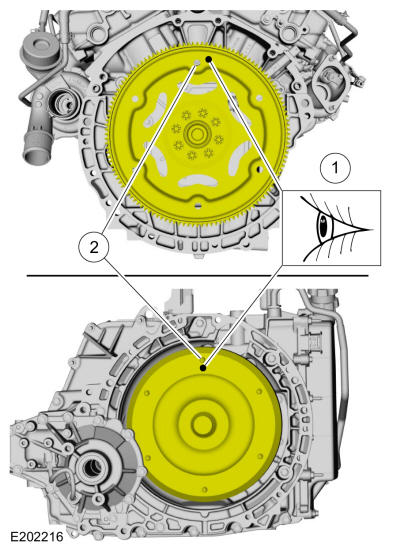

    1. Inspect the torque converter stud and flexplate for paint marks.
    2. Align the torque converter stud and flexplate hole near the paint marks to the 12 o'clock position.
    GFD194866Courtesy of FORD MOTOR COMPANY

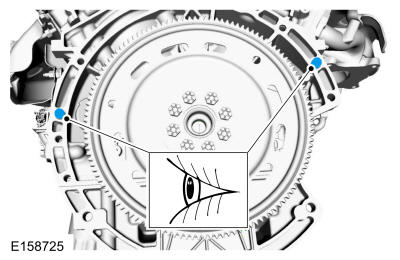

  6. NOTE: If the transmission is not positioned on the dowel pins, damage to the transmission may occur.

    If the dowel pins were pulled out of the engine block during removal, install new dowel pins in the engine block.

    GFD194867Courtesy of FORD MOTOR COMPANY
  7. NOTE: Secure the transmission to the transmission jack with a safety strap.

    Using a transmission jack, support the transmission. Use the General Equipment: Transmission Jack

    GFD194854Courtesy of FORD MOTOR COMPANY
  8. Position the transmission behind the engine and remove the special tool. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.
    GFD194858Courtesy of FORD MOTOR COMPANY
  9. Position the transmission on the dowel pins and install the lower transmission-to-engine bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD194857Courtesy of FORD MOTOR COMPANY
  10. Install the LH transmission-to-engine bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD194856Courtesy of FORD MOTOR COMPANY

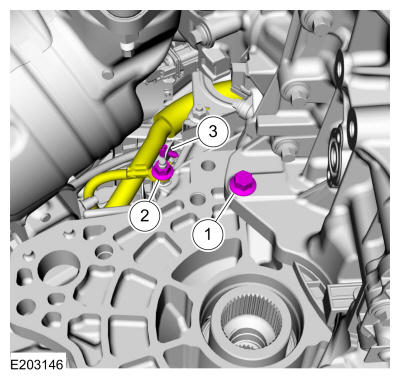

    1. If equipped, install the RH transmission-to-engine bolt.

      Torque: 35 lb.ft (48 Nm)

    2. Install the ground cable and nut.

      Torque: 133 lb.in (15 Nm)

    3. Connect the wiring harness retainer.
    GFD194868Courtesy of FORD MOTOR COMPANY

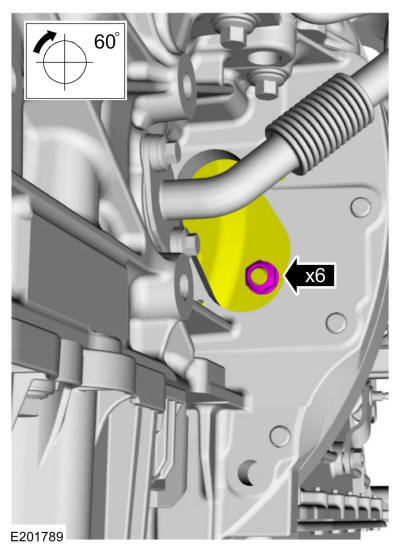

  11. NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.

    Install the new torque converter nuts.

    Torque: 35 lb.ft (48 Nm)

    GFD194869Courtesy of FORD MOTOR COMPANY
  12. Install the access cover and the retainers.
    GFD194851Courtesy of FORD MOTOR COMPANY
  13. Connect the electrical connector and the wiring harness retainers.
    GFD194853Courtesy of FORD MOTOR COMPANY

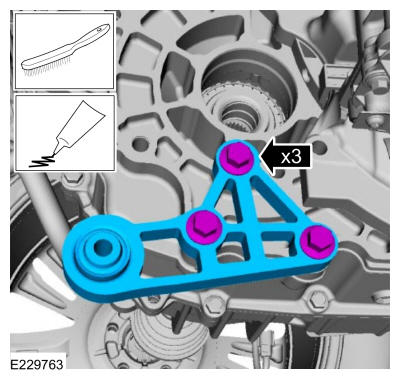

  14. Install the roll restrictor bracket and the bolts.

    Material: Motorcraft ® Threadlock and Sealer / TA-25-B

    Torque: 92 lb.ft (125 Nm)

    GFD194870Courtesy of FORD MOTOR COMPANY
  15. Inspect the halfshaft hub for wear or damage and install a new halfshaft, if necessary.

    1. Inspect the dust shield.
    2. Inspect the LH halfshaft seal surface.
    3. Inspect the differential side gear splines.

    GFD194871Courtesy of FORD MOTOR COMPANY
  16. NOTE: Make sure new component is installed.

    Install the new inner halfshaft retaining circlip.

    GFD194872Courtesy of FORD MOTOR COMPANY
  17. NOTE: If the transmission has been replaced or overhauled, the halfshaft seals do not need to be replaced.

    Install a new LH halfshaft seal. Refer to: Halfshaft Seal LH .

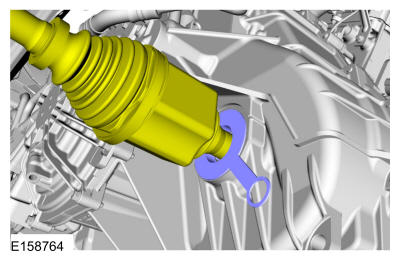

  18. NOTE: Do not fully install shaft at this time.

    Using part: AA5P-4N206-A, install the splines of the LH halfshaft through the halfshaft seal protector and the new halfshaft seal.

    GFD194873Courtesy of FORD MOTOR COMPANY

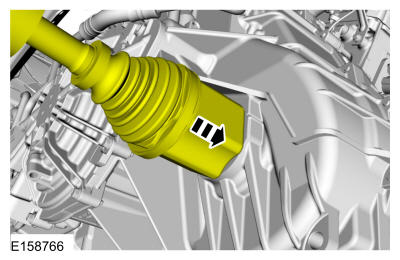

  19. NOTE: Insert shaft until circlip is fully seated. When checking if circlip is seated do not pull on CV joints or damage can result.
    NOTE: Pull on the inner CV joint to ensure the halfshaft circlip is seated properly.

    Insert the LH halfshaft until the halfshaft retaining clip is fully seated.

    GFD194874Courtesy of FORD MOTOR COMPANY
  20. Connect the transmission fluid cooler to transmission cooler bypass valve tube.
    GFD192544Courtesy of FORD MOTOR COMPANY
  21. Install the transmission fluid cooler to transmission cooler bypass valve tube secondary latch.
    GFD192379Courtesy of FORD MOTOR COMPANY
  22. Set the transmission support insulator and roll restrictor in place.
    GFD194846Courtesy of FORD MOTOR COMPANY

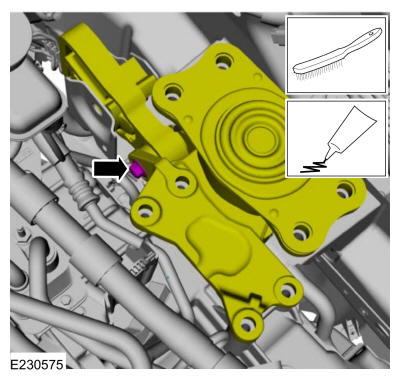

  23. Loosely install the transmission support insulator bolt.

    Material: Motorcraft ® Threadlock and Sealer / TA-25-B

    GFD194875Courtesy of FORD MOTOR COMPANY

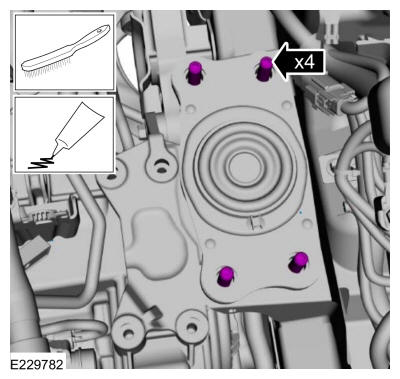

  24. Install the transmission support insulator studs.

    Material: Motorcraft ® Threadlock and Sealer / TA-25-B

    Torque: 22 lb.ft (30 Nm)

    GFD194876Courtesy of FORD MOTOR COMPANY

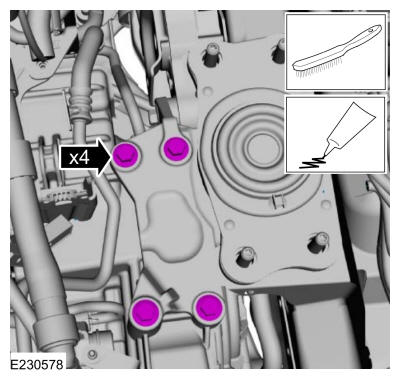

  25. Install the transmission support insulator bolts.

    Material: Motorcraft ® Threadlock and Sealer / TA-25-B

    Torque: 59 lb.ft (80 Nm)

    GFD194877Courtesy of FORD MOTOR COMPANY

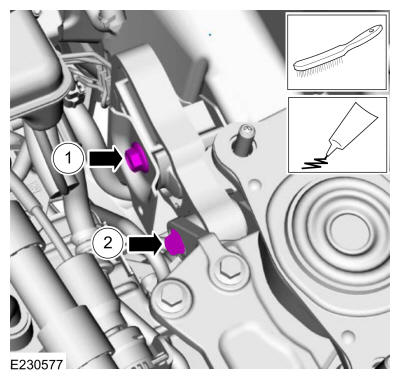

    1. Install the roll restrictor bolt.

      Material: Motorcraft ® Threadlock and Sealer / TA-25-B

      Torque: 111 lb.ft (150 Nm)

    2. Tighten the bolt.

      Torque: 85 lb.ft (115 Nm)

    GFD194878Courtesy of FORD MOTOR COMPANY

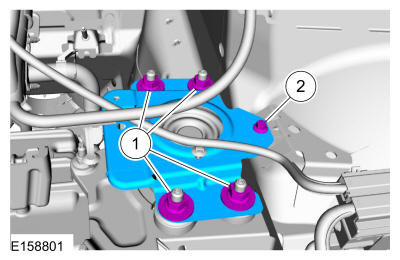

  26. Install the transmission support insulator bracket, nuts and bolt.

    1. Torque: 66 lb.ft (90 Nm)
    2. Torque: 97 lb.in (11 Nm)

    GFD194879Courtesy of FORD MOTOR COMPANY
  27. Install the radiator sight shield and the pin-type retainers.
    GFD194839Courtesy of FORD MOTOR COMPANY
  28. Install the upper transmission-to-engine bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD194836Courtesy of FORD MOTOR COMPANY
  29. Install the starter motor. Refer to: Starter Motor .
  30. Position back the transmission fluid warmer and install the bolts.

    Torque: 80 lb.in (9 Nm)

    GFD194835Courtesy of FORD MOTOR COMPANY

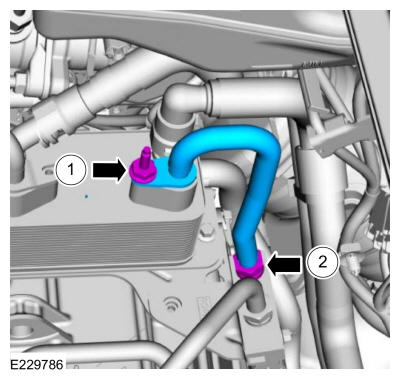

  31. Install the transmission fluid warmer to cooler bypass cooler tube.

    1. Install a new bolt.

      Torque: 97 lb.in (11 Nm)

    2. Tighten the fitting.

      Torque: 22 lb.ft (30 Nm)

    GFD194880Courtesy of FORD MOTOR COMPANY

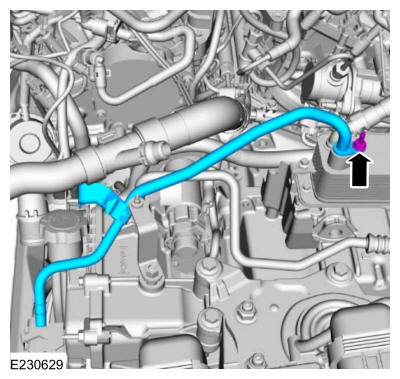

  32. Install the transmission fluid warmer to transmission fluid cooler tube and new bolt.

    Torque: 97 lb.in (11 Nm)

    GFD194881Courtesy of FORD MOTOR COMPANY
  33. Install the transmission cooler tube bracket nut.

    Torque: 80 lb.in (9 Nm)

    GFD194831Courtesy of FORD MOTOR COMPANY
  34. Connect the transmission cooler bypass valve to transmission fluid cooler tube.
    GFD192545Courtesy of FORD MOTOR COMPANY
  35. Install the transmission cooler bypass valve to transmission fluid cooler tube secondary latch.
    GFD192377Courtesy of FORD MOTOR COMPANY
    1. Install the ground wire and the bolt.

      Torque: 159 lb.in (18 Nm)

    2. Attach the wiring harness retainers.
    GFD192375Courtesy of FORD MOTOR COMPANY
  36. Connect the PCV tube.
    GFD194837Courtesy of FORD MOTOR COMPANY
  37. Install the vacuum harness pressure sensor and the bolt.

    Torque: 62 lb.in (7 Nm)

    GFD194838Courtesy of FORD MOTOR COMPANY
    1. Attach the cable to the transmission control lever.
    2. Position the cable and install the bolt.
    GFD192371Courtesy of FORD MOTOR COMPANY
  38. Install the power transfer unit. Refer to: Power Transfer Unit .
  39. Install the front subframe. Refer to: Front Subframe .
  40. Install the following items:

    1. Refer to: Charge Air Cooler (CAC) Intake Pipe .
    2. Refer to: Air Cleaner Outlet Pipe RH .
    3. Refer to: Air Cleaner Outlet Pipe LH .
    4. Refer to: Battery Tray .

  41. Adjust the selector lever cable. Refer to: Selector Lever Cable Adjustment .
  42. Fill the transmission with transmission fluid. Refer to: Transmission Fluid Drain and Refill .
  43. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
  44. If a new solenoid body is installed, the solenoid body strategy must be updated. Refer to: Transmission Strategy Download .
