Timing Belt: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Do not loosen or remove the crankshaft pulley bolt without first installing the special tools. The crankshaft pulley and the crankshaft timing sprocket are not keyed to the crankshaft. Before any repair requiring loosening or removal of the crankshaft pulley bolt, the crankshaft and camshafts must be locked in place by the special service tools, otherwise severe engine damage can occur.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

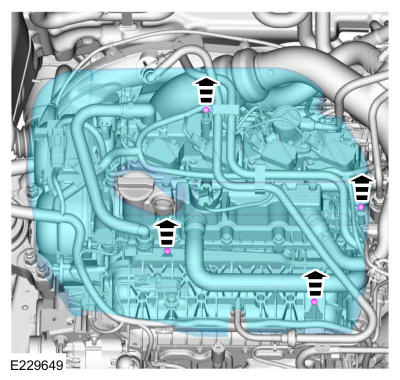

  2. Remove the engine appearance cover.
    GFD190805Courtesy of FORD MOTOR COMPANY

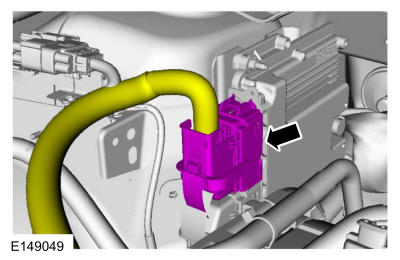

  3. Disconnect the PCM electrical connector.
    GFD190806Courtesy of FORD MOTOR COMPANY

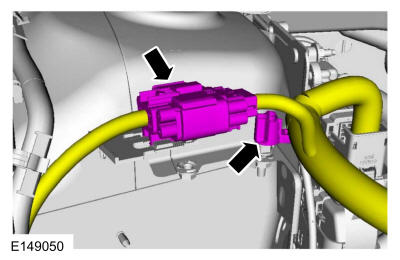

  4. Remove the engine cover. Detach the retainer and disconnect the electrical connector.
    GFD190807Courtesy of FORD MOTOR COMPANY
  5. Remove the following items:

    1. Remove the degas bottle. Refer to: Degas Bottle .
    2. Remove the upper air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

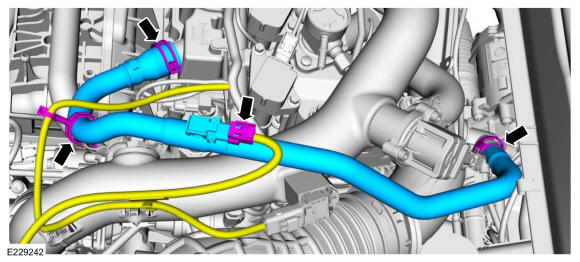

  6. Disconnect the wiring harness electrical connector, retainer and disconnect and remove the crankcase vent hose.

    Use the General Equipment: Hose Clamp Remover/Installer

    GFD190808Courtesy of FORD MOTOR COMPANY

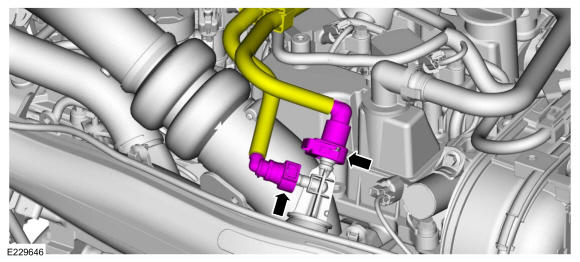

  7. Disconnect the EVAP canister purge valve tubes from the TC inlet pipe.
    GFD190809Courtesy of FORD MOTOR COMPANY

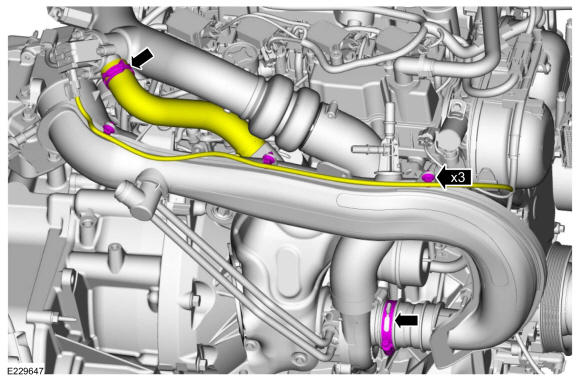

    • Detach the wiring harness retainers and disconnect the TC bypass hose.

      Use the General Equipment: Hose Clamp Remover/Installer

    • Loosen the TC inlet hose clamp.

    GFD190810Courtesy of FORD MOTOR COMPANY

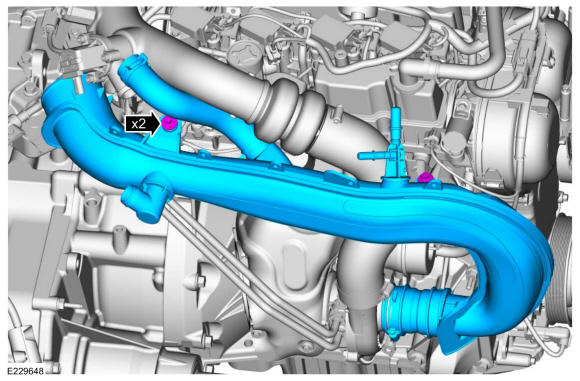

  9. Remove the bolts and the TC inlet pipe assembly.
    GFD190811Courtesy of FORD MOTOR COMPANY

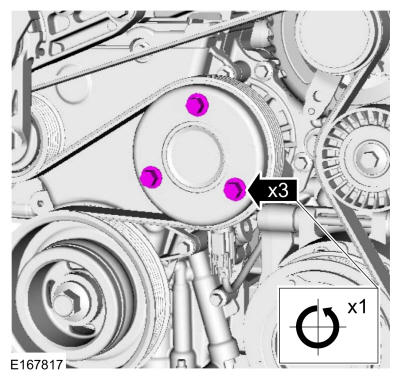

  10. Loosen the coolant pump pulley bolts.
    GFD190812Courtesy of FORD MOTOR COMPANY
  11. Remove the following items:

    1. Remove the RH front wheel and tire. Refer to: Wheel and Tire .
    2. Remove the RH front fender splash shield. Refer to: Fender Splash Shield .

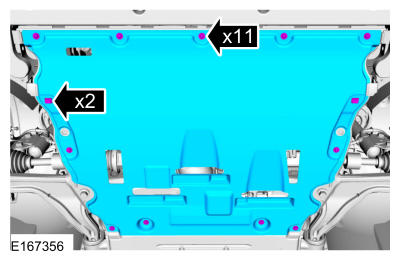

  12. Remove the retainers and the engine undershield.
    GFD190813Courtesy of FORD MOTOR COMPANY

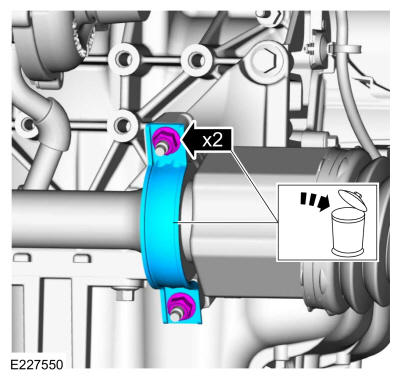

  13. Remove and discard the RH halfshaft bearing retaining strap and the nuts.
    GFD190814Courtesy of FORD MOTOR COMPANY

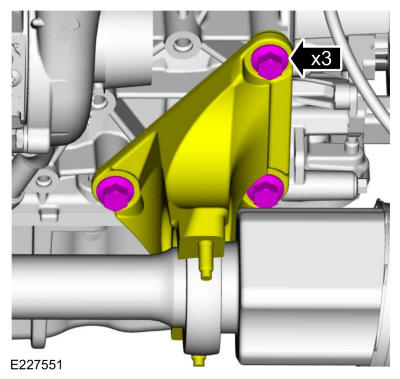

  14. NOTE: It may be necessary to rotate the halfshaft to remove the front lower bolt.

    Remove the RH halfshaft supports bracket bolts.

    GFD190815Courtesy of FORD MOTOR COMPANY

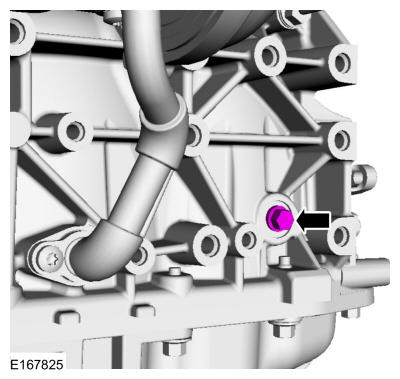

  15. Remove the engine plug bolt.
    GFD190816Courtesy of FORD MOTOR COMPANY
  16. Remove the following items:

    1. Remove the starter motor. Refer to: Starter Motor .
    2. Remove the generator. Refer to: Generator .

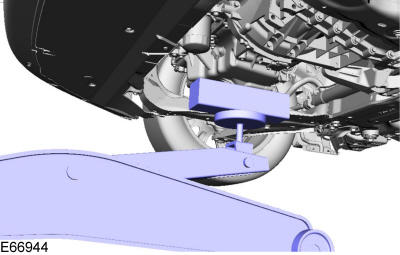

  17. Install the following items:

    • Use the General Equipment: Trolley Jack

      Use the General Equipment: Wooden Block

    GFD190817Courtesy of FORD MOTOR COMPANY

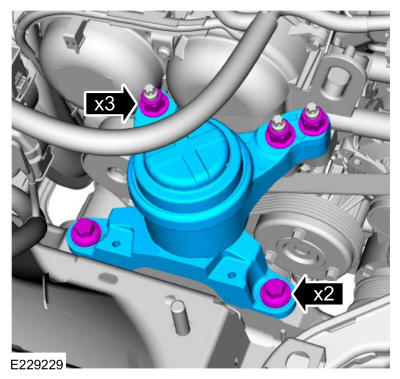

  18. Remove the nuts, bolts and the engine mount.
    GFD190818Courtesy of FORD MOTOR COMPANY

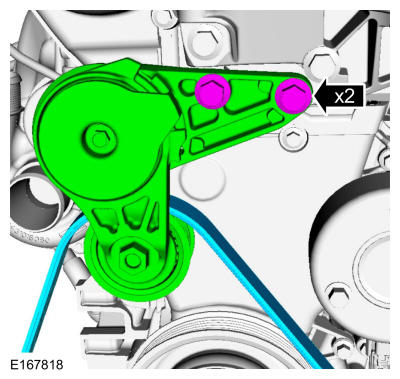

  19. If equipped with a accessory drive belt tensioner, remove the bolts, accessory drive belt tensioner and the accessory drive belt.
    GFD190819Courtesy of FORD MOTOR COMPANY

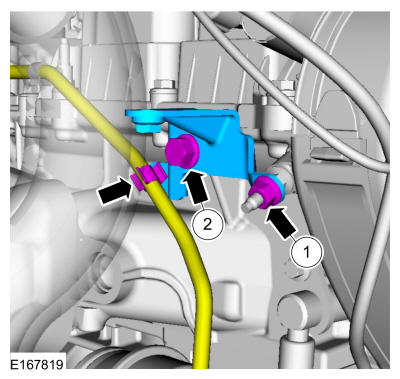

    • Detach the vacuum tube retainer.

    • Remove the bolt, nut and the support bracket.

    GFD190820Courtesy of FORD MOTOR COMPANY

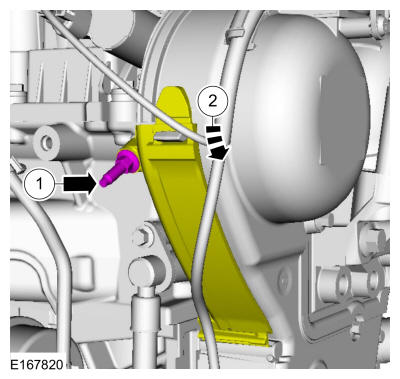

  21. Remove the stud bolt and the cover from front cover.
    GFD190821Courtesy of FORD MOTOR COMPANY

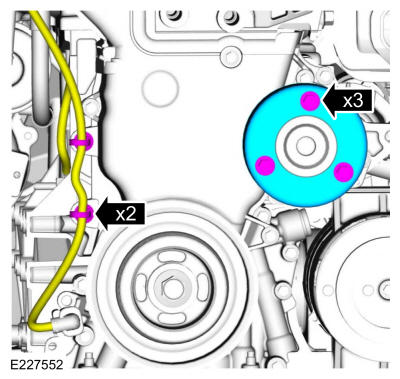

    • Remove the bolts and the coolant pump pulley.

    • Detach the wiring harness retainers.

    GFD190822Courtesy of FORD MOTOR COMPANY

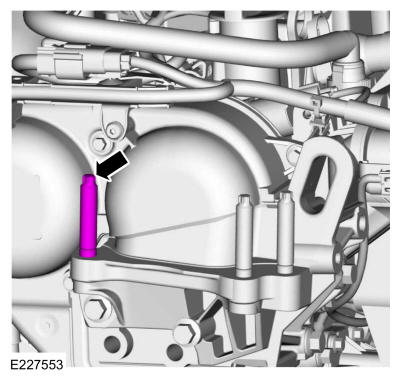

  23. Remove the engine mount stud.
    GFD190823Courtesy of FORD MOTOR COMPANY

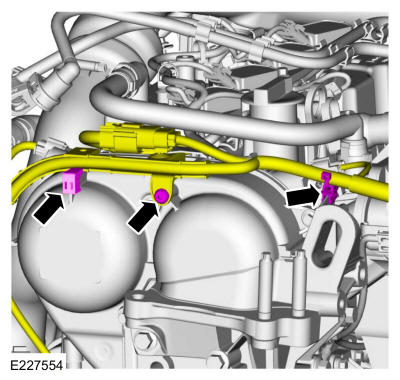

    • Remove the wiring harness bolt.

    • Detach the wiring harness retainers and position the wiring harness aside.

    GFD190824Courtesy of FORD MOTOR COMPANY

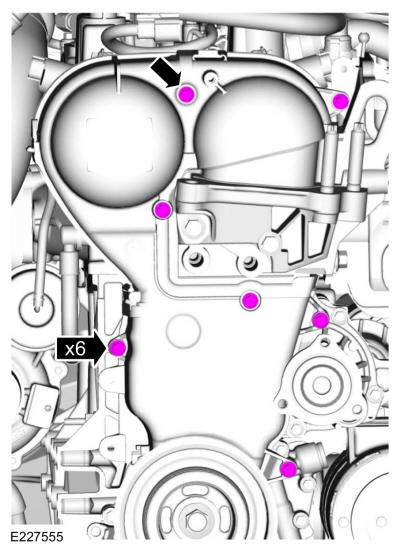

  25. Remove the engine front cover bolts.
    GFD190825Courtesy of FORD MOTOR COMPANY

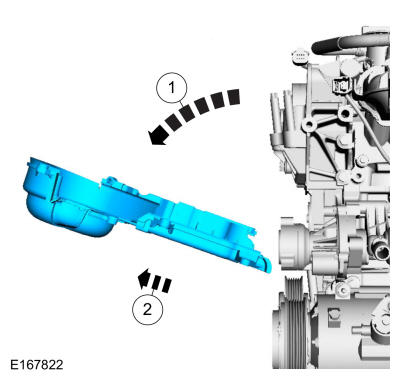

  26. Remove the engine front cover.
    GFD190826Courtesy of FORD MOTOR COMPANY

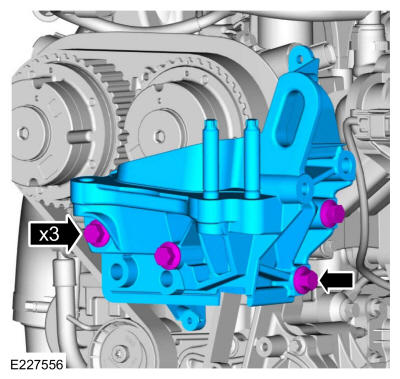

  27. NOTE: Note the different lengths of the bolts for installation.

    Remove the bolts and the engine mount bracket.

    GFD190827Courtesy of FORD MOTOR COMPANY

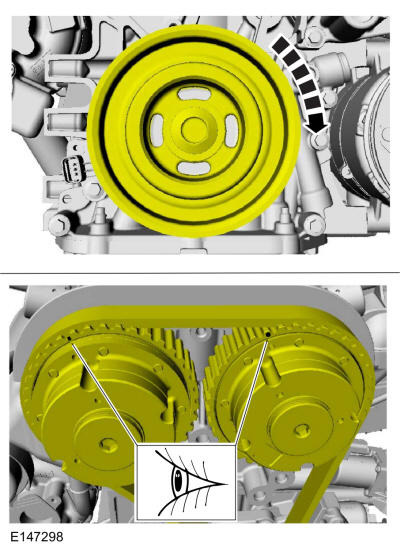

  28. NOTE: Only rotate the crankshaft in a clockwise direction.

    Rotate the crankshaft in a clockwise direction and position the VCT marking at 11 o'clock position.

    GFD190828Courtesy of FORD MOTOR COMPANY

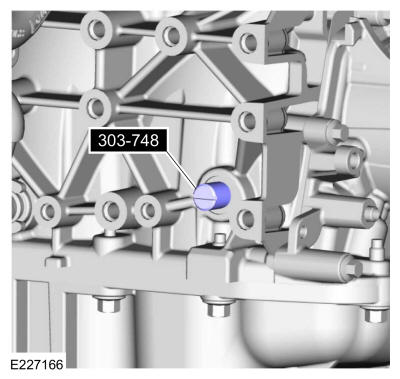

  29. NOTE: The Crankshaft TDC Timing Pin will contact the crankshaft and prevent it from turning past TDC. However, the crankshaft can still be rotated in the counterclockwise direction. The crankshaft must remain at the TDC position during the crankshaft pulley removal and installation.

    Install Special Service Tool: 303-748 Locking Tool, Crankshaft.

    GFD190829Courtesy of FORD MOTOR COMPANY

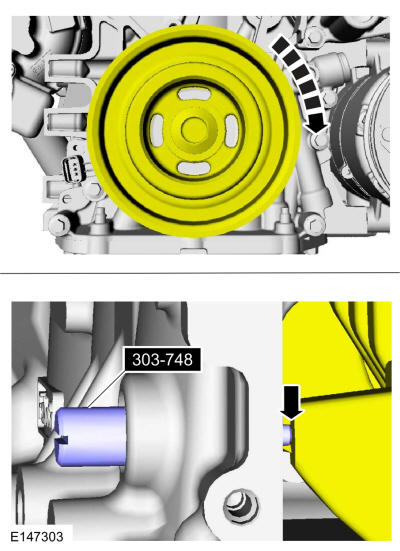

  30. NOTE: Only rotate the crankshaft clockwise direction.

    Rotate the crankshaft slowly clockwise until the crankshaft balance weight is up against the crankshaft locking tool. The engine is now at TDC.

    GFD190830Courtesy of FORD MOTOR COMPANY

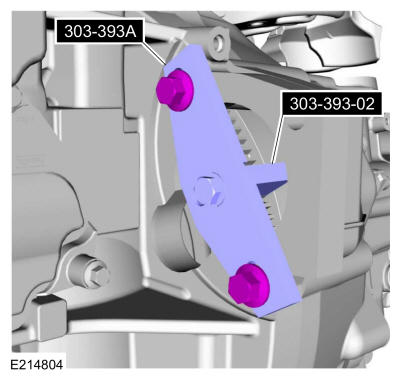

  31. Install Special Service Tools: 303-393-02 Adapter for 303-393, 303-393A Locking Tool, Flywheel.
    GFD190831Courtesy of FORD MOTOR COMPANY

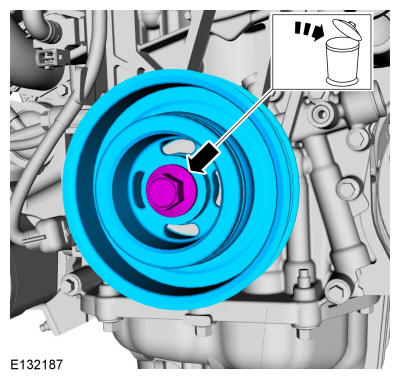

  32. Remove and discard the crankshaft pulley bolt. Remove the crankshaft pulley.
    GFD190832Courtesy of FORD MOTOR COMPANY

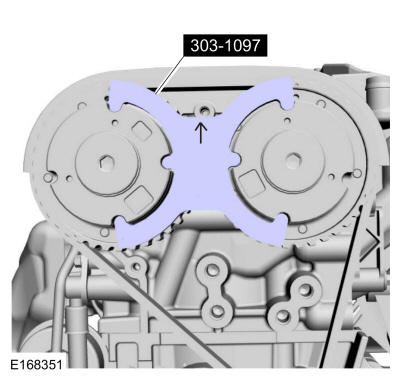

  33. NOTE: The timing mark of each VCT unit must be at the 12 o'clock position.
    NOTE: It may necessary to rotate the camshafts slightly to install the special tool.

    Install Special Service Tool: 303-1097 Locking Tool, Variable Camshaft Timing Oil Control Unit.

    GFD190833Courtesy of FORD MOTOR COMPANY

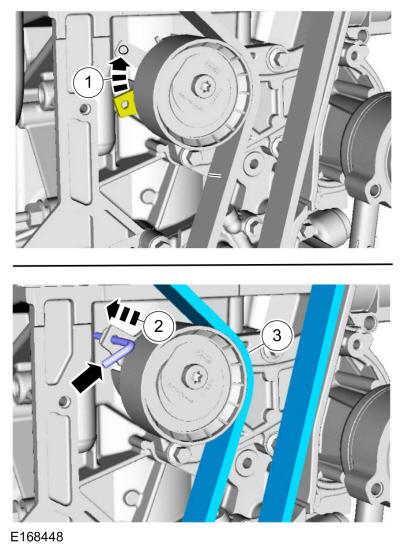

  34. WARNING: The timing belt tensioner spring is under load. Extra care must be taken at all times when handling the tensioner. Failure to follow this instruction may result in personal injury.
    NOTE: Install a holding pin.

    • Rotate the timing belt tensioner clockwise.

    • Install a holding pin.

    • Remove the timing belt.

    GFD190834Courtesy of FORD MOTOR COMPANY

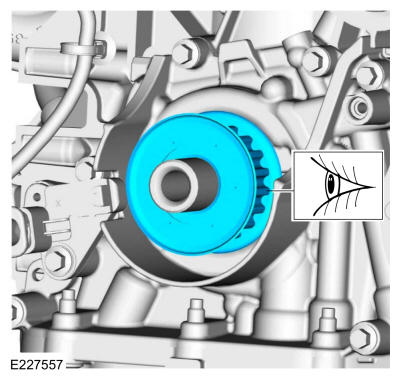

  35. NOTE: Clean and inspect the sprocket for any damage. If damage is evident, replace the sprocket. If no damage, the sprocket is to be re Use d.

    Remove and inspect the timing belt sprocket.

    GFD190835Courtesy of FORD MOTOR COMPANY

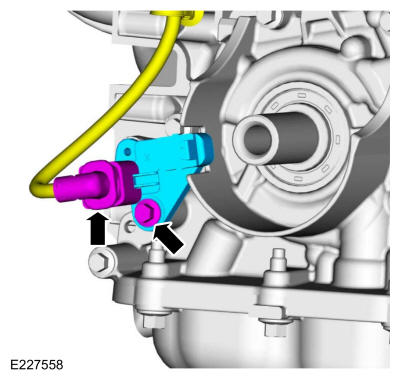

    • Disconnect the CKP sensor electrical connector.

    • Remove the bolt and the CKP sensor.

    GFD190836Courtesy of FORD MOTOR COMPANY
