Section 27 (Engine - 1.5L ECOBOOST (118KW/160PS) - I4): Installation: Engine

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	300-OTC1819E2, 200# Floor Crane, Fold Away
Courtesy of FORD MOTOR COMPANY	303-1502 Lifting Device Engine TKIT-2012A-FL, TKIT-2012A-ROW
Adjustable Mounting Arm
Hose Clamp Remover/Installer

Materials

All vehicles

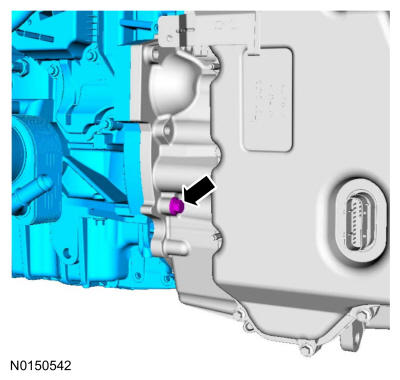

1. Draw the engine to the transmission together and install the bolt.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

2. Install the engine to transmission bolts.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

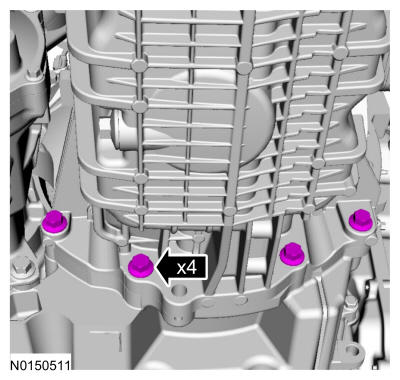

3. Install the engine to transmission bolts.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

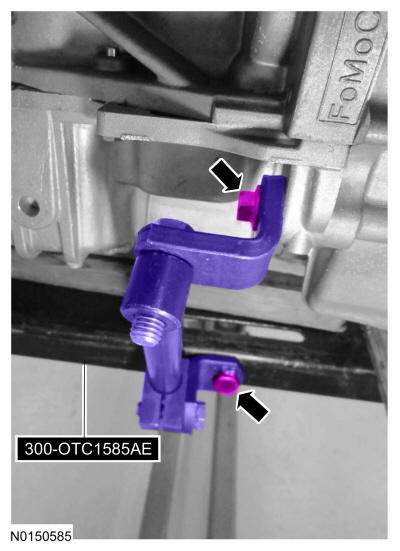

4. Install the Adjustable Mounting Arm.

   Use the General Equipment: Adjustable Mounting Arm

   Courtesy of FORD MOTOR COMPANY

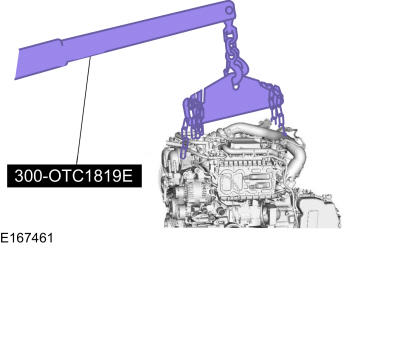

5. Remove Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.

   Courtesy of FORD MOTOR COMPANY

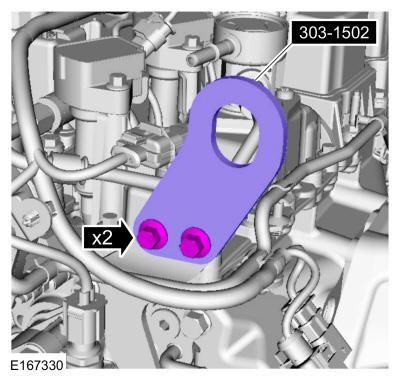

6. Remove Special Service Tool: 303-1502 Lifting Device Engine.

   Courtesy of FORD MOTOR COMPANY

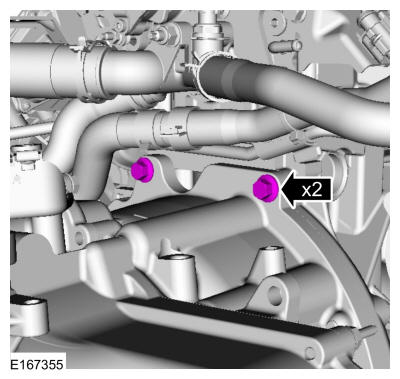

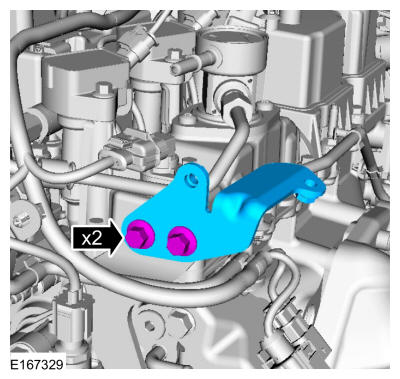

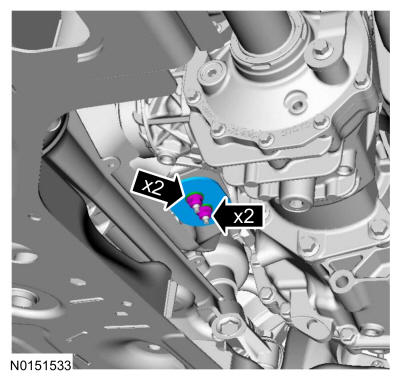

7. Install the bracket and the bolts.

   Torque: 97 lb.in (11 Nm)

   Courtesy of FORD MOTOR COMPANY

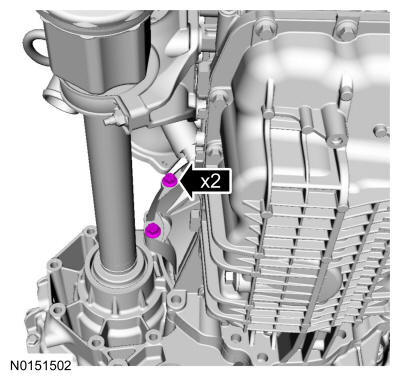

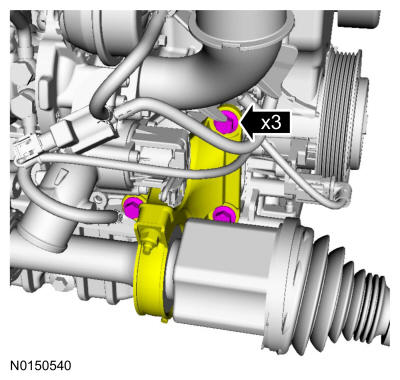

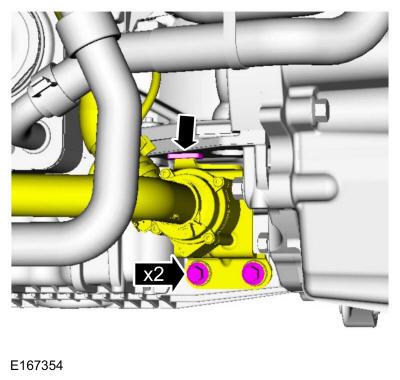

8. Position the halfshaft support bracket and install the bolts.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

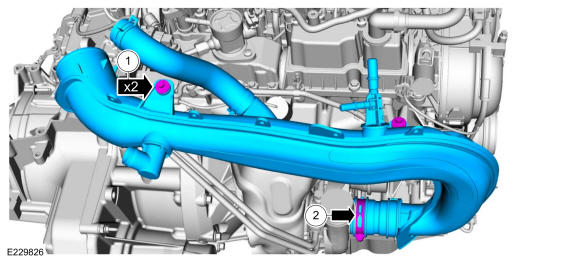

9. Install the TC inlet pipe, bolt and tighten the clamp.

   Torque:

   1: 71 lb.in (8 Nm)

   2: 44 lb.in (5 Nm)

   Courtesy of FORD MOTOR COMPANY

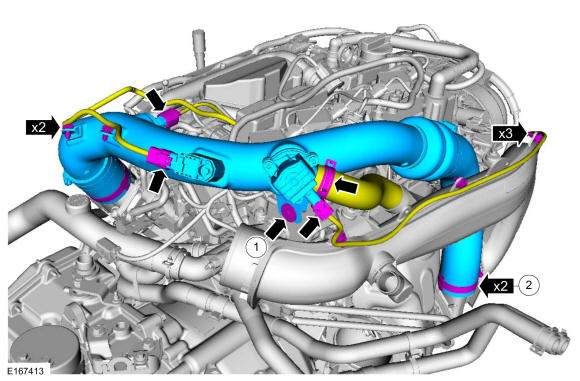

10. • Install the TC outlet pipe, bolt and tighten the clamps.

      Torque:

      1: 71 lb.in (8 Nm)

      2: 44 lb.in (5 Nm)

    • Connect the TC bypass hose.
    • Attach the wiring harness retainers and connect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

11. • Install the crankcase vent hose. Use the General Equipment: Hose Clamp Remover/Installer
    • Connect the wiring harness electrical connector and wire harness the retainer.

    Courtesy of FORD MOTOR COMPANY

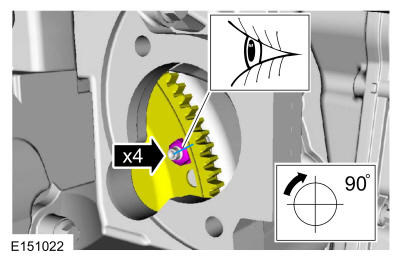

12. NOTE: Only rotate the crankshaft in a clockwise direction.

    Match the index-mark the torque converter nuts and tighten the nut.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

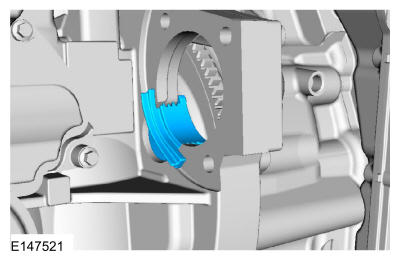

13. Install the starter motor insulator.

    Courtesy of FORD MOTOR COMPANY

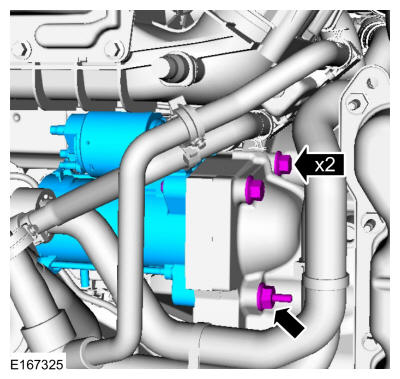

14. Install the starter motor, bolts and the stud bolt.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

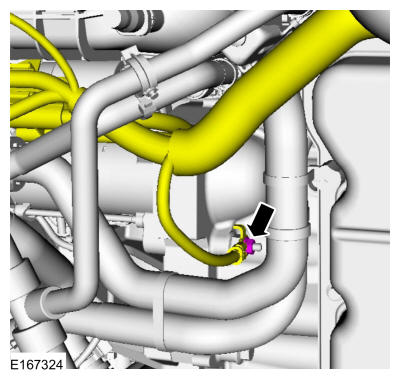

15. Position the wiring harness and install the nut.

    Torque: 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

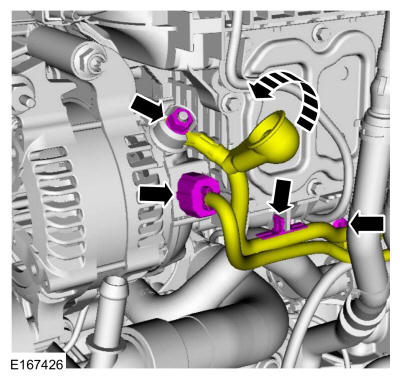

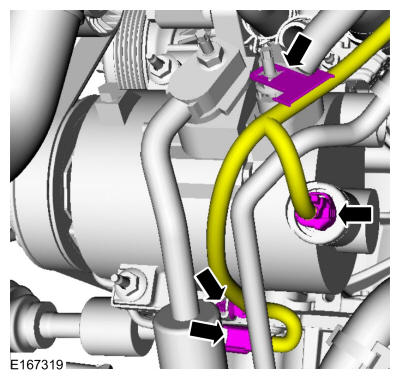

16. • Position the wiring harness and install the nut.

      Torque: 159 lb.in (18 Nm)

    • Slide the generator insulator down.
    • Attach the wiring harness retainers and connect the electrical connector.

    Courtesy of FORD MOTOR COMPANY

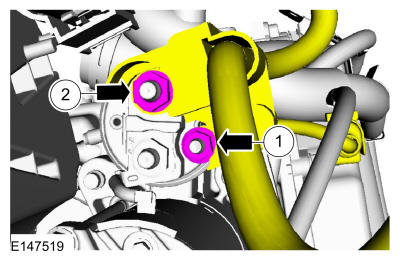

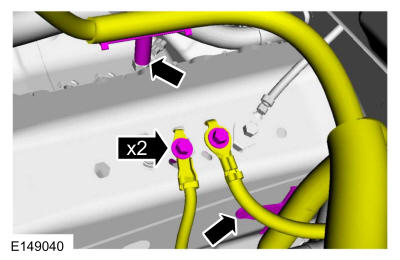

17. Position the starter motor cable and install the nuts.

    Torque:

    1: 53 lb.in (6 Nm)

    2: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

    Vehicles with automatic start-stop

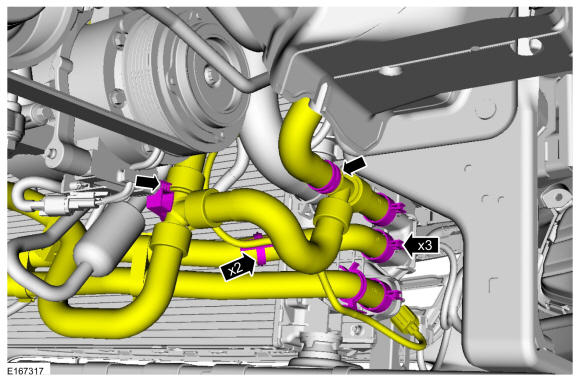

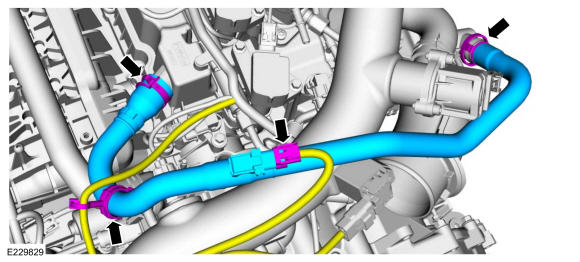

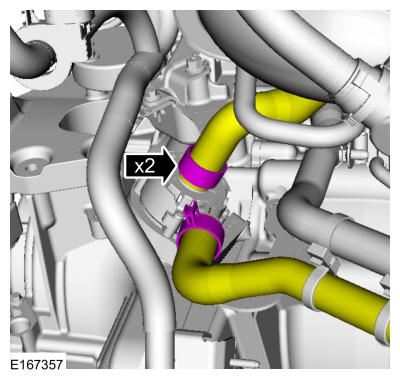

18. Connect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

    All vehicles

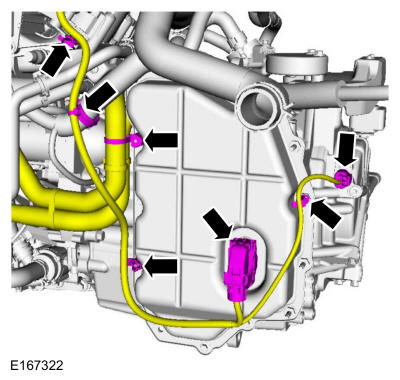

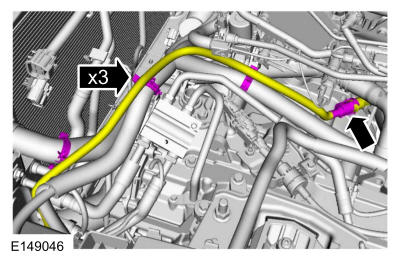

19. Attach the wiring harness retainers and connect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

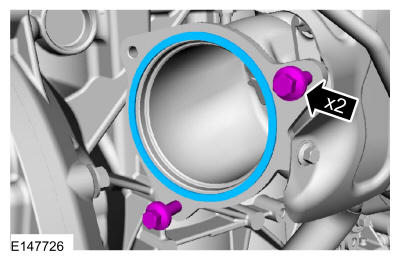

20. Install the new catalytic converter gasket and loosely install the bolts.

    Courtesy of FORD MOTOR COMPANY

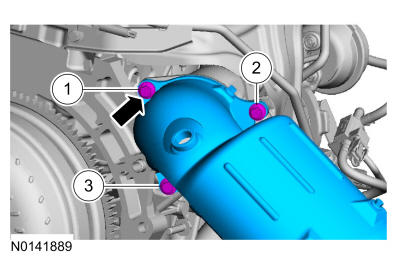

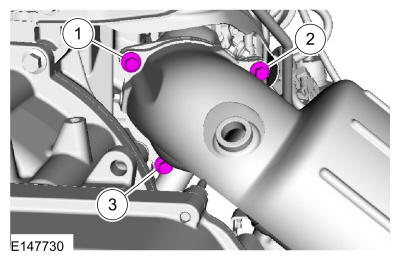

21. Install the catalytic converter, bolt and tighten the bolts in sequence shown below.

    Torque: 22 lb.ft (30 Nm)

    Fig 1: Catalytic Converter Tightening Sequence

    Courtesy of FORD MOTOR COMPANY

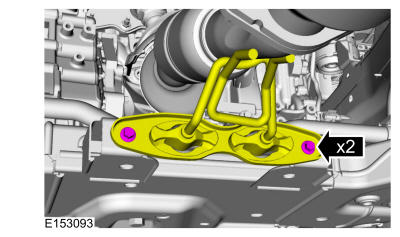

22. Install the muffler inlet pipe isolator bracket bolts.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

23. Tighten the catalytic converter mounting bolts in sequence shown below.

    Torque: 22 lb.ft (30 Nm)

    Fig 2: Catalytic Converter Tightening Sequence

    Courtesy of FORD MOTOR COMPANY

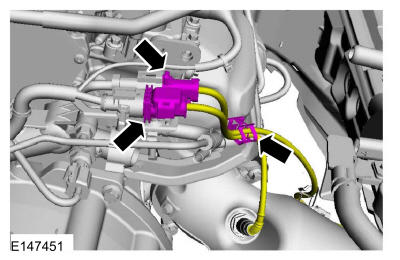

24. NOTE: Make sure the sensor wiring is routed away from hot surfaces and sharp edges or damage to the wiring may occur.

    Attach the retainer and connect the electrical connector.

    Courtesy of FORD MOTOR COMPANY

25. Tighten the engine mount studs.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

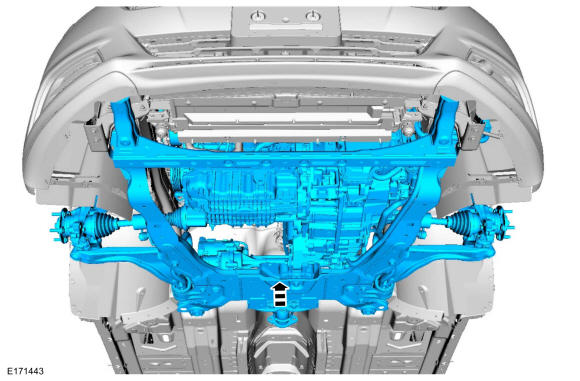

26. Using the powertrain lift, raise the powertrain and subframe as an assembly.

    Courtesy of FORD MOTOR COMPANY

27. 1. Install the engine mount and the nuts.

       Torque: 85 lb.ft (115 Nm)

    2. Install the engine mount bolts finger-tight.

    Courtesy of FORD MOTOR COMPANY

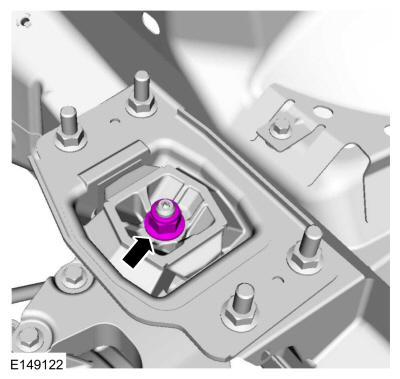

28. Install the transmission support insulator nut.

    Torque: 98 lb.ft (133 Nm)

    Courtesy of FORD MOTOR COMPANY

29. NOTE: Align the reference marks made during removal.

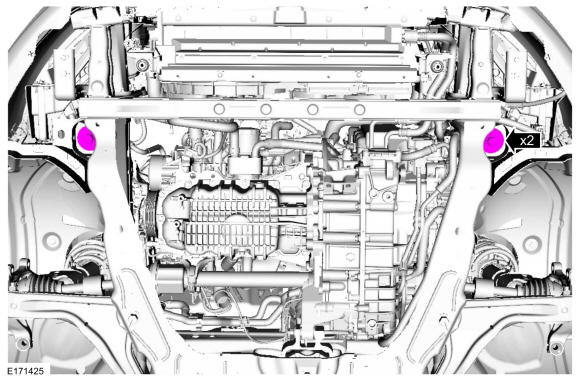

    Install the subframe front mounting bolts finger-tight.

    Courtesy of FORD MOTOR COMPANY

30. NOTE: Align the reference marks made during removal.

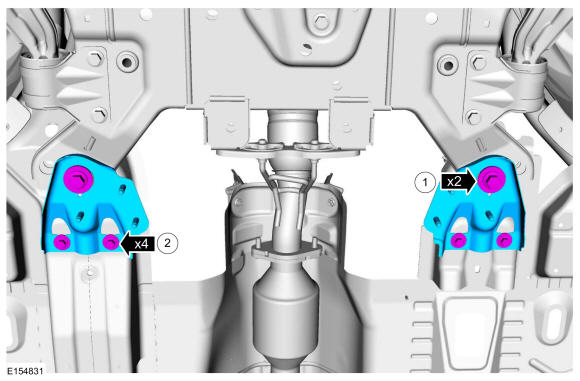

    1. Install the subframe support bracket and the bolts finger-tight.
    2. Install the subframe support bracket bolts finger-tight.

    Courtesy of FORD MOTOR COMPANY

31. NOTE: While tightening the subframe bolts, make sure the front subframe does not move.

    Install the subframe rear mounting bolts.

    Torque: 173 lb.ft (235 Nm)

    Courtesy of FORD MOTOR COMPANY

32. 1. Tighten the subframe support bracket bolts in 2 stages.

       Torque:

       Stage 1: 76 lb.ft (103 Nm)

       Stage 2: 270 °

    2. Tighten the subframe support bracket bolts.

       Torque: 44 lb.ft (60 Nm)

    Courtesy of FORD MOTOR COMPANY

33. Remove. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

34. Tighten the engine mount bolts.

    Torque: 66 lb.ft (90 Nm)

    Courtesy of FORD MOTOR COMPANY

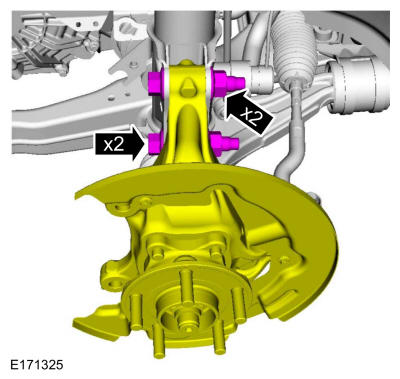

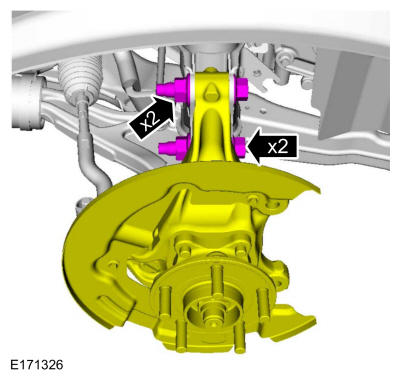

35. Position the RH wheel knuckle assembly, install the bolts and the nuts.

    Torque: 173 lb.ft (235 Nm)

    Courtesy of FORD MOTOR COMPANY

36. Position the LH wheel knuckle assembly, install the bolts and the nuts.

    Torque: 173 lb.ft (235 Nm)

    Courtesy of FORD MOTOR COMPANY

37. Install the brake disc. Refer to: Brake Disc .

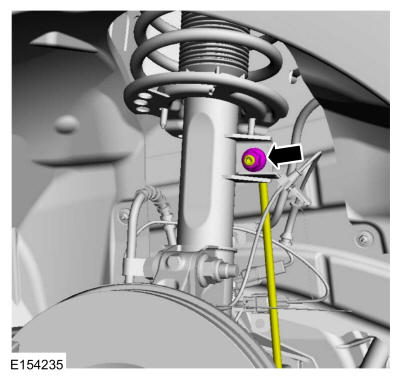

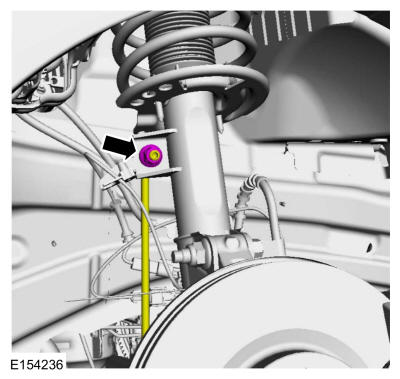

38. Position the RH stabilizer bar link and install the nut.

    Torque: 85 lb.ft (115 Nm)

    Courtesy of FORD MOTOR COMPANY

39. Position the LH stabilizer bar link and install the nut.

    Torque: 85 lb.ft (115 Nm)

    Courtesy of FORD MOTOR COMPANY

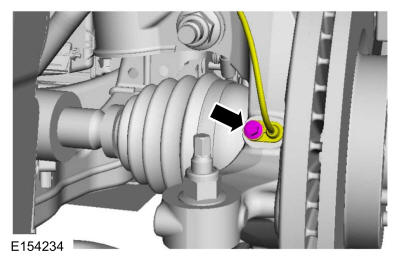

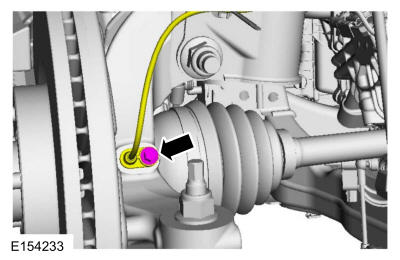

40. Position the wheel speed sensor and install the bolt.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

41. Position the wheel speed sensor and install the bolt.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

42. Install the catalytic converter grommet and the nuts.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

43. Install the engine to transmission bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

44. Position the auxiliary water pump and install the bolts.

    Torque: 17 lb.ft (23 Nm)

    Courtesy of FORD MOTOR COMPANY

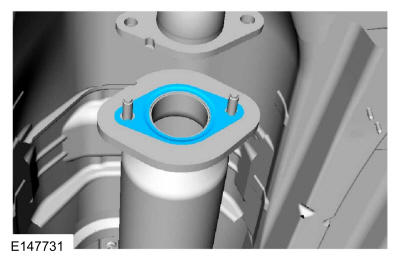

45. Install the new muffler inlet pipe gasket.

    Courtesy of FORD MOTOR COMPANY

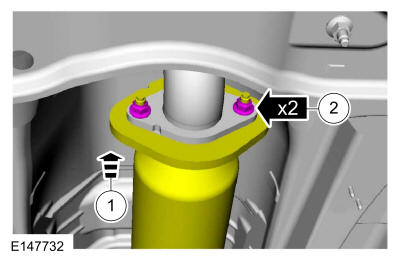

46. Position the muffler inlet pipe and install the nuts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

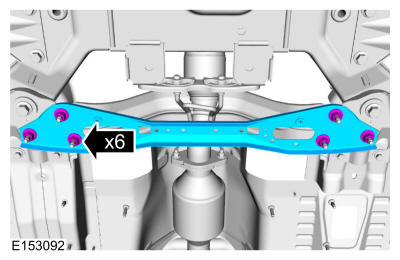

47. Install the cross support and the bolts.

    Torque: 33 lb.ft (45 Nm)

    Courtesy of FORD MOTOR COMPANY

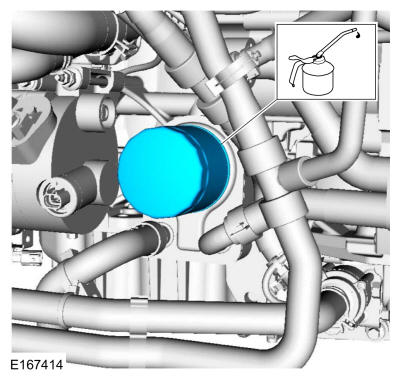

48. Install the engine oil filter.

    Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

    Torque: 128 lb.in (14.5 Nm)

    Courtesy of FORD MOTOR COMPANY

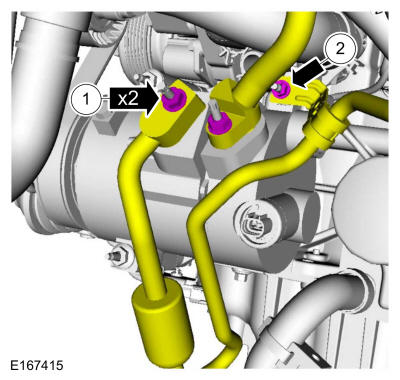

49. NOTE: Use new O-ring seals and gasket seals.

    Position the A/C lines and install the nuts.

    Torque:

    1: 133 lb.in (15 Nm)

    2: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

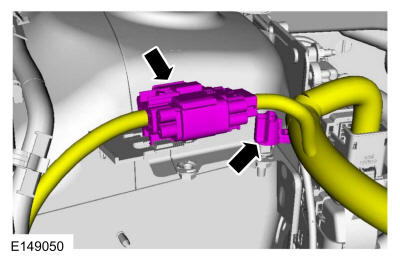

50. Connect the electrical connectors and attach the retainers.

    Courtesy of FORD MOTOR COMPANY

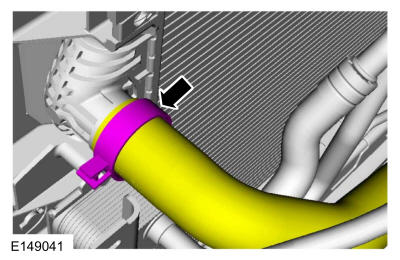

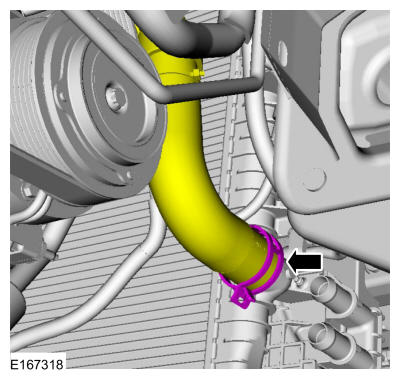

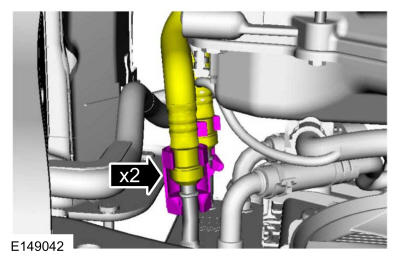

51. Connect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

52. Connect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

53. Install the lower radiator support, retainers and the bolts.

    Torque: 177 lb.in (20 Nm)

    Courtesy of FORD MOTOR COMPANY

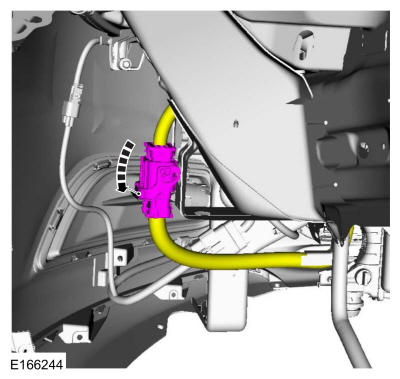

54. NOTE: LF inner fender well removed for clarity.

    Connect the electrical connector.

    Courtesy of FORD MOTOR COMPANY

55. Install the deflector shields and the retainers.

    Courtesy of FORD MOTOR COMPANY

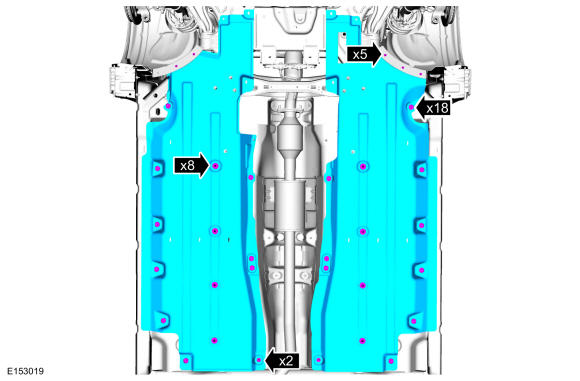

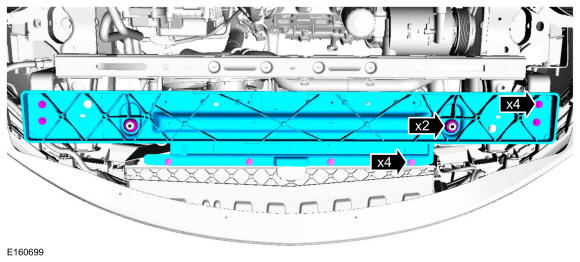

56. Install the stone guard and the retainers.

    Courtesy of FORD MOTOR COMPANY

57. Install the RH and LH front wheels and tires. Refer to: Wheel and Tire .
58. Install the accessory drive belt. Refer to: Accessory Drive Belt .

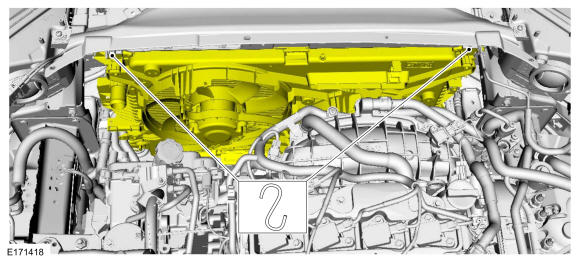

59. Remove the cooling module support.

    Courtesy of FORD MOTOR COMPANY

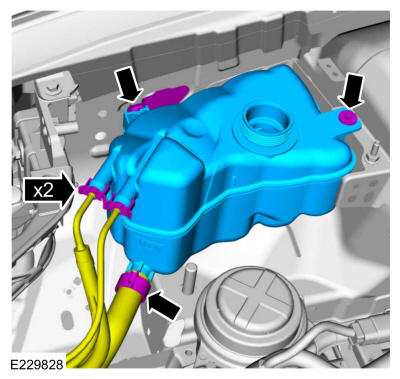

60. • Install the degas bottle and the retainer.

      Torque: 80 lb.in (9 Nm)

    • Connect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

61. Attach the wiring harness retainer and connect the electrical connector.

    Courtesy of FORD MOTOR COMPANY

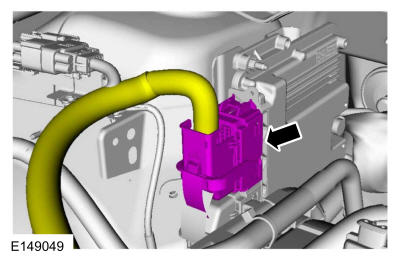

62. Connect the PCM electrical connector.

    Courtesy of FORD MOTOR COMPANY

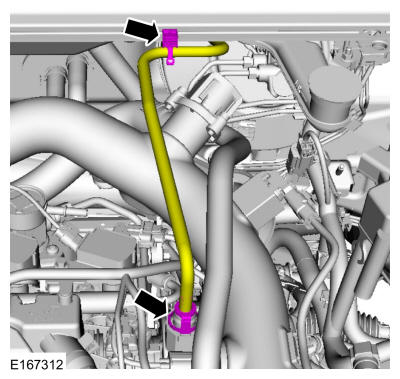

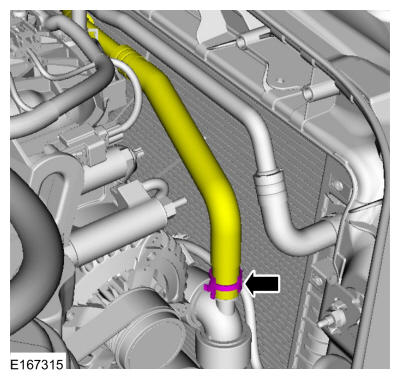

63. Connect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

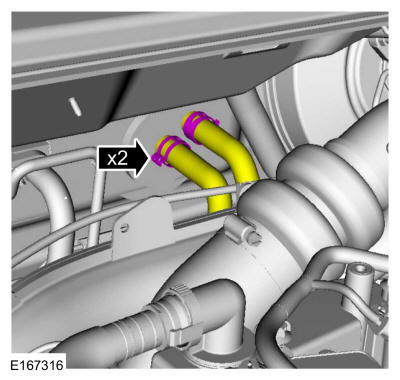

64. Connect the coolant hoses to the heater core. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

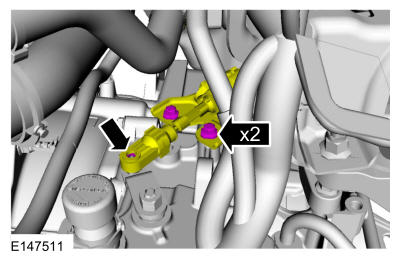

65. Connect the gearshift cable end to selector lever assembly and install the bolts.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

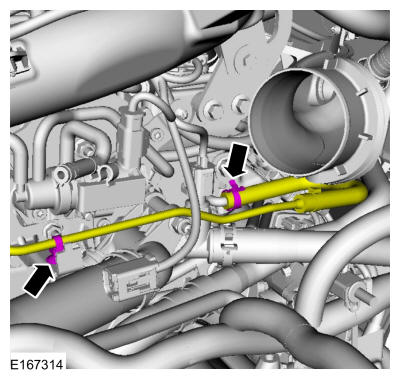

66. NOTE: If equipped with block heater.

    Attach the retainers and connect the coolant tube.

    Courtesy of FORD MOTOR COMPANY

67. Attach the retainer and connect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

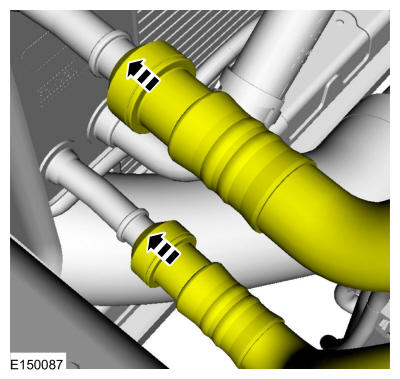

68. Connect the transmission fluid cooler tubes.

    Courtesy of FORD MOTOR COMPANY

69. Install the transmission fluid cooler tubes secondary latches.

    Courtesy of FORD MOTOR COMPANY

70. Connect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

71. Position the wiring harness, install the bolts and attach the retainers.

    Torque: 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

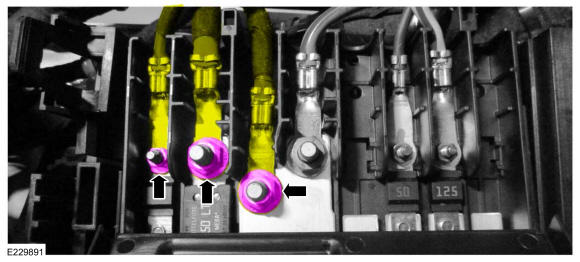

72. Position the wiring harness and install the nuts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

73. Close the battery cable terminal cover.

    Courtesy of FORD MOTOR COMPANY

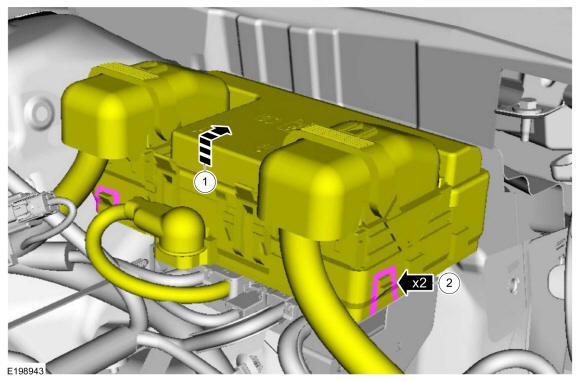

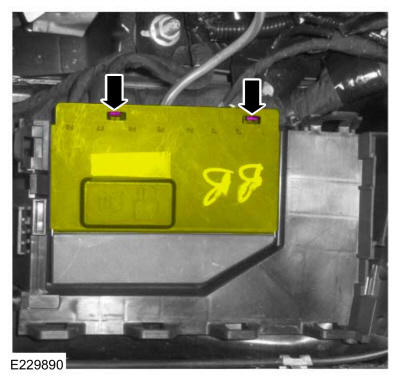

74. Position and install the fuse box.

    Courtesy of FORD MOTOR COMPANY

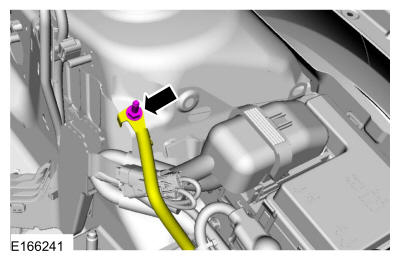

75. Position the wiring harness and install the stud bolt.

    Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

76. Install the EVAP canister purge valve. Refer to: Evaporative Emission Canister Purge Valve .
77. Attach the retainer and connect the vacuum tube coupling.

    Courtesy of FORD MOTOR COMPANY

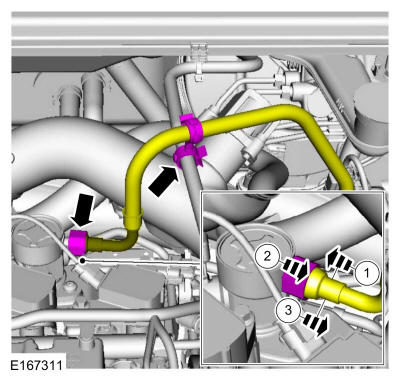

78. Attach the retainers, connect the fuel tube couplings.

    Courtesy of FORD MOTOR COMPANY

79. Install the following items:
    1. Install the battery tray. Refer to: Battery Tray .
    2. Install the upper air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
    3. Install the air cleaner. Refer to: Air Cleaner .

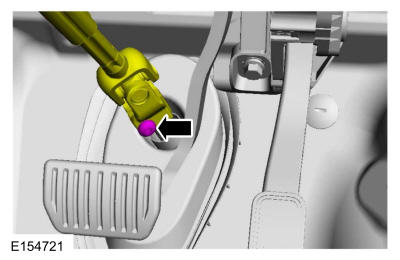

80. Attach the steering column shaft to steering input shaft and install the bolt.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

81. Remove the special tool.

    Courtesy of FORD MOTOR COMPANY

82. Fill the engine with clean engine oil.

    Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

83. Fill the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
84. Adjust the selector cable. Refer to: Selector Lever Cable Adjustment - 6-Speed Automatic Transmission - 6F35 .
85. Recharge the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R1234YF Refrigerant .
86. Install the engine appearance cover.

    Courtesy of FORD MOTOR COMPANY

87. Start and check the exhaust system for leaks.
88. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
