Selector Lever Cable Adjustment - 6-Speed Automatic Transmission - 6F35

Adjustment

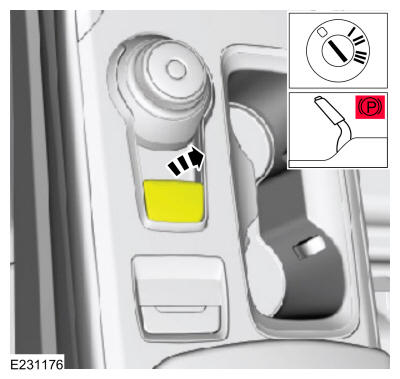

1. Turn the ignition switch to the OFF position and apply the parking brake.

   Courtesy of FORD MOTOR COMPANY

2. Using the diagnostic scan tool select the cable adjustment mode.

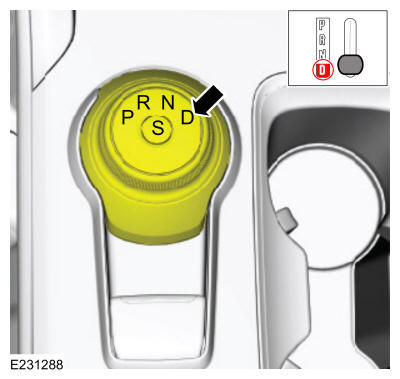

3. NOTE: The GSM will alternate flashing D or N and S simultaneously.

   Choose D on the GSM.

   Courtesy of FORD MOTOR COMPANY

4. Remove the air cleaner. Refer to: Air Cleaner - 1.5L EcoBoost . Refer to: Air Cleaner - 2.0L EcoBoost . Refer to: Air Cleaner - 2.5L Duratec .

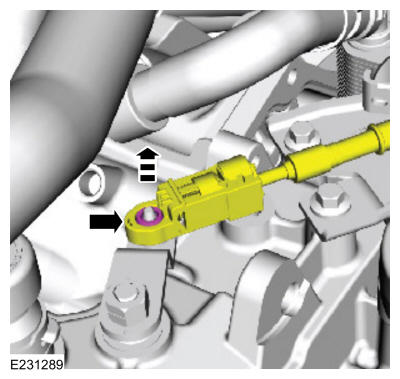

5. Disconnect the selector lever cable from the transmission manual lever.

   Courtesy of FORD MOTOR COMPANY

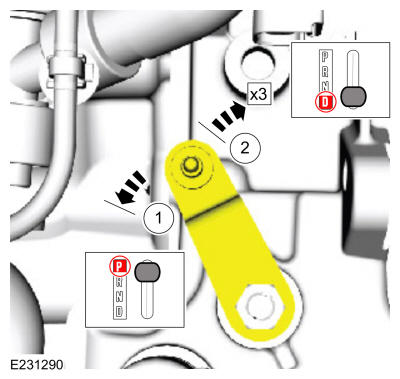

6. NOTE: Verify D is illuminated on the IPC.

   Position the manual control lever in D.

   1. Rotate the manual control lever counterclockwise until it stops.
   2. Rotate the manual control lever 3 detents into D.

   Courtesy of FORD MOTOR COMPANY

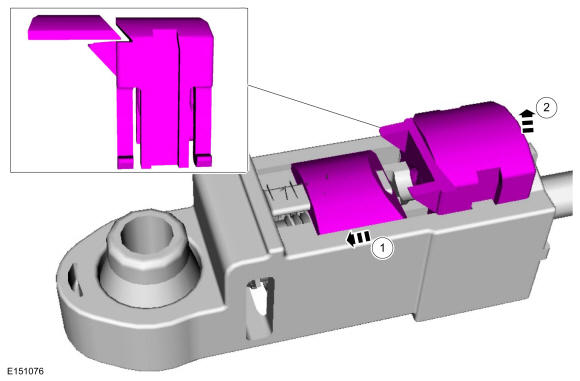

7. Unlock the adjuster.
   1. Move the slide to the left.
   2. While holding the slide, position the adjuster lock upward.

   Courtesy of FORD MOTOR COMPANY

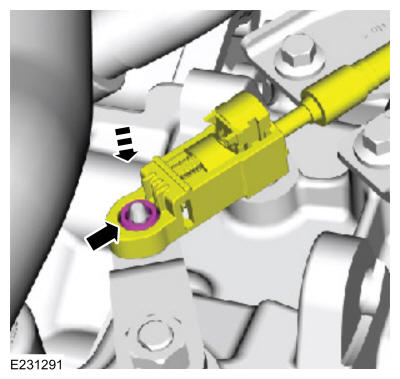

8. Connect the selector lever cable to the transmission manual lever.

   Courtesy of FORD MOTOR COMPANY

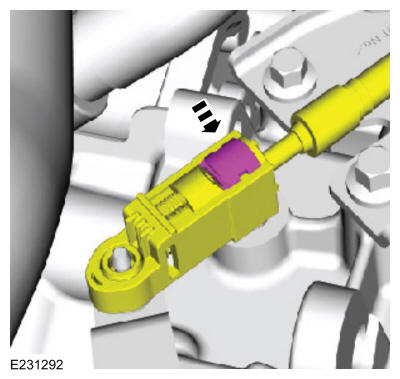

9. Snap the adjuster lock into place.

   Courtesy of FORD MOTOR COMPANY

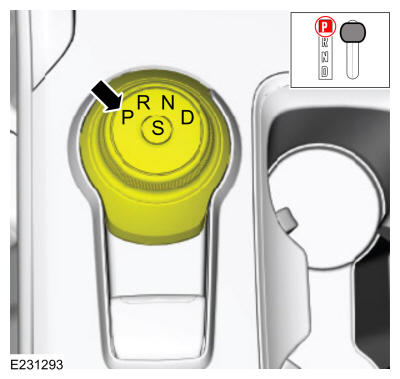

10. Choose P on the GSM.

    Courtesy of FORD MOTOR COMPANY

11. Clear any DTCs.
12. Shift the transmission through the ranges starting in P, then R, then N, then D, then N, then R and then back to P.
13. Check for DTCs.
14. Disconnect the scan tool.
15. Install the air cleaner. Refer to: Air Cleaner - 1.5L EcoBoost . Refer to: Air Cleaner - 2.0L EcoBoost . Refer to: Air Cleaner - 2.5L Duratec .
16. Verify that the vehicle starts in P and N only and that the reverse lamps illuminate in R.
