Section 133 (Engine - 2.5L DURATEC (125KW/170PS)): Installation: Engine

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	300-OTC1585AE Powertrain Lift
Courtesy of FORD MOTOR COMPANY	300-OTC1819E 2, 200# Floor Crane, Fold Away
Courtesy of FORD MOTOR COMPANY	307-566 Retainer, Torque Converter TKIT-2006C-FFMFLM, TKIT-2006C-LM, TKIT-2006C-ROW
Adjustable Mounting Arm
Hose Clamp Remover/Installer
Wooden Block

Materials

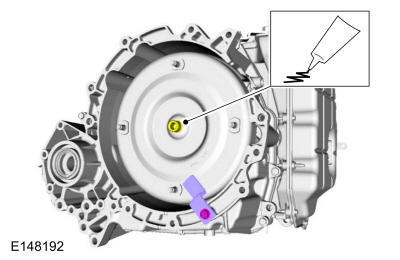

1. Lubricate the torque converter pilot hub with Multi Purpose Grease.

   Remove Special Service Tool: 307-566 Retainer, Torque Converter.

   Courtesy of FORD MOTOR COMPANY

2. NOTE: If the transmission is not positioned on the dowel pins, damage to the transmission may occur.

   If the dowel pins were pulled out of the engine block during removal, install new dowel pins in the engine block.

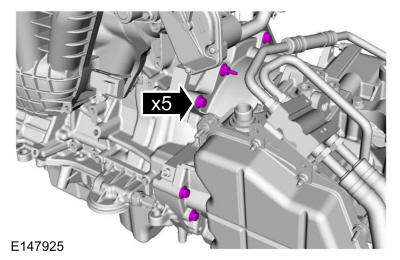

3. Install the engine and tighten the engine-to-transmission bolts.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

4. Install the transmission-to-engine bolts.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

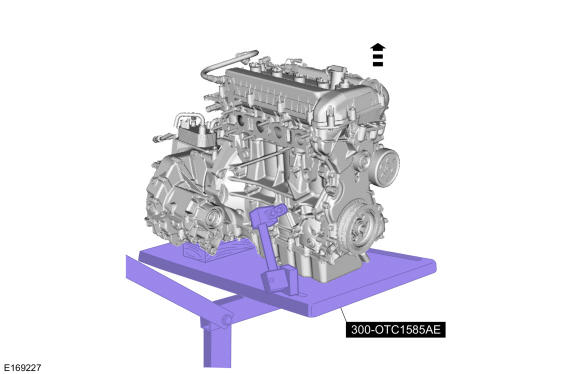

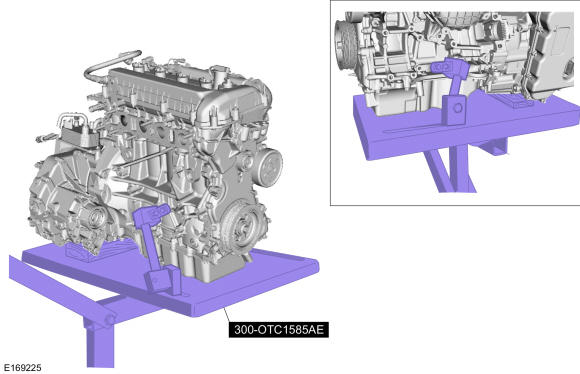

5. Position the engine and transmission onto the Powertrain Lift.

   Use Special Service Tool: 300-OTC1585AE Powertrain Lift.

   Use the General Equipment: Wooden Block

   Use the General Equipment: Adjustable Mounting Arm

   Courtesy of FORD MOTOR COMPANY

6. • Remove special service tool.
   • General Equipment: Spreader Bar

     Use Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.

   Courtesy of FORD MOTOR COMPANY

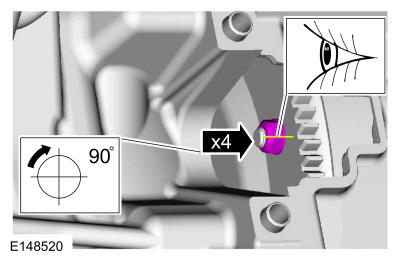

7. NOTE: Only rotate the engine in a clockwise rotation direction or engine damage may occur.

   Inspect and install the torque converter nuts.

   Torque: 30 lb.ft (40 Nm)

   Courtesy of FORD MOTOR COMPANY

8. Install the starter motor insulator.

   Courtesy of FORD MOTOR COMPANY

9. Install the starter motor and the stud bolts.

   Torque: 26 lb.ft (35 Nm)

   Courtesy of FORD MOTOR COMPANY

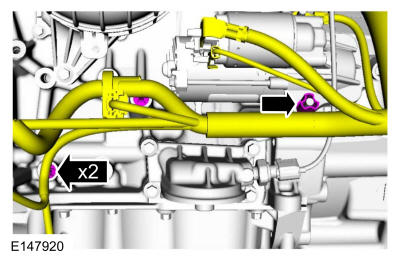

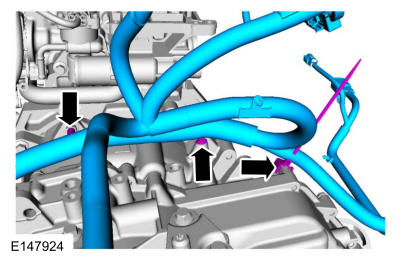

10. Position the wire harness and attach the wire harness retainers.

    Courtesy of FORD MOTOR COMPANY

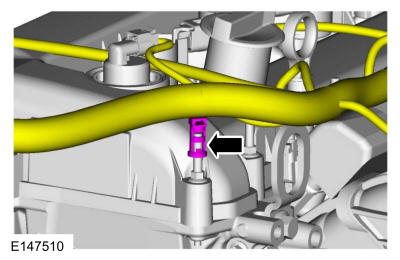

11. Attach the wire harness retainer.

    Courtesy of FORD MOTOR COMPANY

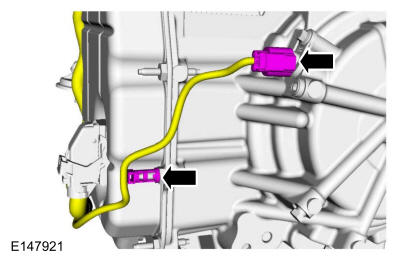

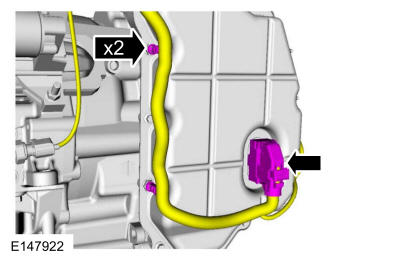

12. Attach the wire harness retainers and connect the transmission electrical connector.

    Courtesy of FORD MOTOR COMPANY

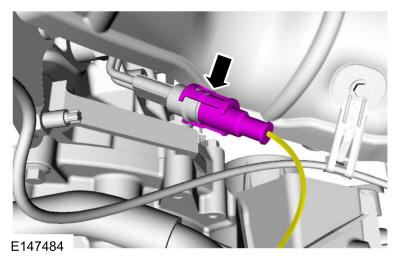

13. Attach the wire harness retainer and connect the TSS sensor electrical connector.

    Courtesy of FORD MOTOR COMPANY

14. Attach the wire harness retainers.

    Courtesy of FORD MOTOR COMPANY

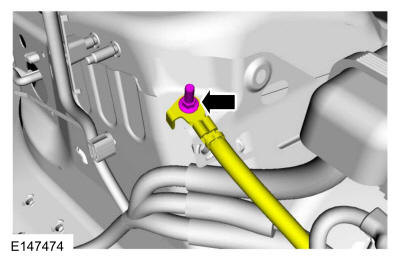

15. Install the ground cable and the nut.

    Torque: 159 lb.in (18 Nm)

    Courtesy of FORD MOTOR COMPANY

16. 1. Position the wiring and install the starter motor cable nut.

       Torque: 106 lb.in (12 Nm)

    2. Install the starter motor control wire nut.

       Torque: 44 lb.in (5 Nm)

    Courtesy of FORD MOTOR COMPANY

17. Install the coolant hose and attach the hose retainer. Connect the EGR valve coolant hose.

    Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

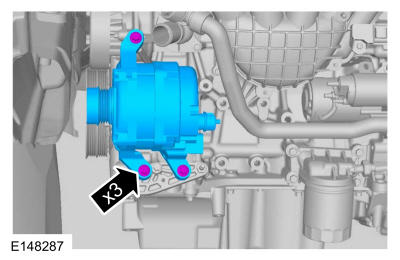

18. Install the generator and the bolts.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

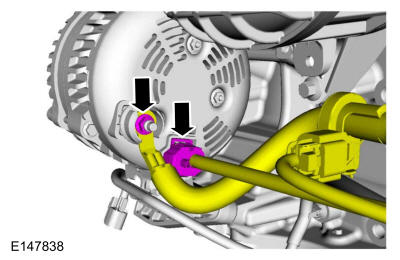

19. Connect the generator electrical connectors and install the nut.

    Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

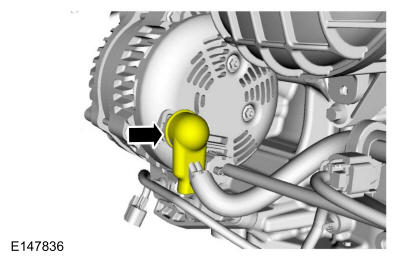

20. Position back the generator cable protective cover.

    Courtesy of FORD MOTOR COMPANY

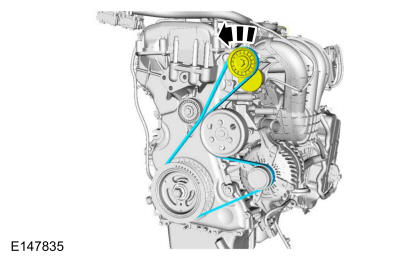

21. • Rotate the accessory drive belt tensioner counter clockwise.
    • Install the accessory drive belt.
    • Release the accessory drive belt tensioner.

    Courtesy of FORD MOTOR COMPANY

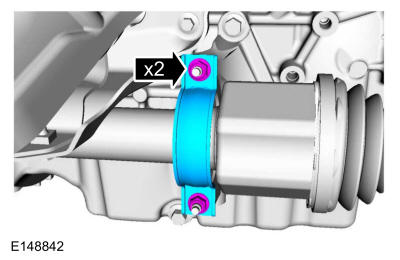

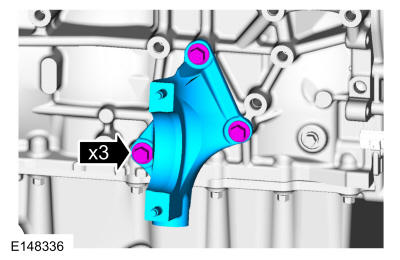

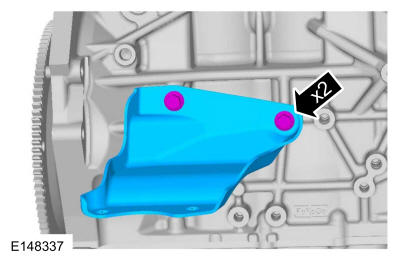

22. Install the front axle shaft bearing bracket and the bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

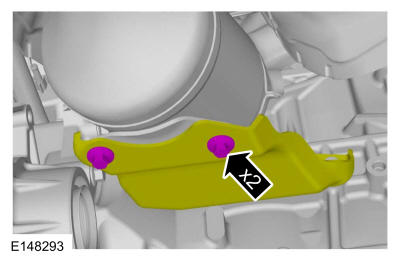

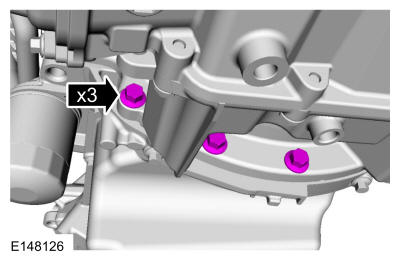

23. Install the exhaust manifold bracket and the bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

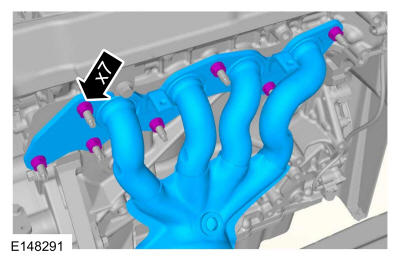

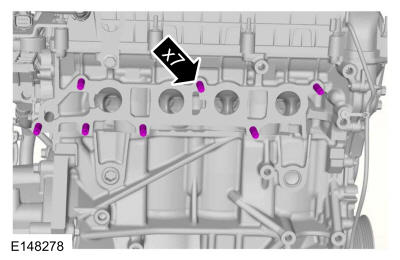

24. Install the new exhaust manifold studs.

    Torque: 150 lb.in (17 Nm)

    Courtesy of FORD MOTOR COMPANY

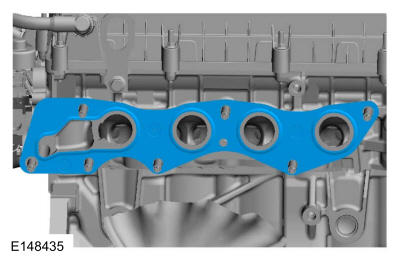

25. Install a new exhaust manifold gasket.

    Courtesy of FORD MOTOR COMPANY

26. Install the exhaust manifold and the new nuts.

    Torque: 41 lb.ft (55 Nm)

    Courtesy of FORD MOTOR COMPANY

27. Install the bolts for the exhaust manifold.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

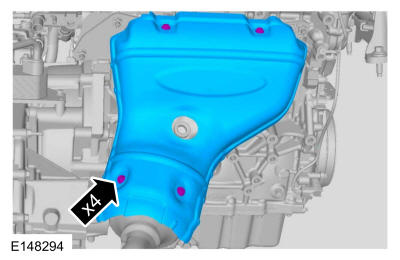

28. Install the exhaust manifold heat shield and the bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

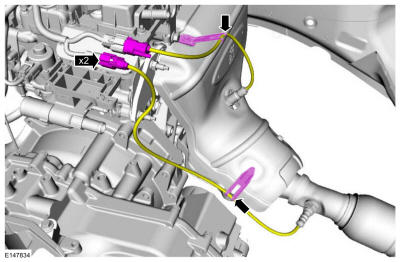

29. Attach the wire harness retainers, connect the HO2S and CMS (catalyst monitor sensor) electrical connectors.

    Courtesy of FORD MOTOR COMPANY

30. Raise the engine and transmission into the vehicle.

    Use Special Service Tool: 300-OTC1585AE Powertrain Lift.

    Use the General Equipment: Wooden Block

    Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

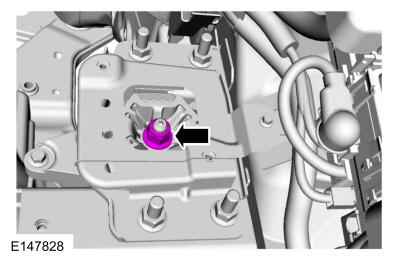

31. Install the transmission support insulator nut.

    Torque: 98 lb.ft (133 Nm)

    Courtesy of FORD MOTOR COMPANY

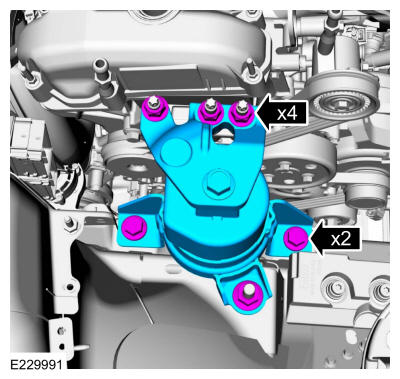

32. Install the engine mount, the bolts and the nuts.

    Torque:

    Engine mount nuts: 66 lb.ft (90 Nm)

    Engine mount bolts: 66 lb.ft (90 Nm)

    Courtesy of FORD MOTOR COMPANY

33. Remove the engine from the lift table.

    Use Special Service Tool: 300-OTC1585AE Powertrain Lift.

    Use the General Equipment: Wooden Block

    Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

34. Install the new halfshaft seals. Refer to: Halfshaft Seal LH . Refer to: Halfshaft Seal RH - FWD .

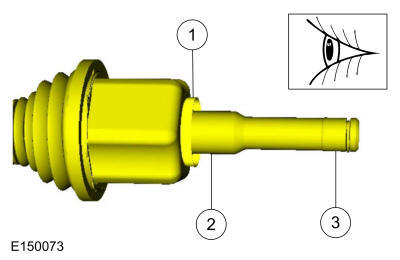

35. Inspect the LH halfshaft hub for wear or damage and install a new halfshaft, if necessary.
    1. Inspect the differential seal surface.
    2. Inspect the halfshaft bushing surface. If this surface is damaged, inspect the halfshaft bushing for damage.
    3. Inspect the differential side gear splines.

    Courtesy of FORD MOTOR COMPANY

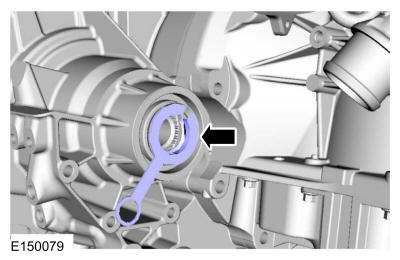

36. Install the new inner halfshaft retaining circlip.

    Courtesy of FORD MOTOR COMPANY

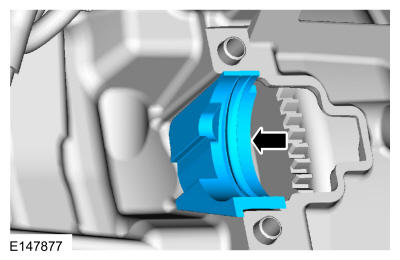

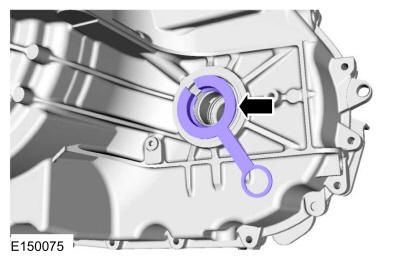

37. Install the seal protector.

    Courtesy of FORD MOTOR COMPANY

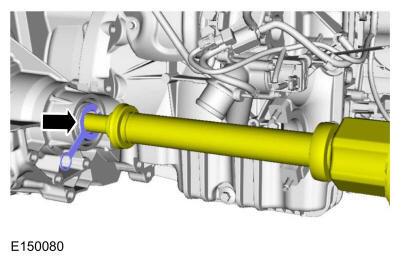

38. Using the seal protector, insert the splines of the halfshaft through the halfshaft seal and remove the seal protector.

    Courtesy of FORD MOTOR COMPANY

39. NOTE: When seated correctly, the halfshaft bearing retainer circlip can be felt as it snaps into the differential side gear groove.

    Insert the halfshaft until the halfshaft retaining clip is fully seated.

    Courtesy of FORD MOTOR COMPANY

40. Inspect the RH halfshaft hub for wear or damage and install a new halfshaft, if necessary.
    1. Inspect the RH halfshaft seal surface.
    2. Inspect the dust shield.
    3. Inspect the differential side gear splines.

    Courtesy of FORD MOTOR COMPANY

41. Install the seal protector.

    Courtesy of FORD MOTOR COMPANY

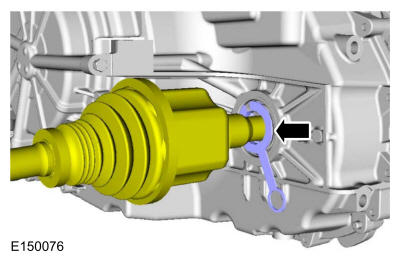

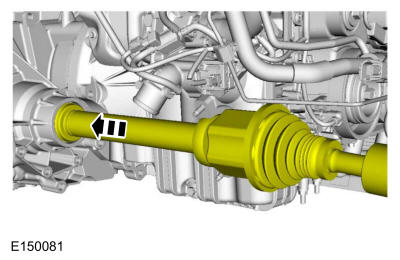

42. Push the RH halfshaft into the transmission so the splines go through the special tool and remove the seal protector.

    Courtesy of FORD MOTOR COMPANY

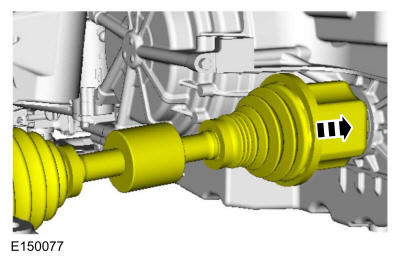

43. Install the RH halfshaft assembly.

    Courtesy of FORD MOTOR COMPANY

44. Install the bearing strap and the new halfshaft retaining nuts. Tighten the nuts in 3 stages.

    Torque:

    Stage 1: Lower nut: 44 lb.in (5 Nm)

    Stage 2: Upper nut: 18 lb.ft (25 Nm)

    Stage 3: Lower nut: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

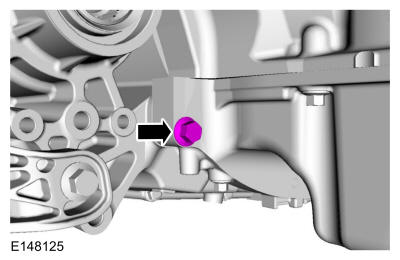

45. Install the engine bolt.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

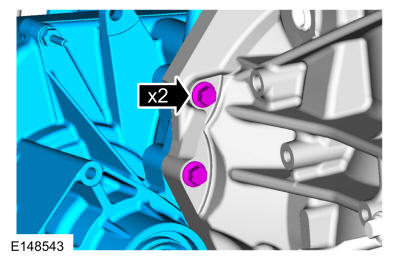

46. Install the transmission bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

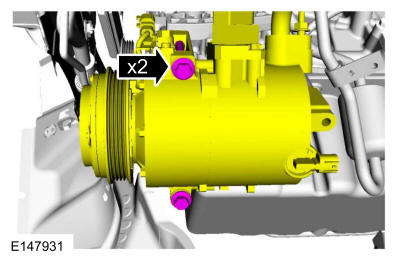

47. Position the A/C compressor and install the bolts.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

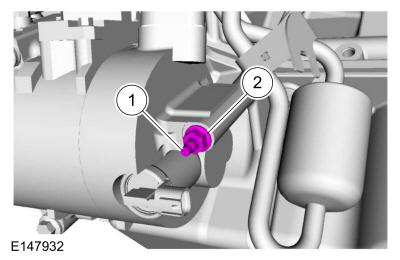

48. Install the A/C compressor stud and the nut.

    Torque:

    1: 80 lb.in (9 Nm)

    2: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

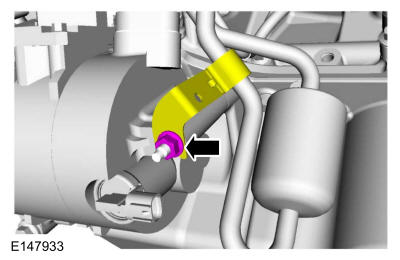

49. Position the bracket and install the nut.

    Torque: 133 lb.in (15 Nm)

    Courtesy of FORD MOTOR COMPANY

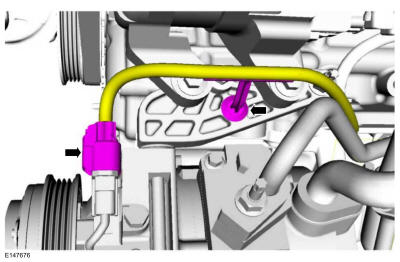

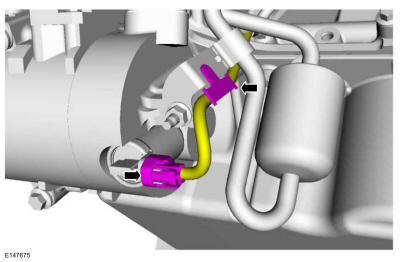

50. Attach the wire harness retainer and connect the A/C compressor electrical connector.

    Courtesy of FORD MOTOR COMPANY

51. Attach the wire harness retainer and connect the A/C compressor electrical connector.

    Courtesy of FORD MOTOR COMPANY

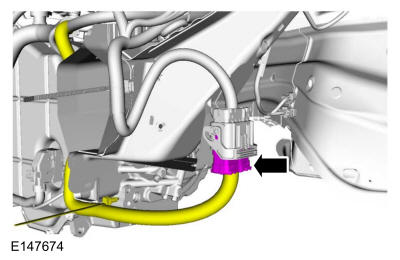

52. Connect the engine harness electrical connector

    Courtesy of FORD MOTOR COMPANY

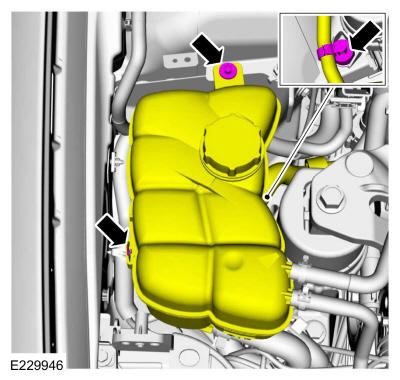

53. Attach the coolant hose retainer. Position the degas bottle and install the bolt.

    Torque: 44 lb.in (5 Nm)

    Courtesy of FORD MOTOR COMPANY

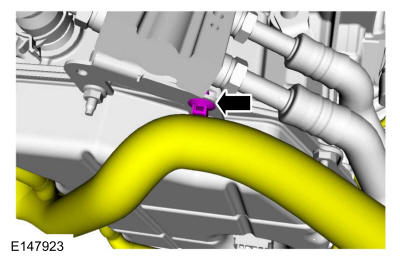

54. Attach the wire harness retainer.

    Courtesy of FORD MOTOR COMPANY

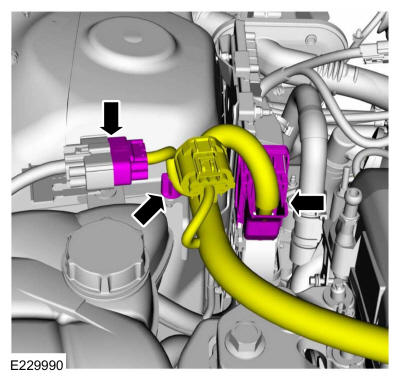

55. • Connect the PCM electrical connector.
    • Attach the wire harness retainer and connect the engine harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

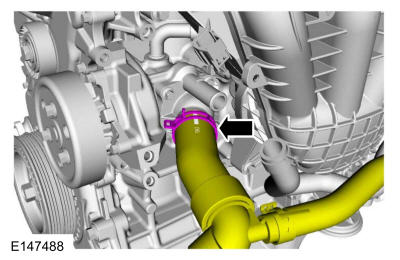

56. Connect the coolant hose.

    Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

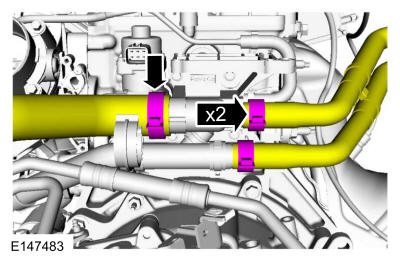

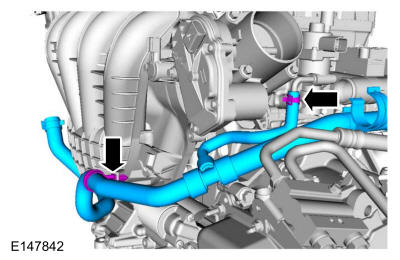

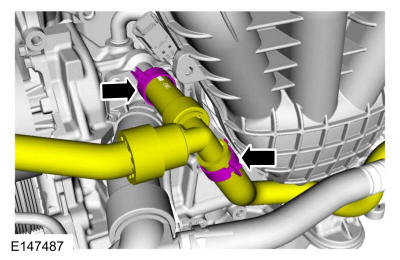

57. Connect the coolant hoses.

    Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

58. Connect the engine vent hose and attach the hose retainer.

    Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

59. If equipped.
    • Connect the block heater electrical connector.

    Courtesy of FORD MOTOR COMPANY

60. Connect the coolant hoses.

    Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

61. Position the coolant hose clip.

    Courtesy of FORD MOTOR COMPANY

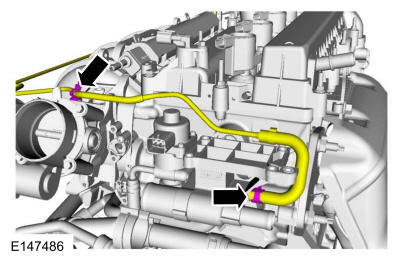

62. Connect the fuel vapor tube. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

63. Connect the fuel supply tube. Refer to: Spring Lock Couplings .

    Courtesy of FORD MOTOR COMPANY

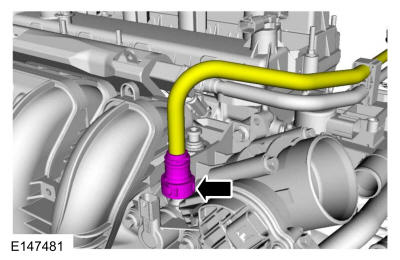

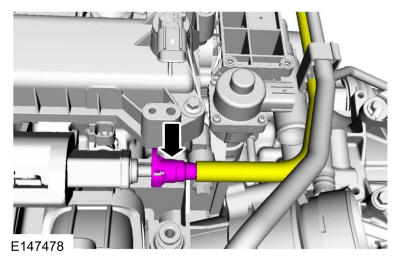

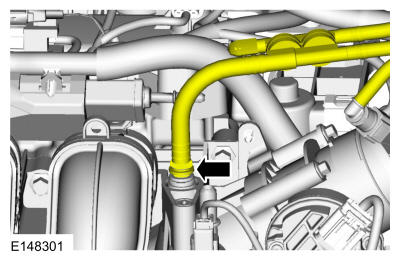

64. Connect the brake booster tube onto the intake manifold.

    Courtesy of FORD MOTOR COMPANY

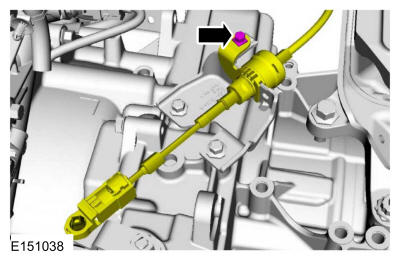

65. • Position the transmission control cable and connect the cable.
    • Install the bolt.

      Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

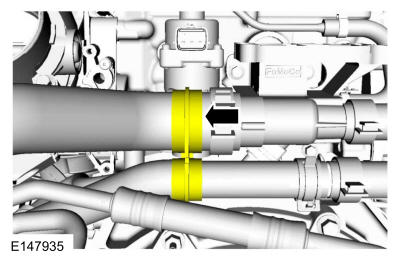

66. Connect the transmission fluid cooler tubes to the transmission fluid cooler.

    Courtesy of FORD MOTOR COMPANY

67. Install the transmission fluid cooler tube secondary latches.

    Courtesy of FORD MOTOR COMPANY

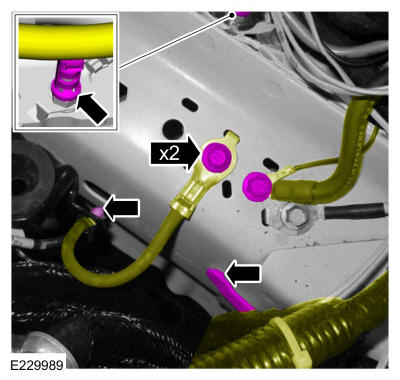

68. • Position the wire harness and attach the wire harness retainers.
    • Install the ground bolts.

      Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

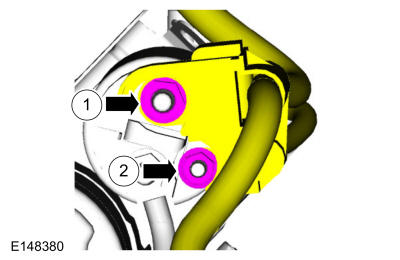

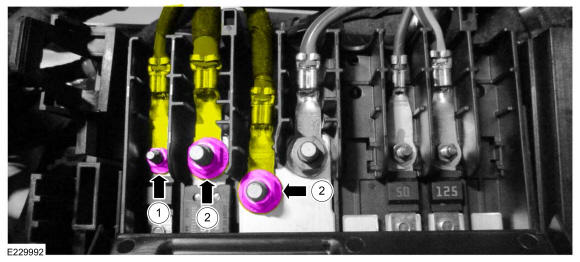

69. Position the cables and install the nuts.

    Torque:

    1: 71 lb.in (8 Nm)

    2: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

70. Close the cover.

    Courtesy of FORD MOTOR COMPANY

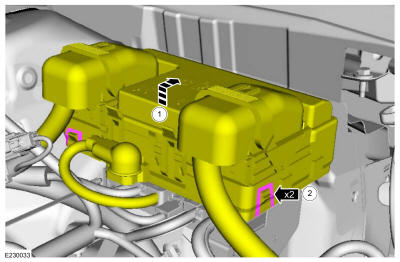

71. 1. Position the top part of the junction box.
    2. Latch the tabs.

    Courtesy of FORD MOTOR COMPANY

72. Position the ground cable and install the stud bolt.

    Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

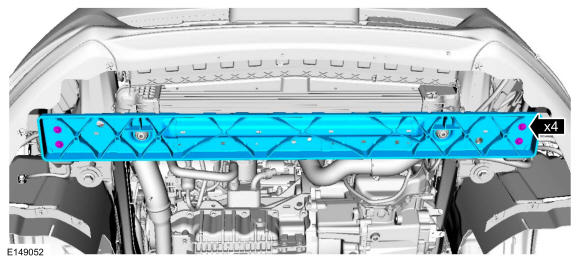

73. Remove the bolts and the cooling module support panel.

    Courtesy of FORD MOTOR COMPANY

74. Install the front subframe. Refer to: Front Subframe .
75. Install a new gasket.

    Courtesy of FORD MOTOR COMPANY

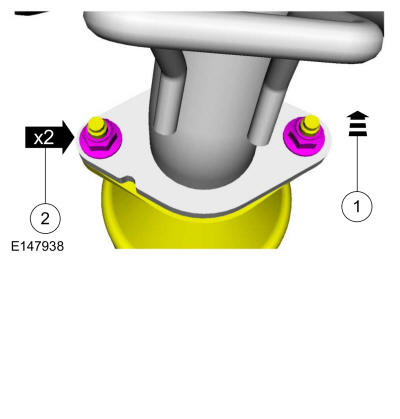

76. 1. Position the exhaust system.
    2. Install the new nuts.

       Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

77. NOTE: Do not excessively bend or twist the exhaust flexible pipe. Failure to follow these instructions may cause damage to the flexible pipe.

    Remove the exhaust flexible pipe support.

    Courtesy of FORD MOTOR COMPANY

78. Install the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .

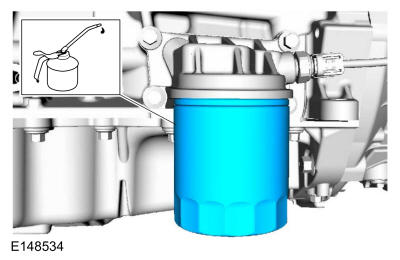

79. Tighten the oil filter three-fourths turn after the oil filter gasket makes contact with the oil filter adapter.

    Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

    Courtesy of FORD MOTOR COMPANY

80. Install the battery tray. Refer to: Battery Tray .
81. Check the selector lever cable adjustment. Refer to: Selector Lever Cable Adjustment - 6-Speed Automatic Transmission - 6F35 .
82. Install the air cleaner. Refer to: Air Cleaner .
83. Fill the engine with clean engine oil.

    Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

84. Fill and bleed the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
85. Check and fill the transmission fluid as necessary. Refer to: Transmission Fluid Drain and Refill .
86. After completing the repairs, preform the Misfire Monitor Neutral Profile Correction procedure.
