High-Pressure Fuel Pump: Installation

WARNING: This page is about a different variant/trim than selected.

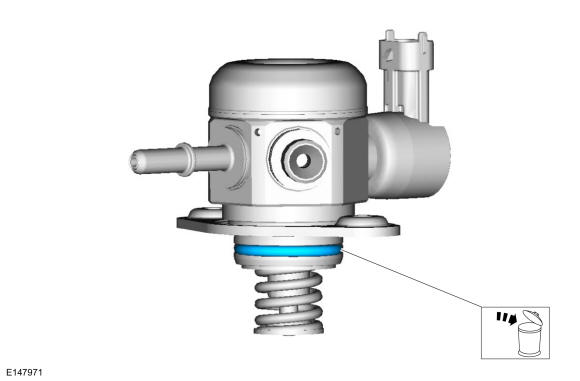

Remove and discard the high-pressure fuel pump O-ring seal.

Courtesy of FORD MOTOR COMPANY
Remove the high-pressure fuel pump drive tappet.

Courtesy of FORD MOTOR COMPANY
If any flat spots or scoring, especially in the indicated areas is found, inspect the high-pressure fuel pump and the high-pressure fuel pump tappet drive lobe. Install new components as necessary.

Courtesy of FORD MOTOR COMPANY
NOTE: Only rotate the crankshaft Clockwise (CW) or damage to the engine may occur.

NOTE: The cam lobe for the high-pressure fuel pump must be at BDC for the high-pressure fuel pump installation.

Rotate the camshaft as necessary until the cam lobe for the high-pressure fuel pump is at BDC.

Courtesy of FORD MOTOR COMPANY

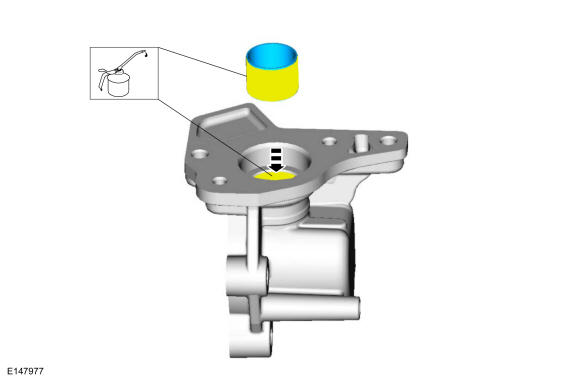

1. Lubricate the high-pressure fuel pump tappet and the high-pressure fuel pump drive unit bore with clean engine oil.
  Material

  : Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)
2. Install the high-pressure fuel pump tappet.
Courtesy of FORD MOTOR COMPANY

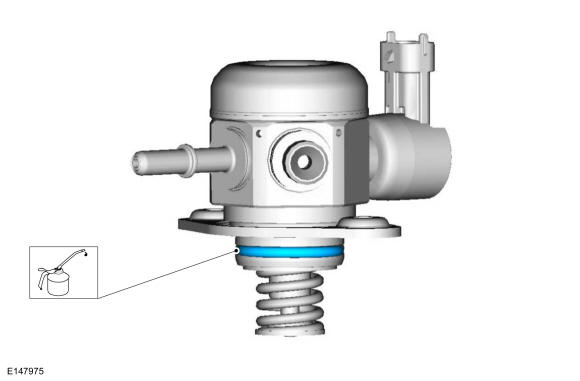

Install a new high-pressure fuel pump O-ring seal.
Material

: Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new high-pressure fuel pump bolts are installed.

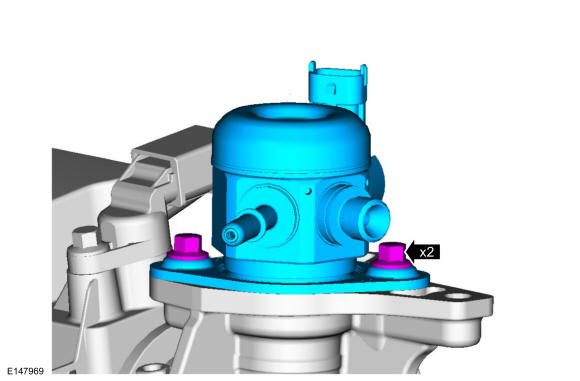

Install the high-pressure fuel pump and loosely install the new high-pressure fuel pump bolts, alternately tighten each bolt one complete revolution until seated. Tighten the high-pressure fuel pump bolts in the following 2 stages.

Torque

:Stage 1: 44 lb.in (5 Nm) Stage 2: 55°

Courtesy of FORD MOTOR COMPANY
1. Install the high-pressure fuel pump bracket, then install and tighten the high-pressure fuel pump bracket bolts.
  Torque

  : 150 lb.in (17 Nm)
- Attach the harness retainer to the high-pressure fuel pump bracket.
Courtesy of FORD MOTOR COMPANY

NOTE: Only tighten the high pressure fuel tube flare nuts finger tight at this stage.

NOTE: Only tighten the high pressure fuel tube bracket bolts finger tight at this stage.

Install the following items:

NOTE: Make sure that a new high pressure fuel tube is installed.

Install the new high-pressure fuel tube.

NOTE: Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formulas.

Tighten the high-pressure fuel tube flare nuts in the following 2 stages.

Torque

:Stage 1: 133 lb.in (15 Nm) Stage 2: 30°

Tighten the high-pressure fuel tube bracket bolts.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

Connect the high-pressure fuel pump fuel feed tube quick release coupling. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY
Attach the EVAP canister purge valve to the EVAP canister purge valve bracket, connect the EVAP canister purge valve electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when installing the high-pressure fuel pump noise insulator. Spreading the openings will aid in installing the high-pressure fuel pump noise insulator and reduce the risk of damage.
1. Install the high-pressure fuel pump noise insulator.
2. Connect the high-pressure fuel pump electrical connector.
Courtesy of FORD MOTOR COMPANY
Install the air cleaner outlet pipe.
1. Install the air cleaner outlet pipe and tighten the clamps.
  Torque

  : 44 lb.in (5 Nm)
2. Install and tighten the air cleaner outlet pipe bolt.
  Torque

  : 44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY
Reconnect the battery. Refer to: Battery Disconnect and Connect .
Pressurize the fuel system. Refer to: Fuel System Pressure Release .
