Selector Mechanism: Removal

WARNING: This page is about a different variant/trim than selected.
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.
  1. Refer to: Health and Safety Precautions .
  2. Disconnect the battery. Refer to: Battery Disconnect and Connect .
  3. Remove the air cleaner assembly.

    • Loosen the clamp and position aside the air cleaner outlet pipe from the air cleaner.

    • Disconnect the electrical connector and detach the wiring harness retainer.

    • Disconnect the air cleaner inlet tube and remove the air cleaner assembly.

    GFD268958Courtesy of FORD MOTOR COMPANY
  4. Position aside the wiring harness.

    • Remove the nut and position aside the wiring harness.

    • Disconnect the electrical connector and position aside the wiring harness.

    GFD268959Courtesy of FORD MOTOR COMPANY
  5. Remove the shift cables from the transmission.

    • Release the shift cable locks.

    • Remove the shift cable ends from ballstuds.

    GFD268960Courtesy of FORD MOTOR COMPANY

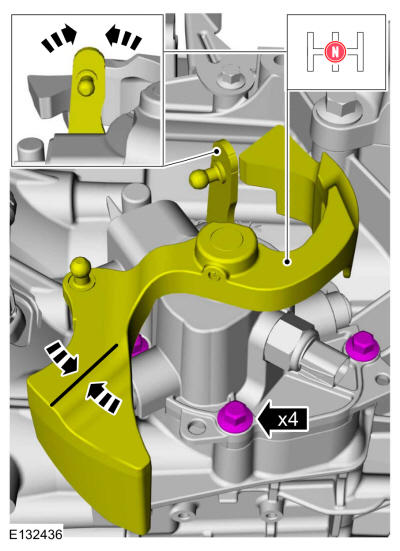

  6. Set the selector mechanism in the neutral (N) position and remove the bolts.
    GFD268961Courtesy of FORD MOTOR COMPANY

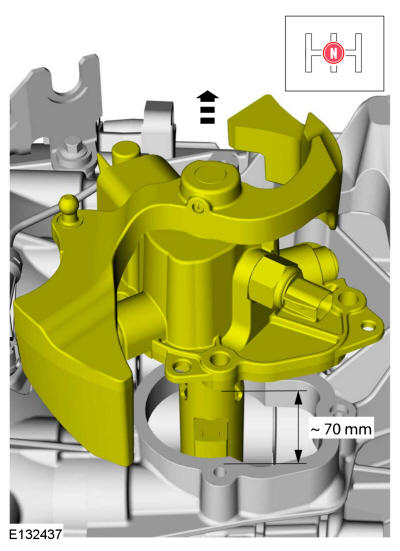

  7. Set the manual shift lever in the neutral (N) position.
    GFD268962Courtesy of FORD MOTOR COMPANY

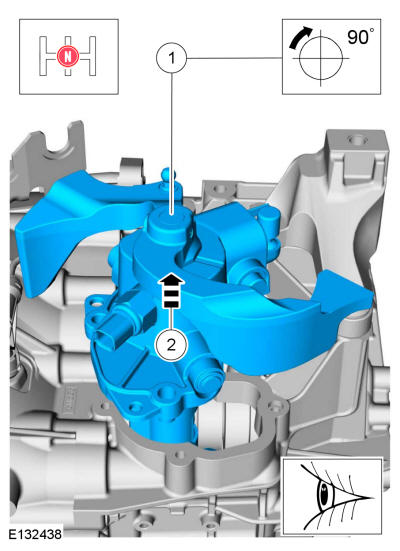

  8. Remove the selector mechanism.

    1. Set the manual shift lever in the neutral (N) position. Turn the component CW through 90 degrees.
    2. NOTE: Make sure that no components catch.

      Remove the selector mechanism.

GFD268963Courtesy of FORD MOTOR COMPANY
