Selector Mechanism - 2.3L EcoBoost (257kW/350PS) - MI4: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Make sure that the mating faces are clean and free of foreign material.

Apply the sealant.

Material

: Motorcraft® Gasket Maker / TA-16 (WSK-M2G348-A5)

Courtesy of FORD MOTOR COMPANY

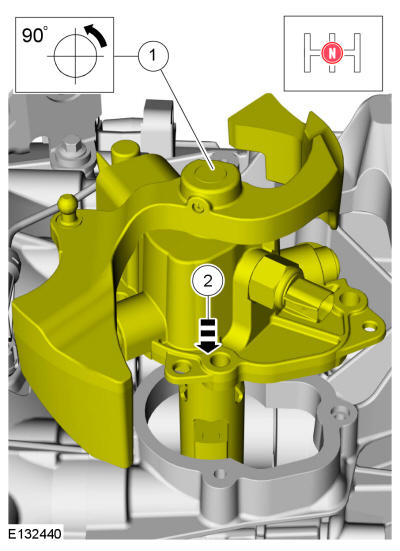

1. NOTE: Make sure that no components catch.

  Set the manual shift lever to the neutral (N) position. Visual check.
Courtesy of FORD MOTOR COMPANY
1. Turn the component CCW through 90 degrees.
2. NOTE: Make sure that no components catch.

  Push the selector mechanism to full down position.
Courtesy of FORD MOTOR COMPANY
Install the bolts.
Torque

: 19 lb.ft (26 Nm)

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

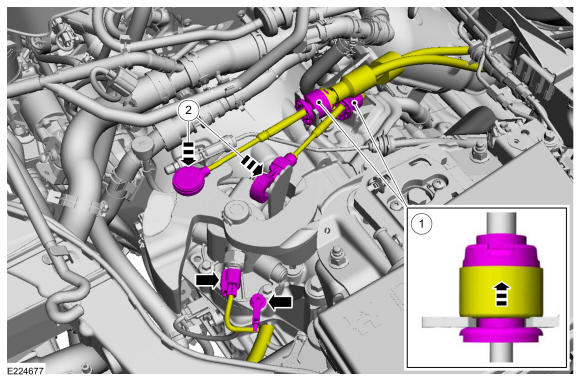

Adjust the gearshift cable. Refer to: Gearshift Cable Adjustment - 6-Speed Manual Transmission - MMT6 .
Install the air cleaner assembly.
- Install the air cleaner assembly and connect the air cleaner inlet tube.
- Connect the electrical connector and detach the wiring harness retainer.
- Connect the air cleaner outlet pipe and tighten the clamp.
Courtesy of FORD MOTOR COMPANY
Refer to: Battery Disconnect and Connect .
