Input Shaft Seal: Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .
Remove the transmission. Refer to: Transmission - 2.0L EcoBoost (184kW/250PS) - MI4 .
Remove the bolts and the clutch slave cylinder.

Courtesy of FORD MOTOR COMPANY
NOTE: Take extra care not to damage the bearing.

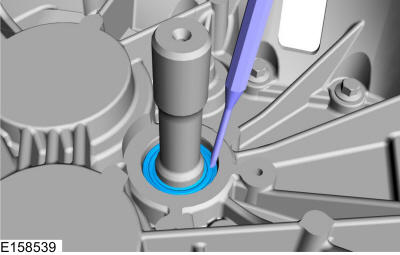

Using a punch, poke a hole in the input shaft seal.

Courtesy of FORD MOTOR COMPANY

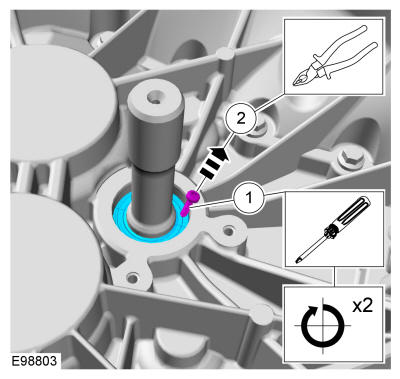

1. Using a 2.5 x 15 mm self-tapping screw, thread a 2.5 x 15 mm self tapping screw into the input shaft seal 2 complete turns.
2. Using a pair of pliers, pull on the screw and remove the seal.

Courtesy of FORD MOTOR COMPANY
