Halfshaft Seal LH: Installation

WARNING: This page is about a different variant/trim than selected.

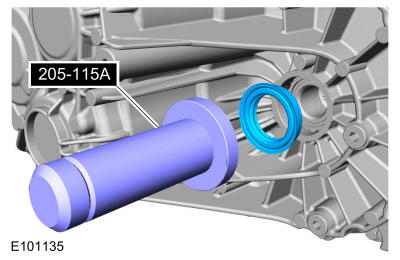

  1. Install the halfshaft seal. Use Special Service Tool: 205-115 Installer, Drive Pinion Seal.
    GFD268944Courtesy of FORD MOTOR COMPANY
  2. Install the LH halfshaft. Refer to: Front Halfshaft LH .
  3. Check the transmission fluid level. Refer to: Transmission Fluid Level Check  .
    1. Install the underbody shield.
    2. Install the air deflector.
    GFD266068Courtesy of FORD MOTOR COMPANY
  5. Lower the Vehicle.
