Transmission Fluid Level Check

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Materials

Name	Specification
Motorcraft® Dual Clutch Transmission Fluid XT-11-QDC	WSS-M2C200-D2

Check

Refer to: Health and Safety Precautions in GENERAL INFORMATION (EXCEPT ELECTRIC)
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
If equipped. Remove the underbody shield.
1. Remove the air deflector.
2. Remove the underbody shield.
Courtesy of FORD MOTOR COMPANY
WARNING: Be prepared to collect escaping fluid.

Remove the fill plug.

Courtesy of FORD MOTOR COMPANY

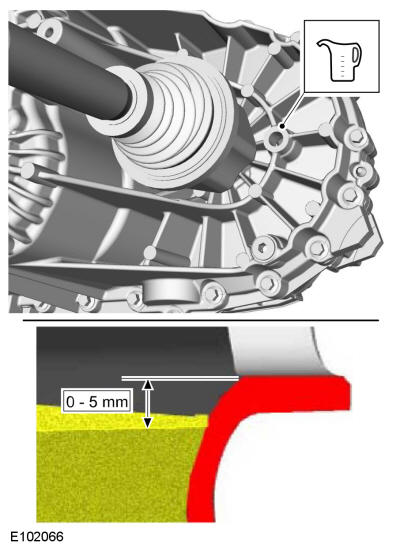

Add or remove transmission fluid as necessary.
Material

: Motorcraft® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)

Courtesy of FORD MOTOR COMPANY
Install the fill plug.
Torque

: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped. Install the underbody shield.
1. Install the underbody shield.
2. Install the air deflector.
Courtesy of FORD MOTOR COMPANY
Lower the Vehicle.
