Transmission - 2.3L EcoBoost (257kW/350PS) - MI4
WARNING: This page is about a different variant/trim than selected.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Special Tool(s) / General Equipment
| 303-1554 Engine Support Bar | |
|---|---|
| Ford Diagnostic Equipment | |
| Transmission Jack | |
| Retaining Strap | |
| Wooden Block |
Materials
| Name | Specification |
|---|---|
| Grease - High Temperature | ESD-M1C220-A |

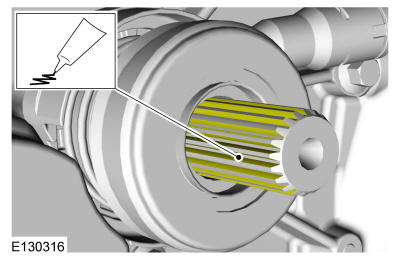

- Lubricate the input shaft with a thin coating of grease.
Material
: Grease - High Temperature (ESD-M1C220-A)

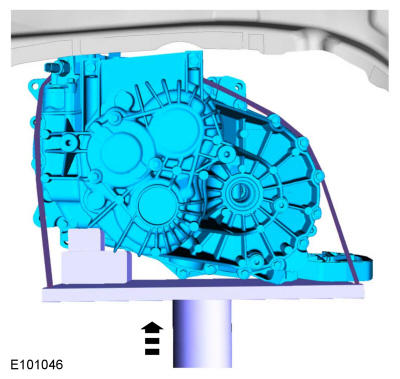

- Install the transmission.

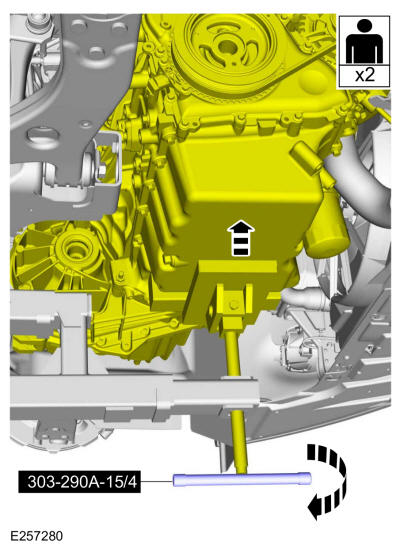

- Using the special tool and the help from an assistant, raise the powertrain. Use Special Service Tool: 303-1554 Engine Support Bar.
- Install the bell housing bolts. Tighten on both sides simultaneously.
Torque
: 35 lb.ft (48 Nm)

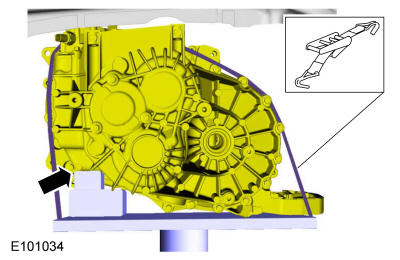

- Remove the General Equipment: Wooden Block. Remove the General Equipment: Transmission Jack. Remove the General Equipment: Retaining Strap
- Use Special Service Tool: 303-1554 Engine Support Bar.

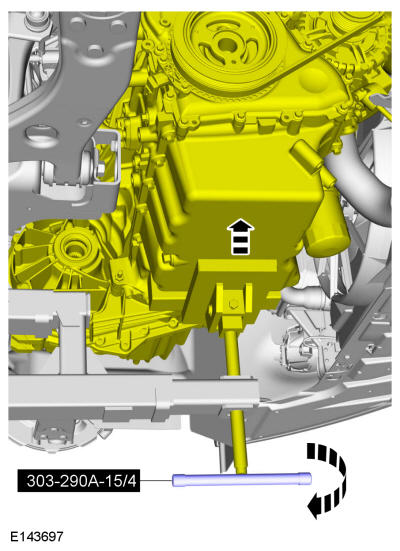

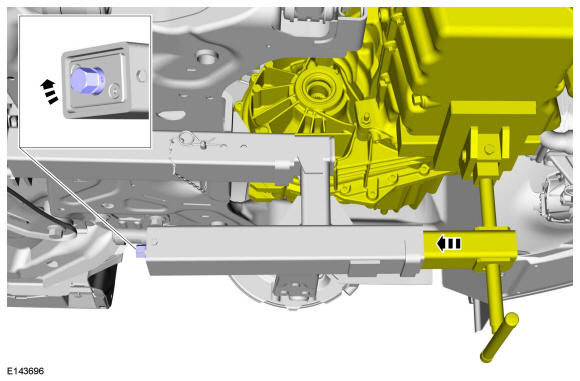

- Using the special tool, raise the powertrain. Use Special Service Tool: 303-1554 Engine Support Bar.

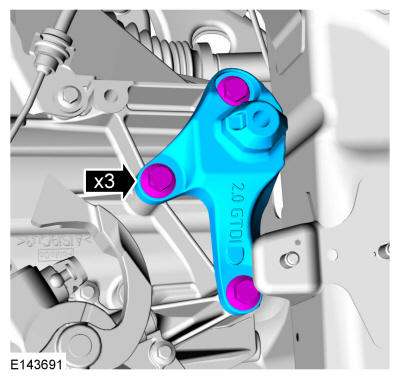

- Install the transmission support insulator bracket.
Torque
: 59 lb.ft (80 Nm)

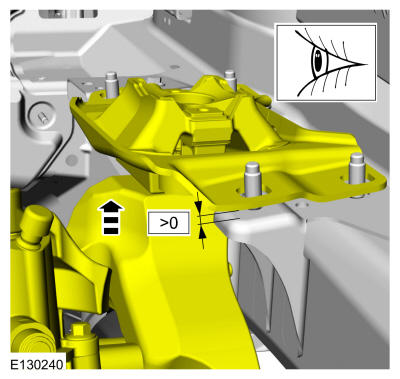

- Raise the engine and transmission assembly to align the transmission support insulator.
-
WARNING: Make sure that a new bolt is installed.

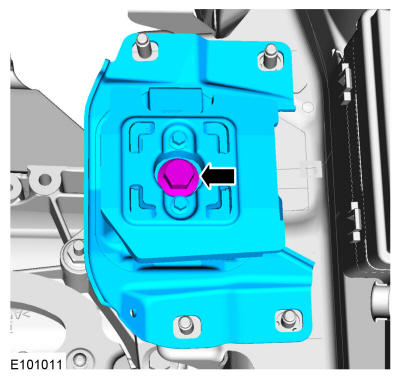

Install the transmission support insulator and the bolt.
Torque
: 109 lb.ft (148 Nm)
-
NOTE: Be prepared to collect escaping fluid.
Install the clutch hydraulic tube in the slave cylinder.
- Remove Special Service Tool: 303-1554 Engine Support Bar.

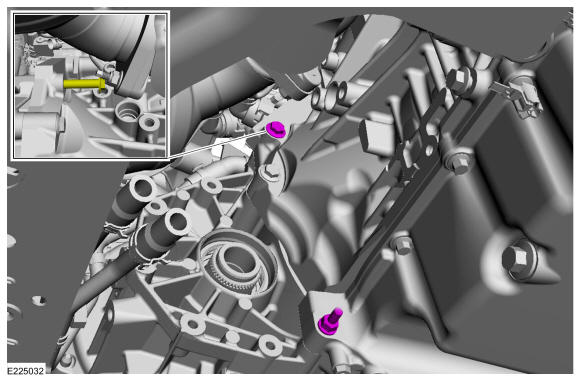

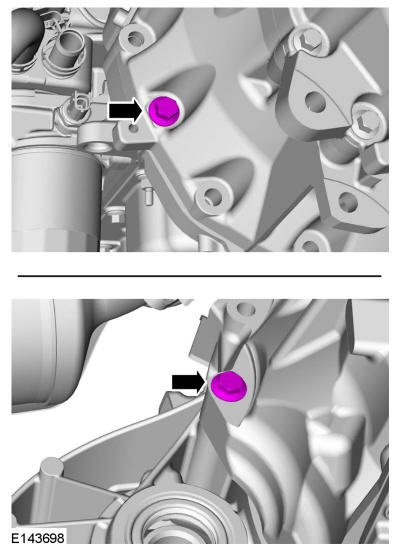

- Install the bell housing bolts.
Torque
: 35 lb.ft (48 Nm)
- Install the bell housing bolts.
Torque
: 35 lb.ft (48 Nm)
- Install the LH front halfshaft. Refer to: Front Halfshaft LH .

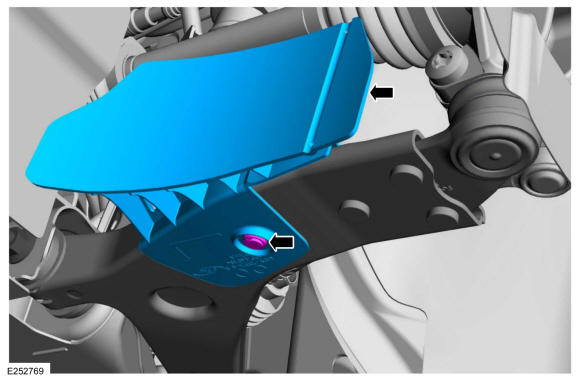

- Install the lower control arm shield and push pin.

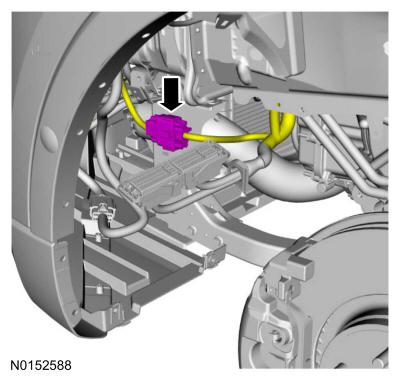

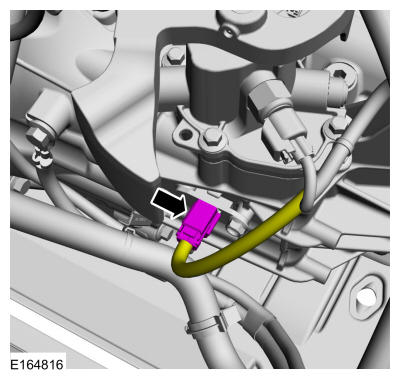

- Connect the electrical connector.

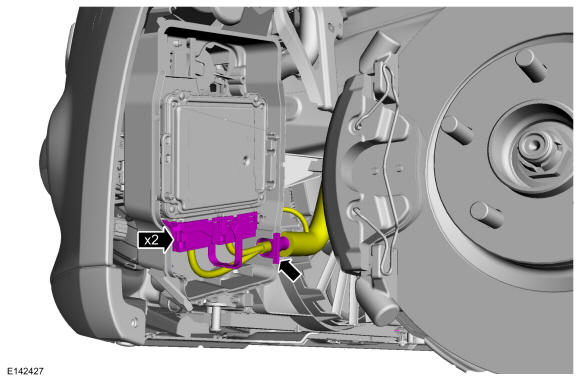

- Position the harness back and connect the ECM.
- Install the ECM cover and retainers.
- Install the LHF inner splash shield and brake air duct cooler tube.

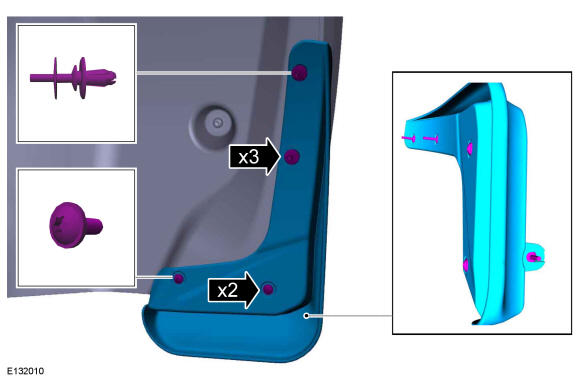

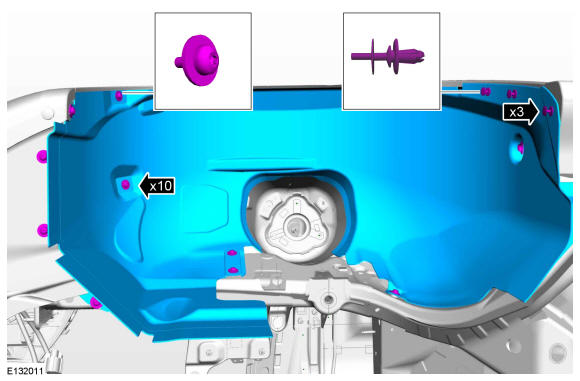

- If equipped. Install the LHF inner fender splash shield and retainers.

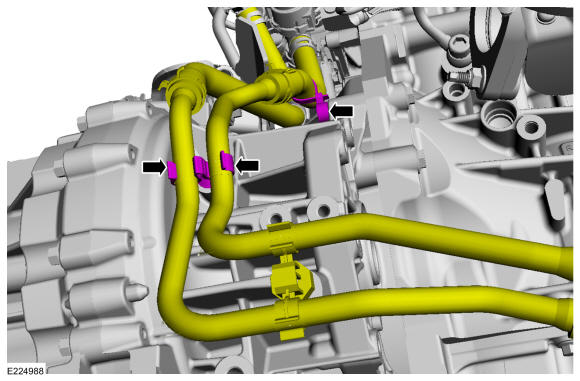

- Position back the PTU cooler hoses and retainers.

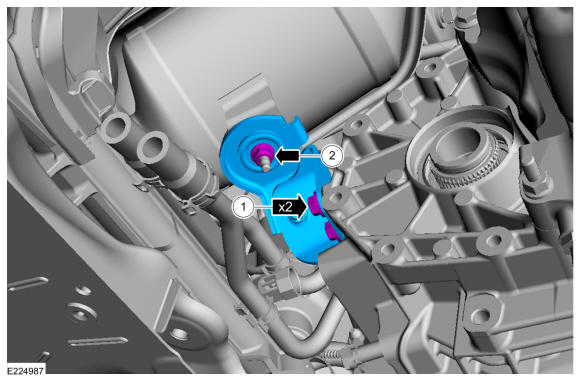

- Install the catalytic converter bracket and retainers.
- Install the bracket to transmission retainers.
Torque
: 22 lb.ft (30 Nm)
- Install the bracket to catalytic converter retainer.
Torque
: 18 lb.ft (25 Nm)
- Install the bracket to transmission retainers.
- Install the PTU. Refer to: Power Transfer Unit .

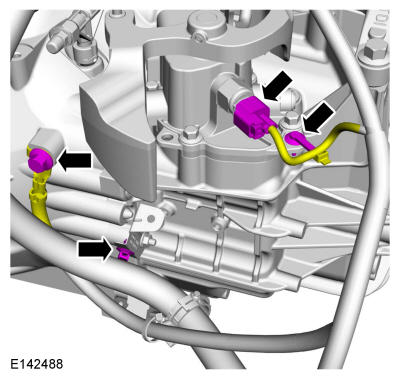

- If equipped. Connect the electrical connector.

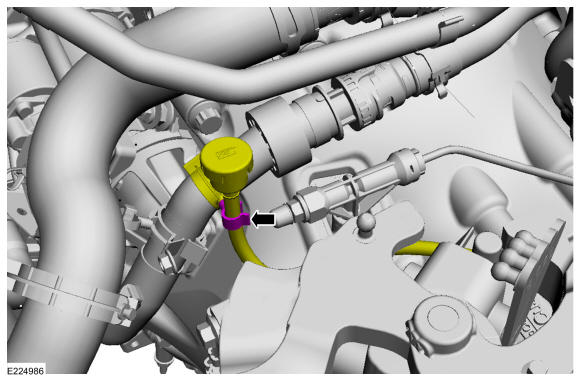

- Position the transmission breather tube and retainer clip.

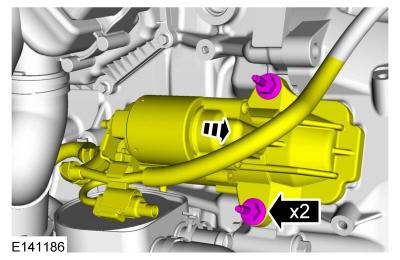

- Tighten the starter.
Torque
: 30 lb.ft (40 Nm)

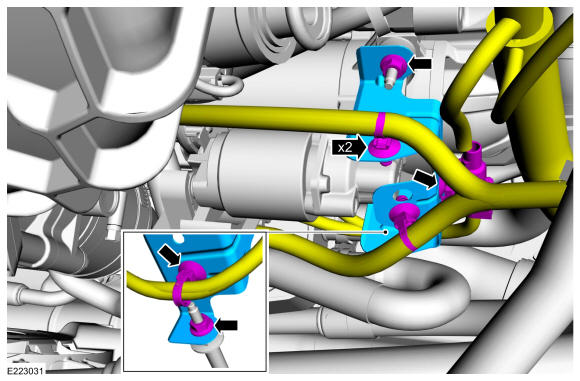

- Position back the wiring harness, install the retainer nuts and brackets
Torque
: 89 lb.in (10 Nm)
- Install the wiring bracket and install the nuts.
Torque
: 18 lb.ft (25 Nm)
- If equipped. Install the engine appearance cover.

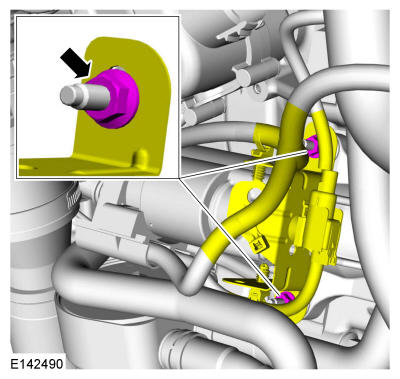

- Install the ground strap and the bolt. Connect the electrical connector and the wiring retainer.
Torque
: 18 lb.ft (25 Nm)

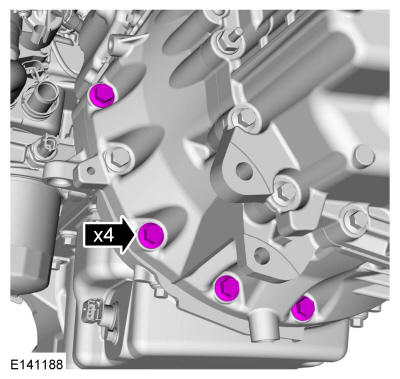

- Install the bell housing bolts.
Torque
: 35 lb.ft (48 Nm)
- Connect the gearshift cables.
- Adjust the gearshift cable. Refer to: Gearshift Cable Adjustment - 6-Speed Manual Transmission - MMT6 .

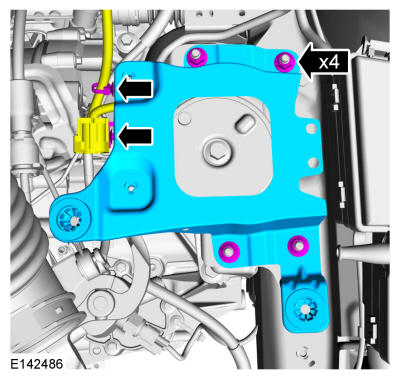

- Install the battery tray support bracket and the nuts. Connect the wiring retainers.
Torque
: 35 lb.ft (48 Nm)
- Install the cooling fan and shroud. Refer to: Cooling Fan Motor and Shroud .
- Bleed the clutch hydraulic system. Refer to: Clutch System Bleeding - 6-Speed Manual Transmission - MMT6 .
- Install the battery tray. Refer to: Battery Tray .
- Check the transmission fluid level. Refer to: Transmission Fluid Level Check - 2.3L EcoBoost (257kW/350PS) - MI4 .

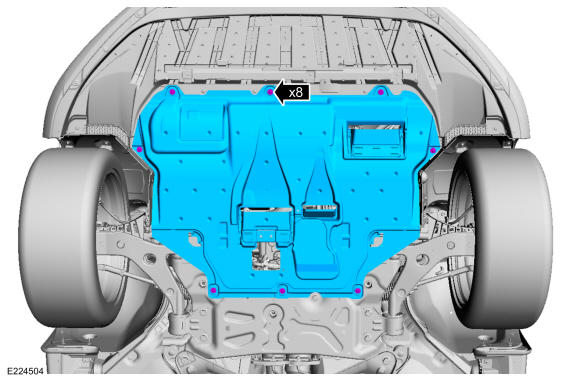

- If equipped. Install the underbody shield.
- After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure. Use the General Equipment: Ford Diagnostic Equipment
