Transmission Fluid Level Check - 2.3L EcoBoost (257kW/350PS) - MI4

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Materials

Name	Specification
Motorcraft® Dual Clutch Transmission Fluid XT-11-QDC	WSS-M2C200-D2

Check

Refer to: Health and Safety Precautions .
Refer to: Jacking and Lifting - Overview .

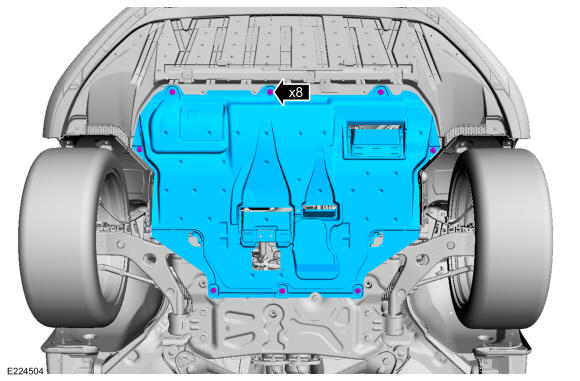

Remove the underbody shield.

Courtesy of FORD MOTOR COMPANY

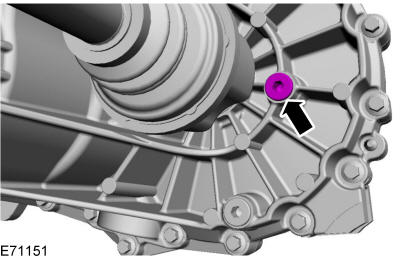

WARNING: Be prepared to collect escaping fluid.

Courtesy of FORD MOTOR COMPANY

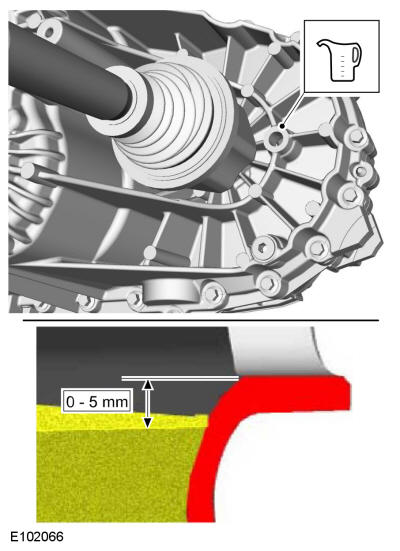

Material
: Motorcraft® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)

Courtesy of FORD MOTOR COMPANY
Torque
: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY
Install the underbody shield.

Courtesy of FORD MOTOR COMPANY
Lower the Vehicle.
