Input Shaft Seal: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the transmission. Refer to: Transmission .
Remove the bolts and the clutch slave cylinder.

Courtesy of FORD MOTOR COMPANY
NOTE: Take extra care not to damage the bearing.

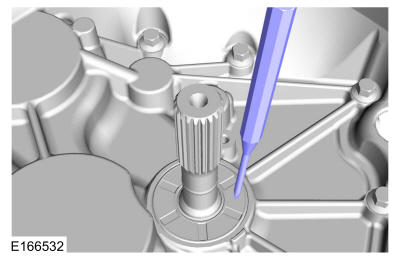

Using a punch, pierce the input shaft seal. Use the General Equipment: Center Punch

Courtesy of FORD MOTOR COMPANY

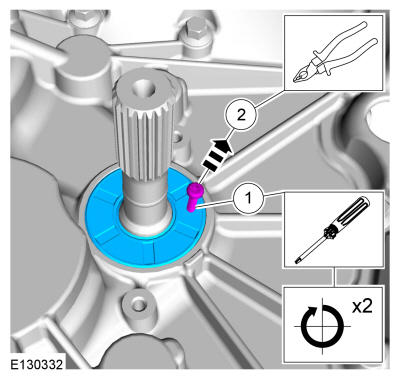

1. Drive a 2.5 x 15 mm self-tapping screw into the input shaft seal.
2. Using a pair of pliers, remove the input shaft seal by pulling on the screw.

Courtesy of FORD MOTOR COMPANY
