Halfshaft Seal LH: Installation
WARNING: This page is about a different variant/trim than selected.

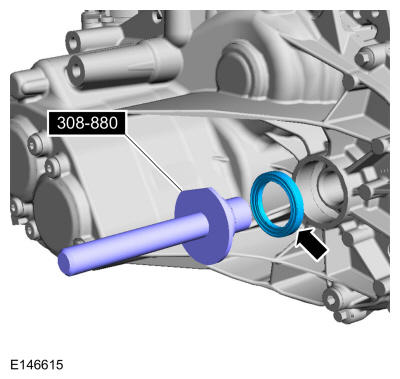

- Using the special tool, install a new LH halfshaft seal. Use Special Service Tool: 308-880 Installer, Driveshaft Seal.
- Install the LH halfshaft. Refer to: FRONT HALFSHAFT LH .
- Fill the transmission. Refer to: Transmission Draining and Filling .
- Install the underbody shield.
