Clutch Slave Cylinder - 6-Speed Manual Transmission - MMT6: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Remove the transmission. Refer to: Transmission - 2.0L EcoBoost (184kW/250PS) - MI4 .

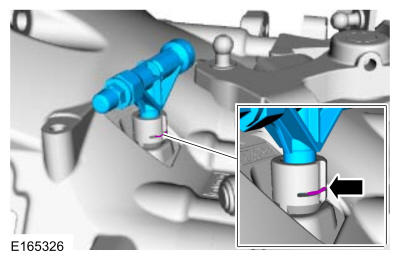

Remove the retainer and remove the clutch bleeder.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and remove the slave cylinder.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
