Clutch Slave Cylinder - 5-Speed Manual Transmission - MTX75: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Make sure that a new component is installed.

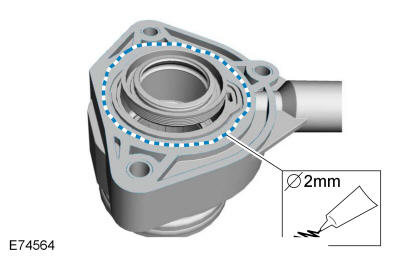

Apply a continuous bead of sealant to the back of the new slave cylinder.

Material

: Motorcraft® Gasket Maker / TA-16 (WSK-M2G348-A5)

Courtesy of FORD MOTOR COMPANY

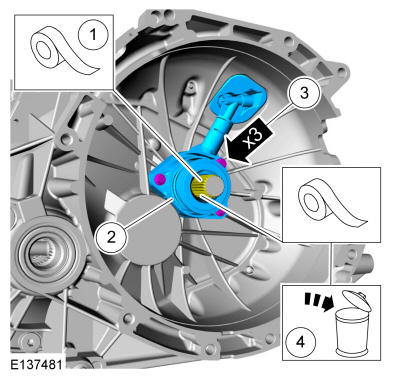

1. NOTE: Use adhesive tape to cover the input shaft splines to prevent damage to the input shaft seal.

  Apply tape to input shaft splines.
2. Install the clutch slave cylinder.
3. NOTE: Make sure that new components are installed.

  Install the bolts.

  Torque

  : 97 lb.in (11 Nm)
4. Remove and discard the tape.
Courtesy of FORD MOTOR COMPANY
Install the transmission. Refer to: Transmission .
