Clutch Disc and Pressure Plate - 6-Speed Manual Transmission - MMT6: Installation
WARNING: This page is about a different variant/trim than selected.
-

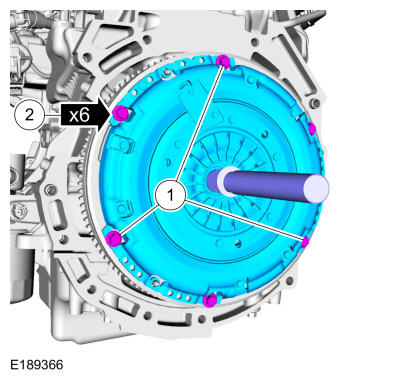

- Install the clutch disc and pressure plate on the flywheel. Center the clutch disc to the crankshaft with a clutch alignment tool. Tighten every other pressure plate bolt 2 turns at a time. Use the General Equipment: Clutch Alignment Tool
Torque
: 16 lb.ft (22 Nm)
- Torque
: 21 lb.ft (29 Nm)
- Install the clutch disc and pressure plate on the flywheel. Center the clutch disc to the crankshaft with a clutch alignment tool. Tighten every other pressure plate bolt 2 turns at a time. Use the General Equipment: Clutch Alignment Tool
- Install the transmission. Refer to: Transmission - 2.3L EcoBoost (257kW/350PS) - MI4 .
