Transmission Fluid Cooler Tubes: Installation

WARNING: This page is about a different variant/trim than selected.

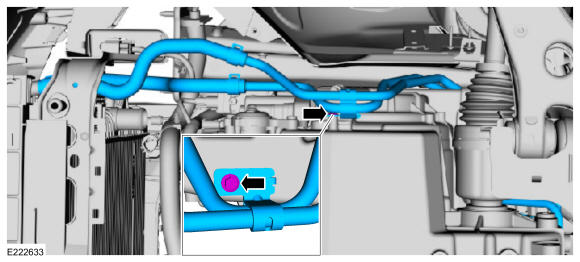

Install the transmission fluid cooler tube assembly and the bolt.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

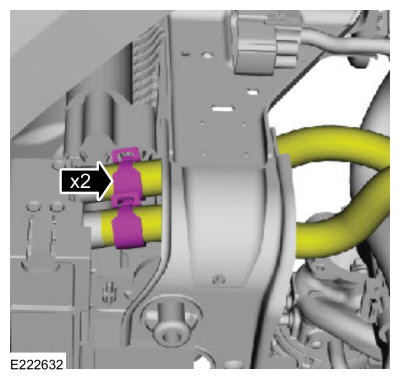

Connect the transmission fluid cooler hoses and position the clamps.

Courtesy of FORD MOTOR COMPANY

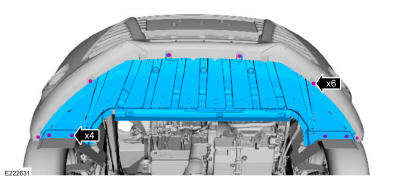

Install the splash shield and the retainers.

Courtesy of FORD MOTOR COMPANY
Tighten the cooler bypass valve-to-transmission fluid cooler fittings.
Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
Install the splash shield and the retainers.

Courtesy of FORD MOTOR COMPANY
Inspect and lubricate the band seals and backing rings.
1. Backing ring (7J324).
2. Band seal (7D285).
  Material

  : Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A) (MERCON® ULV)
Courtesy of FORD MOTOR COMPANY
Install the transmission-to-cooler bypass valve tubes and finger tighten the fittings.

Courtesy of FORD MOTOR COMPANY
Install the transmission-to-cooler bypass valve tube bolts.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the selector lever cable bracket and the bolts.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Install the battery tray support bracket and nuts.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Install the battery tray. Refer to: Battery Tray .
Install the air cleaner. Refer to: Air Cleaner .
Adjust the selector lever cable. Refer to: Selector Lever Cable Adjustment .
Check and adjust the transmission fluid level. Refer to: Transmission Fluid Level Check .
