Selector Lever Cable Adjustment

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Adjustment

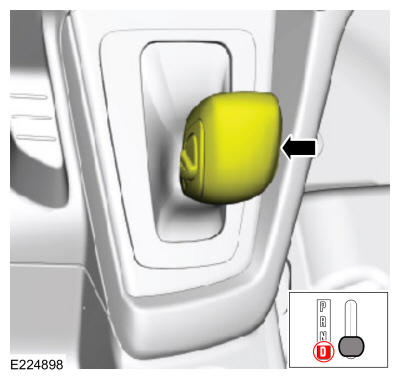

Position the selector lever in D.

Courtesy of FORD MOTOR COMPANY
Remove the air cleaner. Refer to: Air Cleaner .

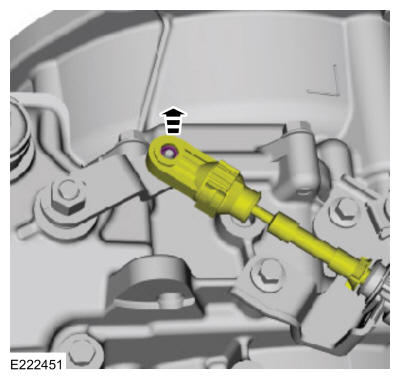

Disconnect the selector lever cable from the transmission manual lever.

Courtesy of FORD MOTOR COMPANY

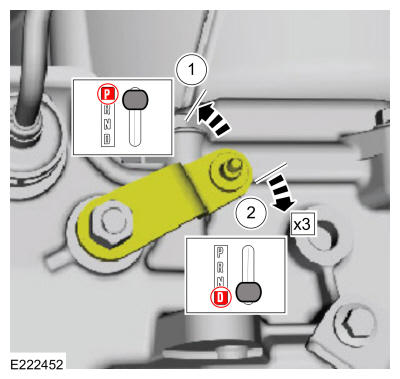

Position the transmission manual lever in D.
1. Rotate the transmission manual lever counterclockwise until it stops.
2. Rotate the transmission manual lever 3 detents into D.
Courtesy of FORD MOTOR COMPANY

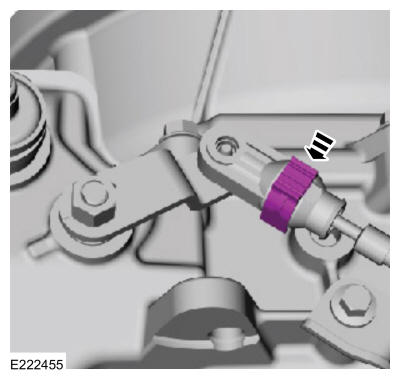

Pry up the selector lever cable adjuster lock.

Courtesy of FORD MOTOR COMPANY

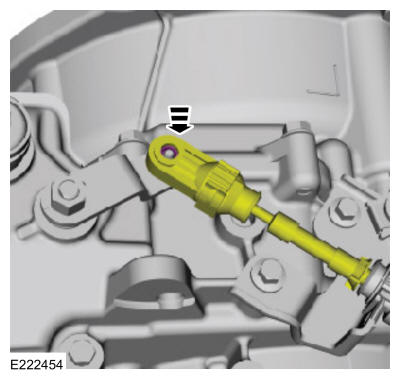

Connect the selector lever cable to the transmission manual lever.

Courtesy of FORD MOTOR COMPANY
Push the adjuster lock into place.

Courtesy of FORD MOTOR COMPANY
Install the air cleaner. Refer to: Air Cleaner .
Verify that the engine starts in P and N only and that the reverse lamps illuminate in R.
