Transmission Range (TR) Sensor: Installation
WARNING: This page is about a different variant/trim than selected.
- Install the TR sensor.

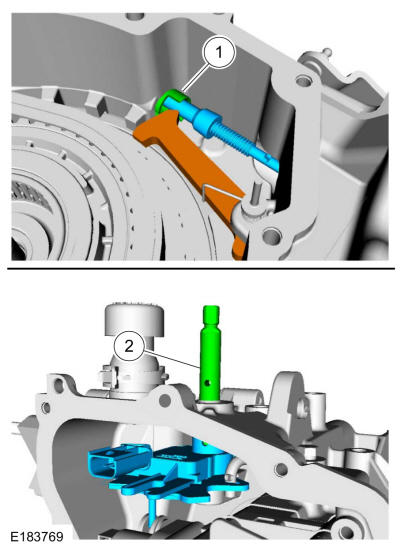

- Install the TR sensor and park pawl actuating rod in the transmission case.
- Install the manual shaft in the transmission case through the TR sensor.

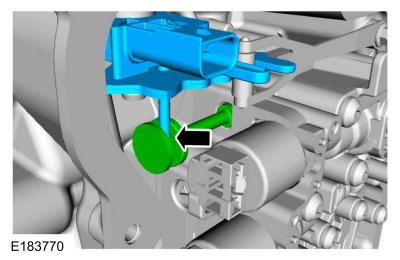

- Inspect the manual pin to make sure it is correctly installed in the manual valve. If it is not, pull the manual control lever shaft out and correctly install the manual pin in the manual valve and position the manual control lever shaft in place.

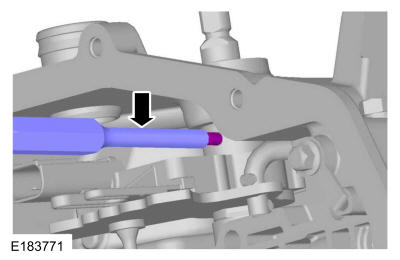

- Install a new TR sensor locking pin. Use the General Equipment: Punch

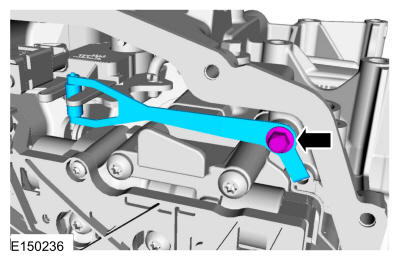

- Install the TR sensor detent spring and the bolt.
Torque: 115 lb.in (13 Nm)

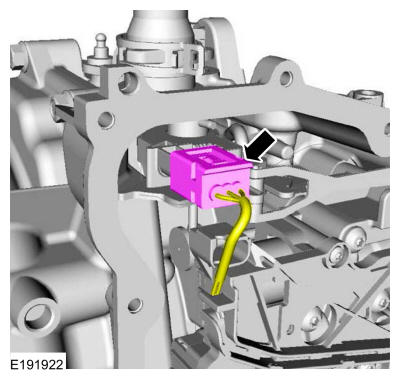

- Connect the TR sensor electrical connector.
- Install the main control cover. Refer to: Selector Lever Cable Adjustment .
-
NOTE: Make sure that when installing the manual control lever it is fully seated onto the manual control lever shaft or damage to the manual control lever shaft will occur and the lever will come loose.NOTE: Make sure to hold the manual control lever while tightening the manual control lever nut or damage to the manual control lever and park components will occur.

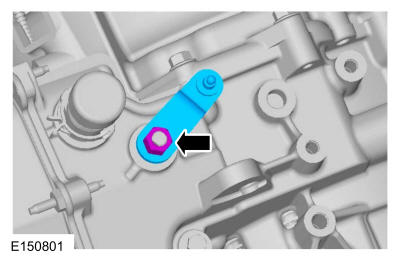

Install the manual control lever and nut.
Torque: 18 lb.ft (24 Nm)

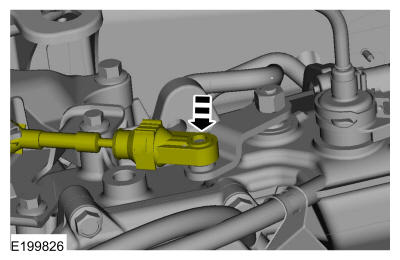

- Connect the selector lever cable end to the manual control lever.
- Adjust the selector lever cable adjustment. Refer to: Main Control Cover .
